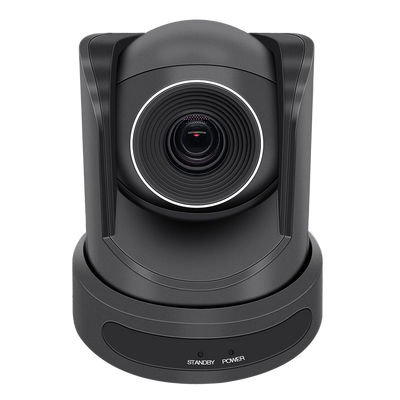

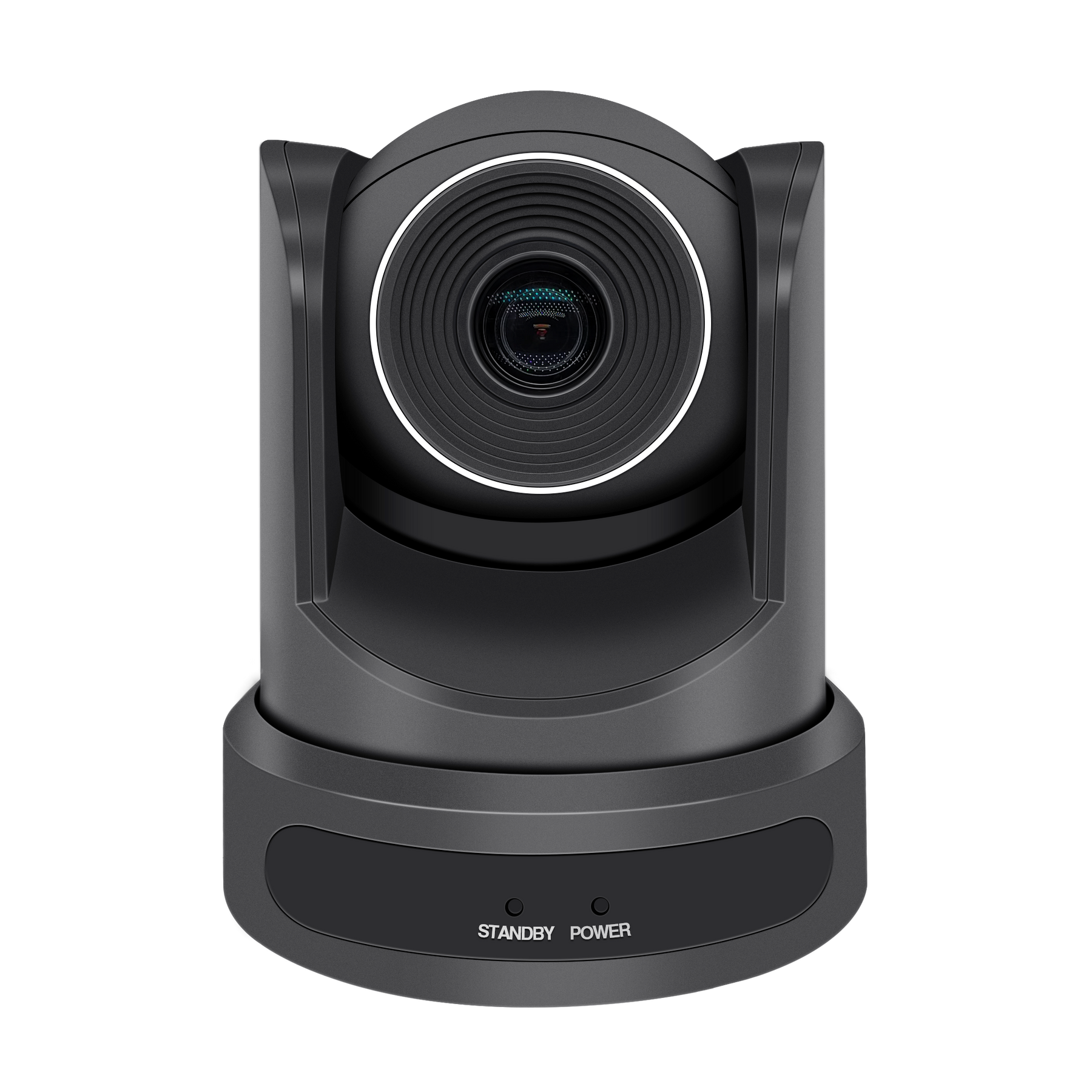

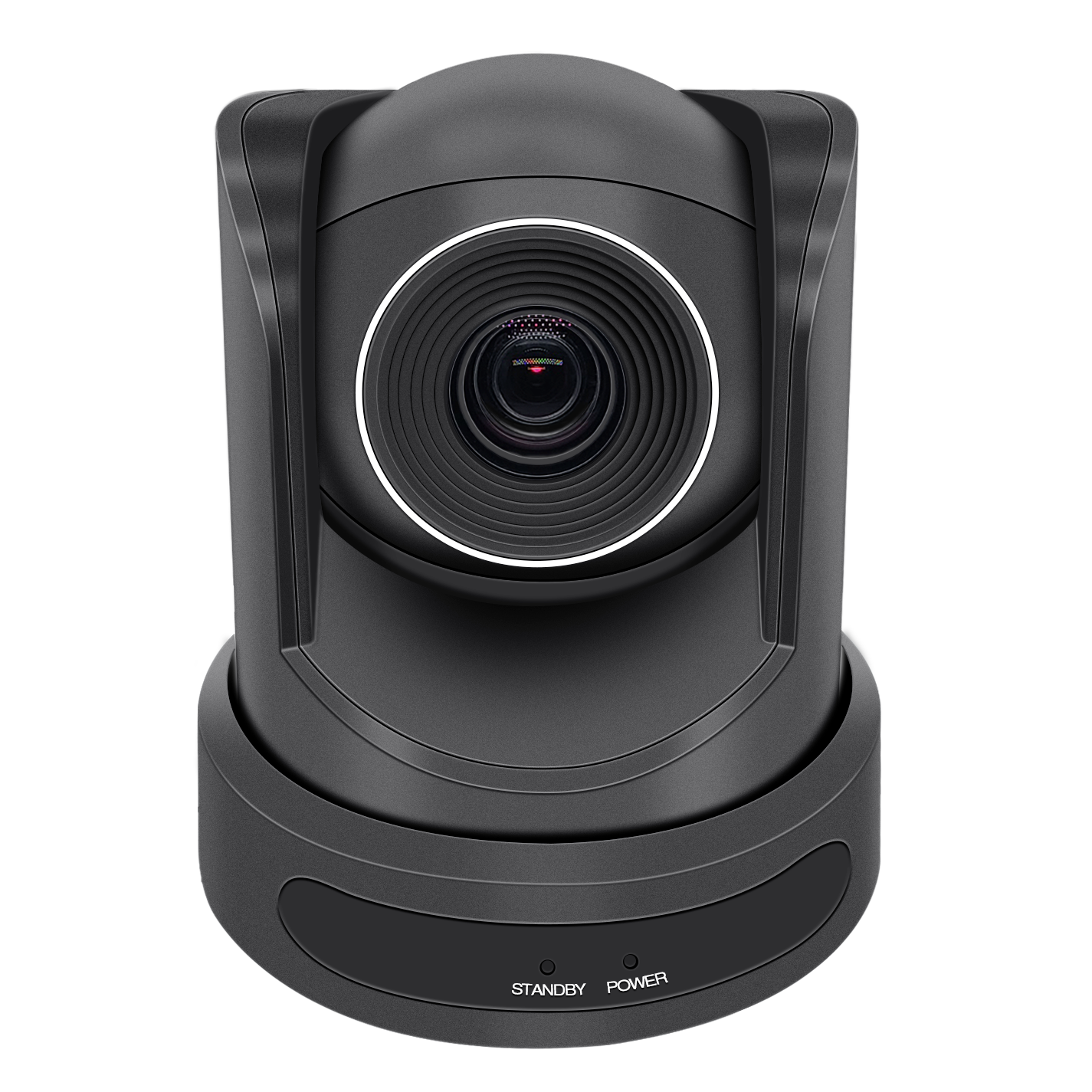

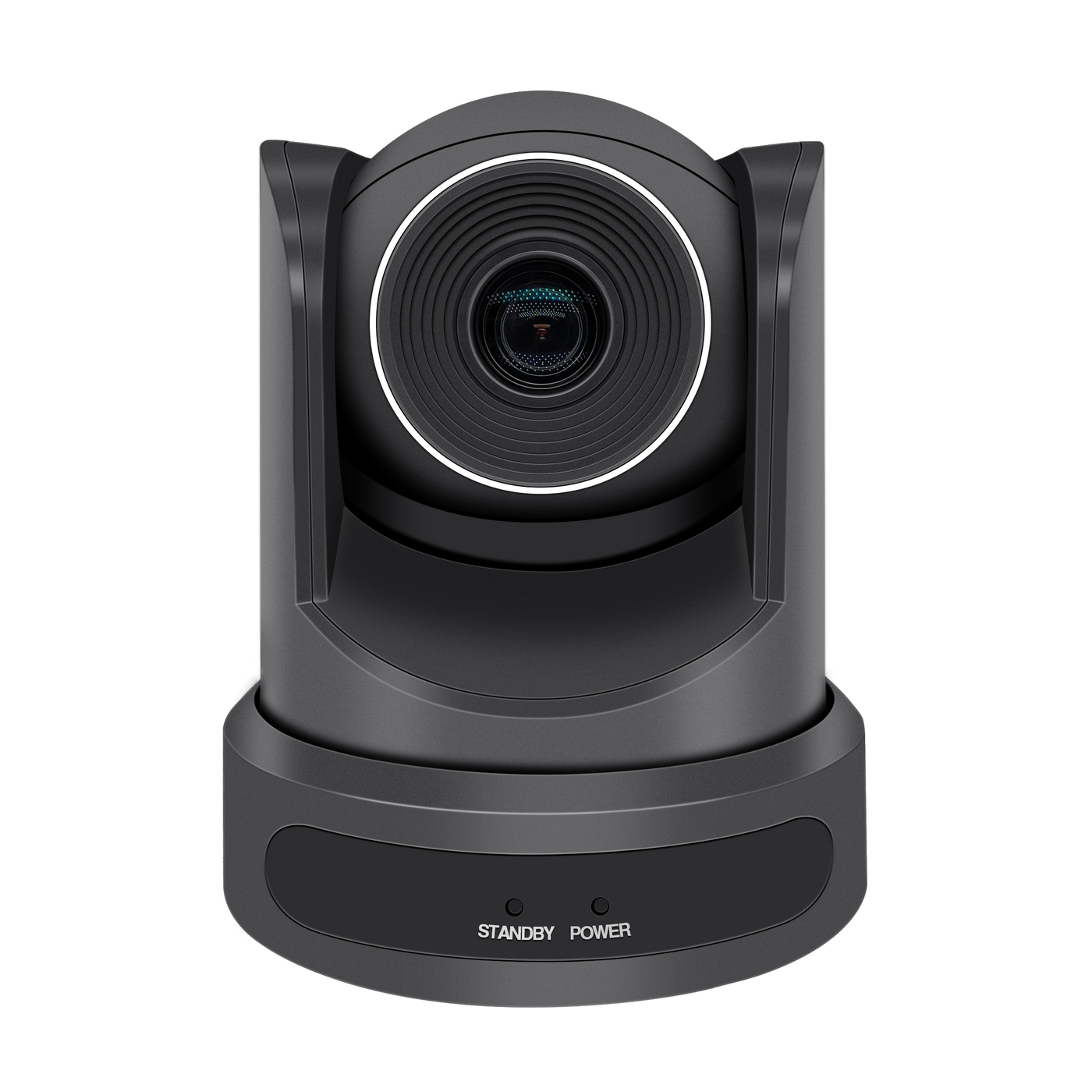

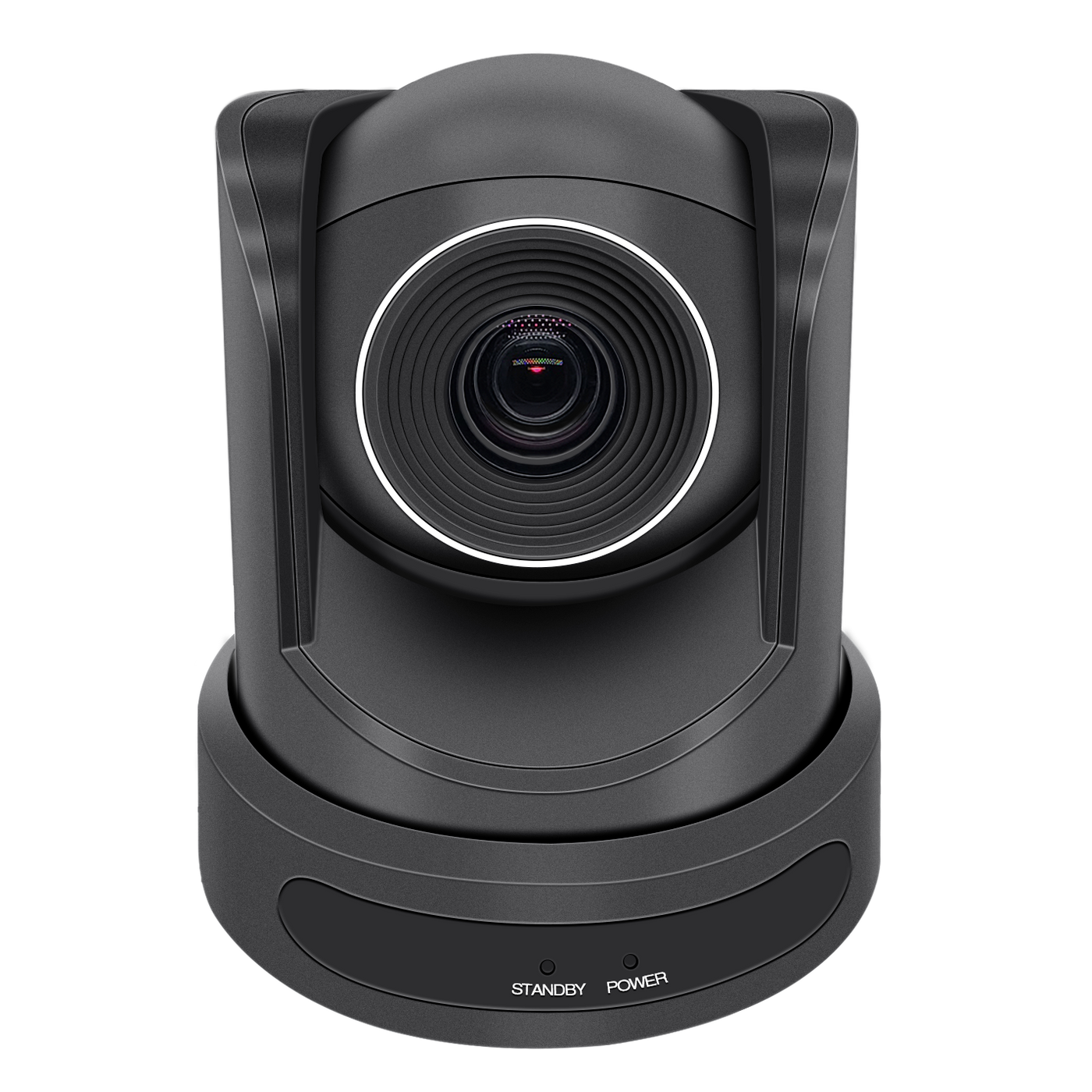

ROCWARE RC20 1080P PTZ USB Camera with 10x Optical Zoom
ROCWARE RC20 1080P PTZ USB Camera with 10x Optical Zoom
ROCWARE RC20 1080P PTZ USB Camera with 10x Optical Zoom
ROCWARE RC20 1080P PTZ USB Camera with 10x Optical Zoom

ROCWARE RC20 1080P PTZ USB Camera with 10x Optical Zoom


Regular price $450.00 Sale price$312.00
Shipping calculated at checkout.

ROCWARE RC20 is a new professional Full HD Broadcast and Conference PTZ Camera.It has 10X lossless optical zoom+16X Digital Zoom with 1/2.7 inch high quality HD CMOS sensor.Support smart auto focus , easy to use.High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm allows it to keep the picture clean and clear in an Low-light environment of 0.5 Lux.And support UVC,VISCA/Pelco-D/Pelco-P protocols etc.Is a cost-effective choice for Live Streaming,Broadcast,Conference,Events,Church and School etc.
  • Free worldwide shipping
  • In stock, ready to ship
  • Inventory on the way

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

High-quality HD CMOS sensor with 2.07 million effective pixels can obtain high-quality images with a resolution of up to 1920x1080.

255 preset positions

255 preset positions can be set, which is convenient for switching the main screen image, avoid manual adjustment.



  • Video System:1080P, 720P, 540P, 480P, 360P, 240P etc. according to different resolution for different color space/compression modes.
  • Sensor:1/2.7'', CMOS, Effective Pixel
  • Scanning Mode:Progressive
  • Lens :10x, f4.7mm ~ 46.3mm, F1.8 ~ F2.8
  • Digital Zoom:16x
  • Minimal Illumination:0.5 Lux @ (F1.8, AGC ON)
  • Shutter:1/30s ~ 1/10000s
  • White Balance:Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
  • Backlight Compensation:Support
  • Digital Noise Reduction:2D&3D Digital Noise Reduction
  • Video S/N:≥55dB
  • Horizontal Angle of View :58.5° ~ 6.5°
  • Vertical Angle of View:35.1° ~ 3.6°
  • Horizontal Rotation Range :±170°
  • Vertical Rotation Range: -30°~ + 90°
  • Pan Speed Range :2.7° ~ 35.7°/s
  • Tilt Speed Range :2.7° ~ 31.5°/s
  • H & V Flip:Support
  • Image Freeze:Support
  • Number of Preset :255
  • Preset Accuracy :0.1°

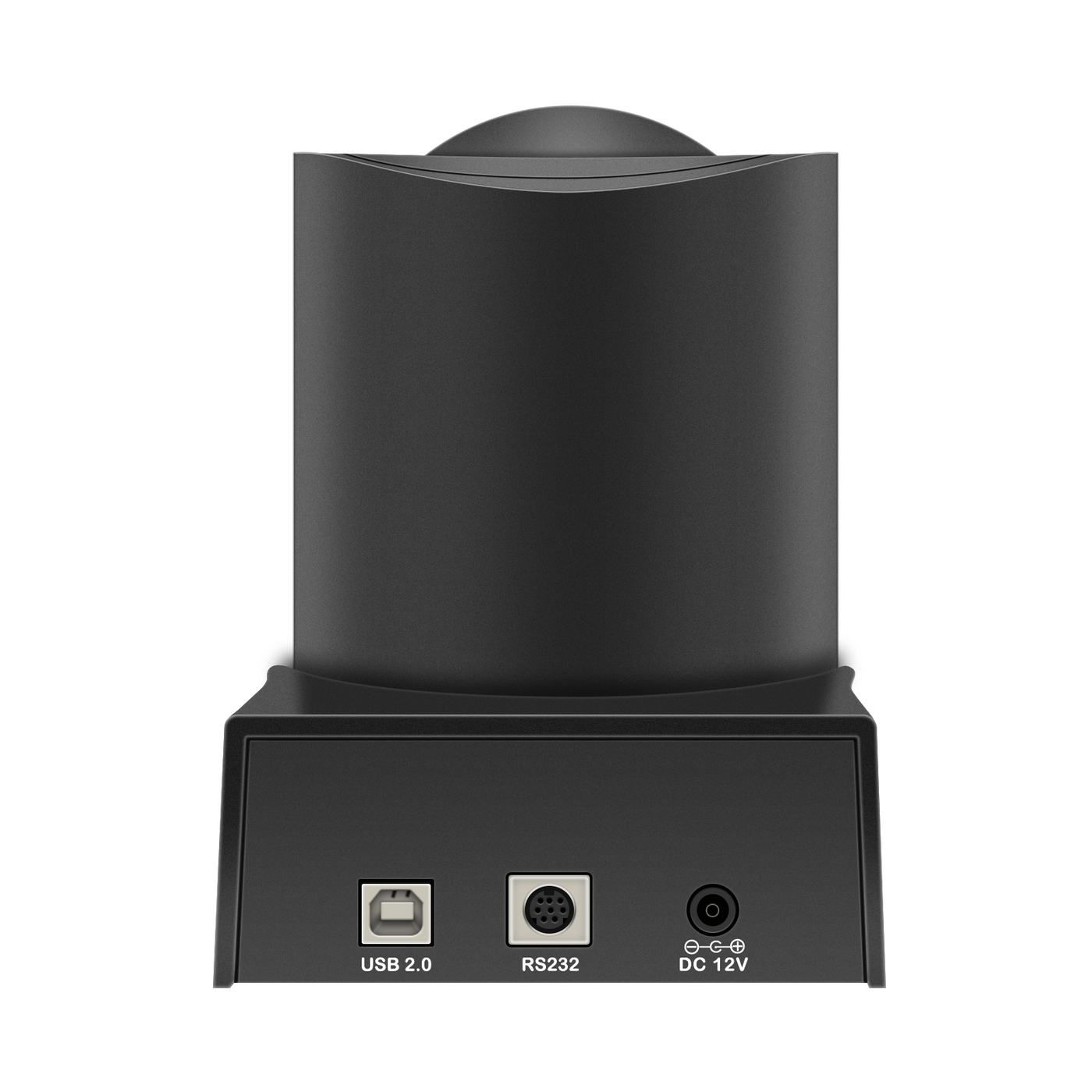

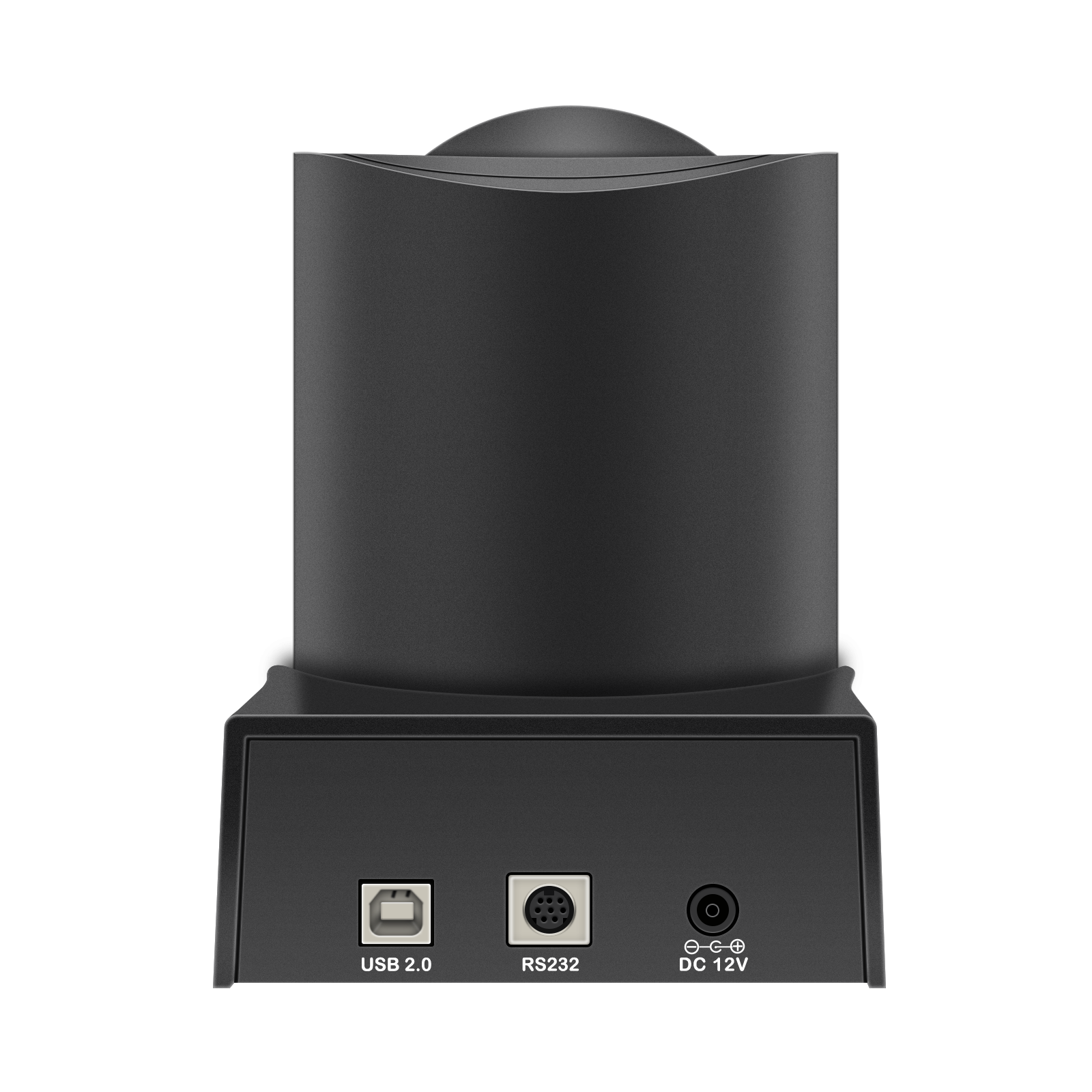

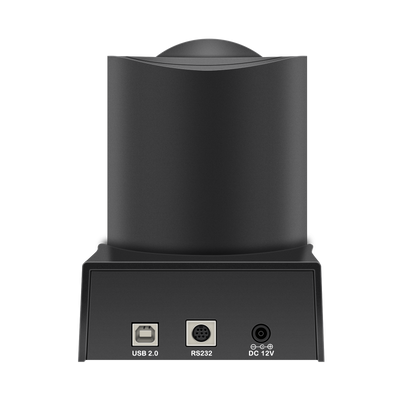

Input/Output Interface

  • USB Interface:1xUSB2.0
  • Communication Interface:1xRS232 In
  • Power Jack:JEITA type (DC IN 12V)/USB B type(DC IN 5V)

USB Featured

  • Operate System:Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
  • Color System / Compression:YUV 4
  • Video Format:H.264 AVC
  • USB Video Communication Protocol:UVC 1.0
  • UVC PTZ:Support

Generic Specification

  • Input Voltage:DC 12V
  • Current Consumption:1.0A (Max)
  • Operating Temperature:-10°C ~ 40°C (14°F ~ 104°F)
  • Storage Temperature:-40°C ~ 60°C (-40°F ~ 140°F)
  • Power Consumption:12W (Max)
  • MTBF:>30000h
  • Size:141.3mm x 153mm x 163.6mm
  • Net Weight:1.153 KG
