Powered by a large 4/3" sensor, optical image stabilization, AI tracking, and professional production interfaces, VX90 is designed for sports broadcasting, live events, houses of worship, studios, and virtual production.
APPLICATIONS
Built for Flexible Production Workflows
Whether deployed as a primary camera, integrated into a multi-camera production, or remotely operated from a centralized control room, VX90 adapts to the way modern productions are built.
Sports Broadcasting
Capture fast-moving action with precise tracking, smooth stabilization, and detailed 4K imaging.
Live Events & Concerts
Deliver dynamic stage coverage with intelligent framing and long-range zoom performance.
Houses of Worship
Capture services, performances, and special events with minimal operator intervention.
Virtual Production
Integrate seamlessly into XR and virtual studio workflows with Free-D support.
Broadcast-Quality Imaging
Designed to Perform Under Real-World Lighting
The large 4/3" UHD CMOS sensor delivers exceptional detail, natural color reproduction, and improved dynamic range across challenging lighting environments.
Whether capturing brightly lit stages, indoor arenas, or mixed-light venues, VX90 maintains clarity and consistency throughout the production.
STABILIZATION
Stay Steady
at Every Zoom Level
Designed for demanding production environments, VX90 features a newly upgraded Optical Image Stabilization (OIS) system that delivers smoother, more stable footage when it matters most.
Whether capturing distant athletes, fast-moving performers, or long-range stage shots, VX90 helps maintain steady, broadcast-ready video throughout the production.

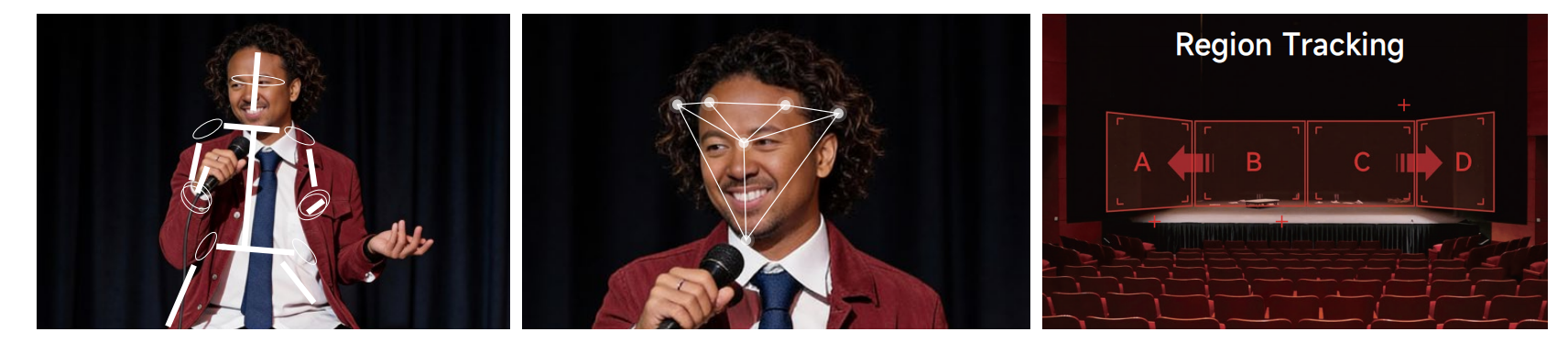

AI TRACKING
Follow the Action Automatically
VX90 intelligently tracks presenters, performers, and athletes with smooth, reliable accuracy. By combining facial recognition, motion analysis, and appearance-based tracking, the camera keeps subjects centered and in focus—even in complex production environments.
Professional 20x Optical Zoom
Consistent 4K Clarity from Wide to Close
A 71° wide field of view captures the full scene, while 20x optical zoom brings distant subjects closer without compromising image quality.
From wide-field coverage to detailed close-ups, VX90 maintains consistent 4K clarity across the entire zoom range.
Integrated ND Filters
Ready for Changing Light
With integrated ND 1/4, ND 1/16, and ND 1/64 filters, VX90 maintains optimal exposure across a wide range of lighting environments—reducing the need for manual adjustments during live productions.
Multi-Protocol Compatibility
Flexible Connectivity
Supports NDI HX2, Dante AV-H, SRT, RTSP, RTMP(S), TCP/IP, and HTTP(S) for seamless integration into IP-based production and AV workflows.
Enables low-latency, high-quality video transmission across live production and AV over IP environments.

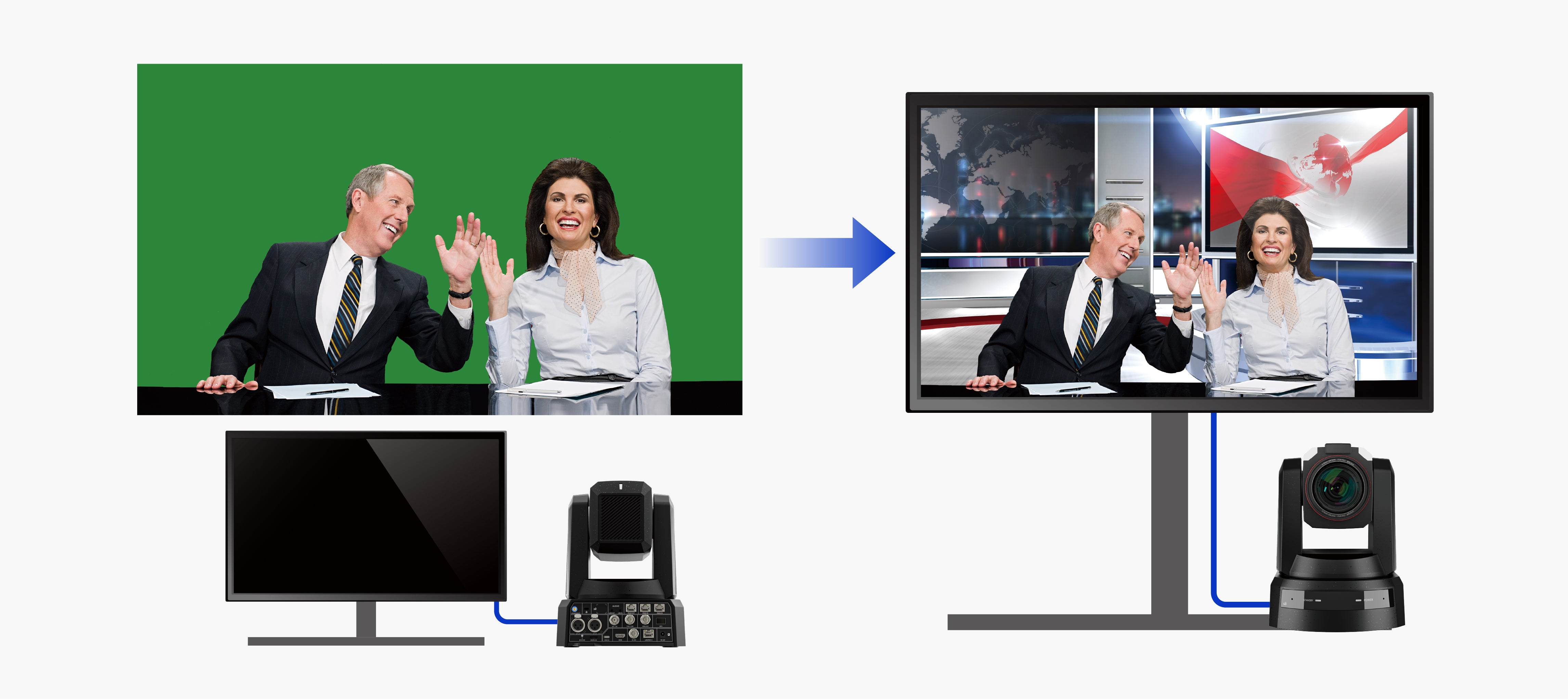

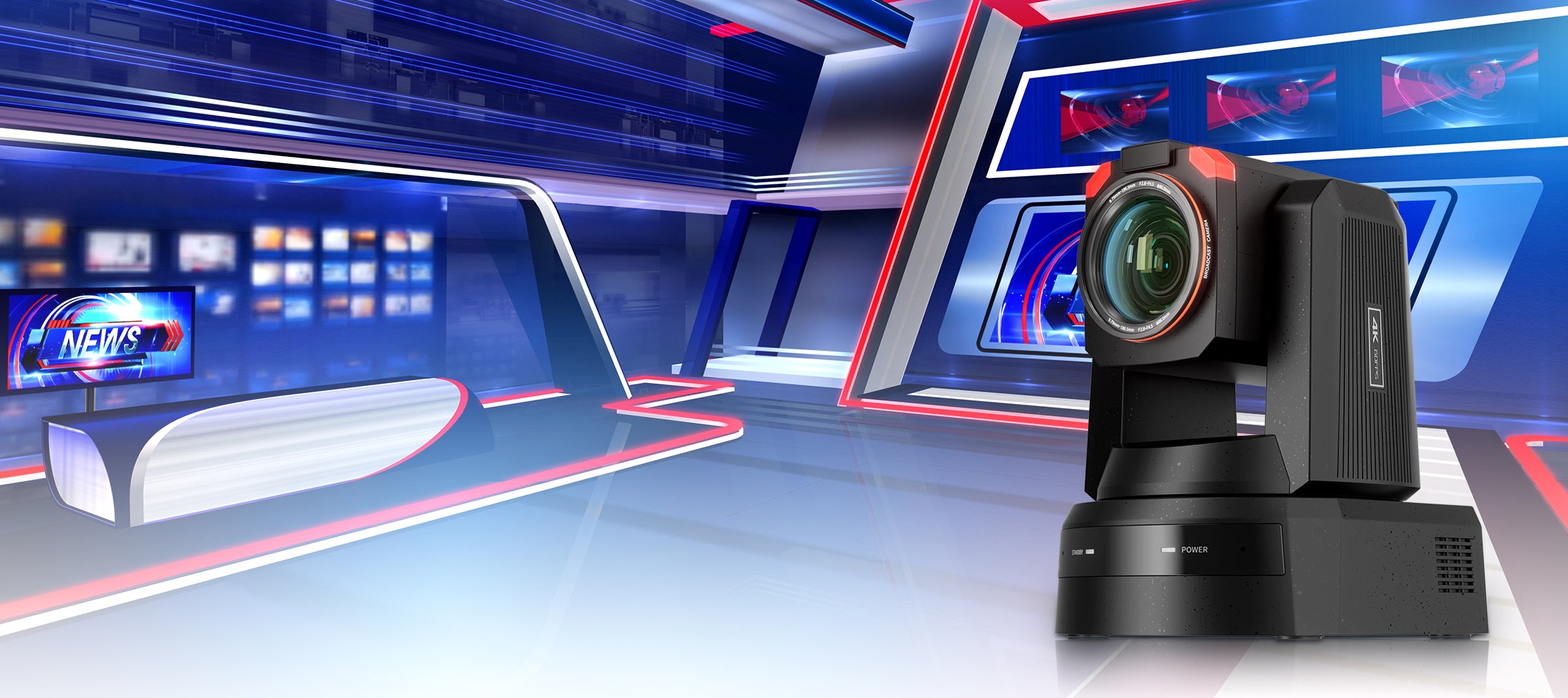

Virtual Production Ready
Bring Reality Into Virtual Worlds
Free-D tracking support enables accurate camera data output for integration with virtual production and XR systems.
Seamlessly combine live video with 3D virtual environments in real time.

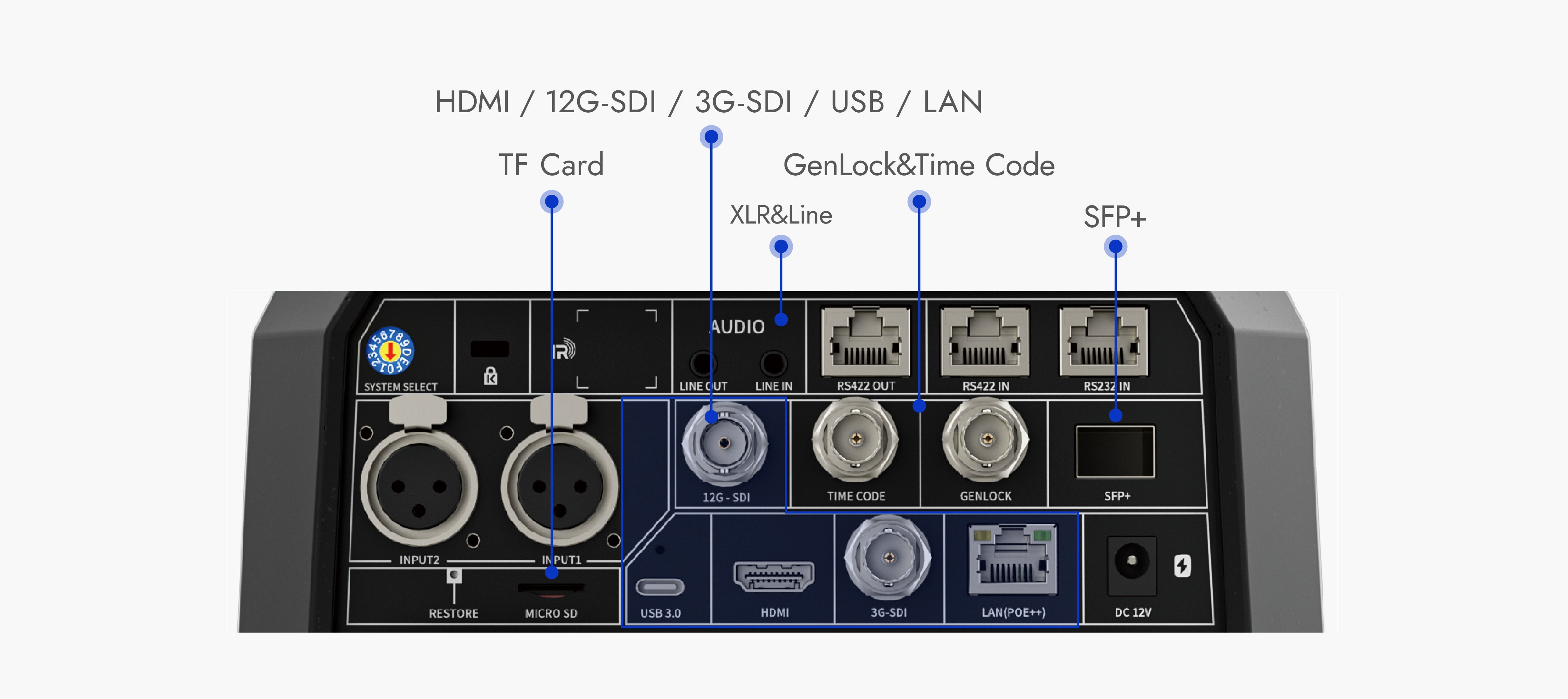

Multiple Interfaces
Production-Ready Connectivity
VX90 features HDMI, SDI, USB, LAN, and fiber optic outputs for flexible integration across professional production environments. It supports simultaneous multi-device output, local recording via TF card, and precise synchronization through Genlock, making it easy to integrate into switching systems, streaming setups, and broadcast workflows.

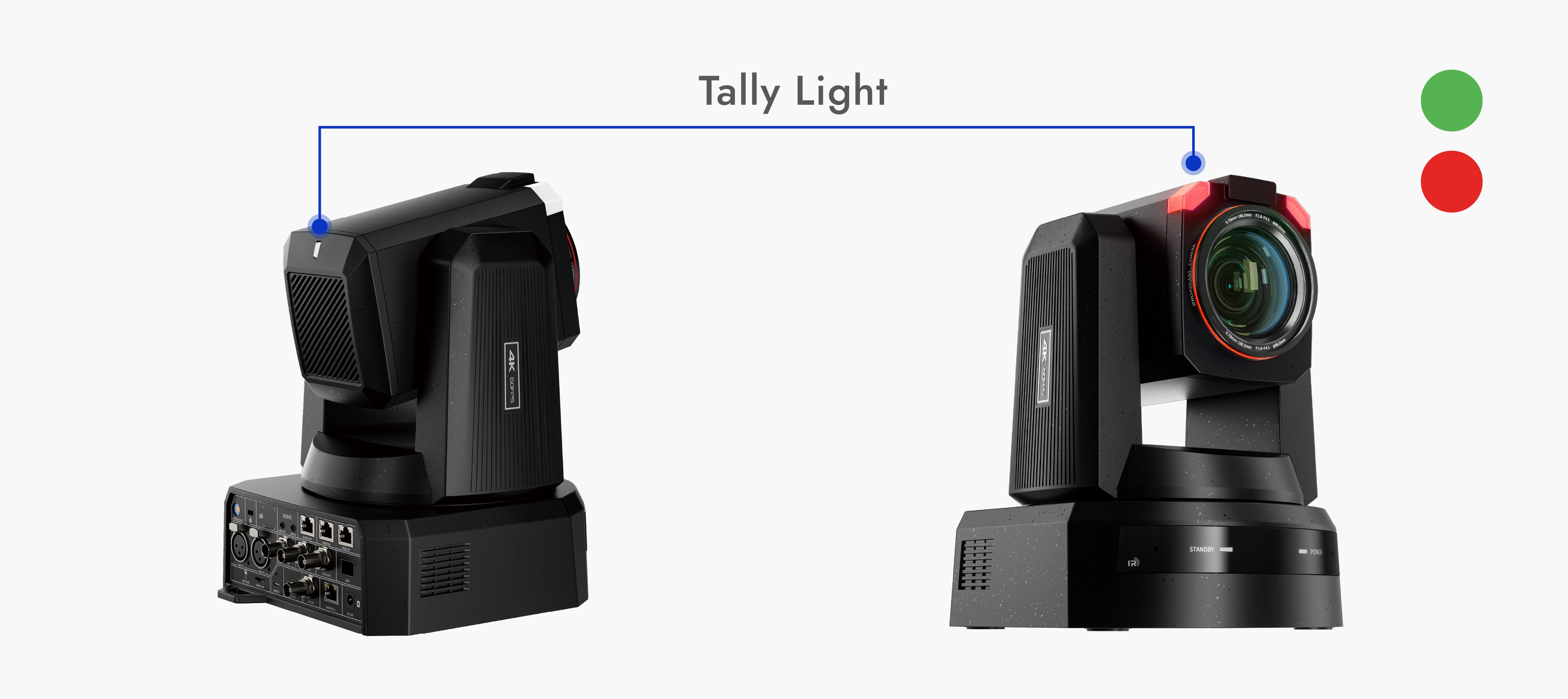

Front & Rear Tally Indicators
Stay in Sync.
On Every Shot.
Front and rear red/green tally indicators provide real-time on-air status visibility across all roles in the production chain. Helping talent, operators, and crew stay aligned during live production workflows.
See VX90 in Action
Experience how broadcast-grade imaging, intelligent tracking, and professional connectivity come together in real-world production environments.
Tech Specs
CAMERA
Video Resolution
HDMI/12G-SDI: 4KP60, 4KP59.94, 4KP50, 4KP30, 4KP29.97, 4KP25, 4KP24, 4KP23.98, 1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25, 1080P24, 1080P23.98, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94
3G-SDI: 1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25, 1080P24, 1080P23.98, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94
Sensor 4/3-inch, CMOS, Effective Pixels: 20 MP
Scanning Mode Progressive
Lens 20X, f 9.79mm ~ 186.5mm, F2.8 ~ F4.5
Digital Zoom 16X
Minimum Illuminance 0.5Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
ND Filter Built in (OFF、1/4、 1/16、1/64)
Image Stabilization Default configuration features EIS, with optional OIS available
White Balance Auto, Indoor, Outdoor, One Push, Manual, VAR, specified color temperature
Backlight Compensation Support
Digital Noise Reduction 3D Digital Noise Reduction
Video S/N ≥ 55dB
HFOV 71° ~4.05°
VFOV 39.6° ~ 2.2°
Horizontal Rotation Range ±172°
Vertical Rotation Range -30° ~ +120°
Pan Speed Range 0.1° ~ 80° /s
Tilt Speed Range 0.1° ~ 60° /s
Image Flip & Freeze Support
PoE+ Support
Number of Preset 255
Preset Accuracy 0.1°
NETWORK SPEC
Video Compression H.264 / H.265 / MJPEG
Video Stream First Stream, Second Stream
First Stream Resolution 3840x2160, 1920x1080, 1280x720, 1024x576 etc.
Second Stream Resolution 720x576, 720x480, 320x240 etc.
Video Bit Rate 32kbps~81920kbps
Bit Rate Type CBR, VBR
Frame Rate P50: 1fps~50fps, P60: 1fps~60fps
Audio Compression AAC
Audio Bit Rate 96Kbps, 128Kbps
Support Protocols
NDI®|HX3, Dante AV-H, Free-D, SRT, TCP/IP, HTTP(S), RTSP, RTMP(S), Onvif, DHCP, Multicast, etc.
USB FEATURES
Operating System Windows 7/8/10, macOS, Linux, Android
Color System/Compression YUY2 / H.264 / MJPEG / H.265
Video Format
YUY2: Max.1440P30
H.264 AVC: Max.2160P60
H.265 HEVC: Max.2160P60
MJPEG: Max. 2160P60
USB Audio Support
USB Video Class (UVC) UVC 1.1
UVC PTZ Control Support
INPUT/OUTPUT INTERFACE
HD Output
1 x HDMI: 2.0
1 x 12G-SDI: BNC type, 800mVp-p, 75Ω, Comply with SMPTE 2082-1 standard
1 x 3G-SDI: BNC type, 800mVp-p, 75Ω, Comply with SMPTE 424M standard
Genlock Interface 1 x BNC type，75Ω，Input only
Timecode Interface 1 x BNC type，75Ω，Input only
Network Interface 1 x RJ45: 10M/100M/1000M adaptive thernmet
Audio Interface
1 x Line In, 3.5mm Audio Interface;
1 x Line Out, 3.5mm Audio Interface;
2 x Badaptive ethernet，XLR interface；
2 x Mic input.
USB Interface 1 x USB3.0, Type-C type
Communication Interface
1 x RS232 In:
RJ45, VISCA/Pelco-D/Pelco-P protocal;
1 x RS485/422 in:
RJ45, VISCA/Pelco-D/Pelco-P protocal;
1 x RS422 out:
RJ45, VISCA/Pelco-D/Pelco-P protocal.
SD Card 1 Micro SD
Restore Button Support
Power Interface JEITA type（DC IN 12V)
Optional I/O
1 x RJ45: FULL NDI；
1 x RJ45: Dante AV Ultra;
1 x RJ45: HDBaset；
1 x SFP+: ST2110；1 x SFP+: SDVOE
COLLAPSIBLE ROW
Installation Head-up, Head-down(ceiling)
TALLY Light 3 (Red and Green Dual-color)
Power Indicator 1 (Blue)
Status Indicator 2 (Green, Red）
IR Remote Control Support
Input Voltage DC 12V / POE ++
Input Current 5A（Max.）
Dimensions (W x D x H) 205 × 237 × 272mm
Weight 4.8kg
