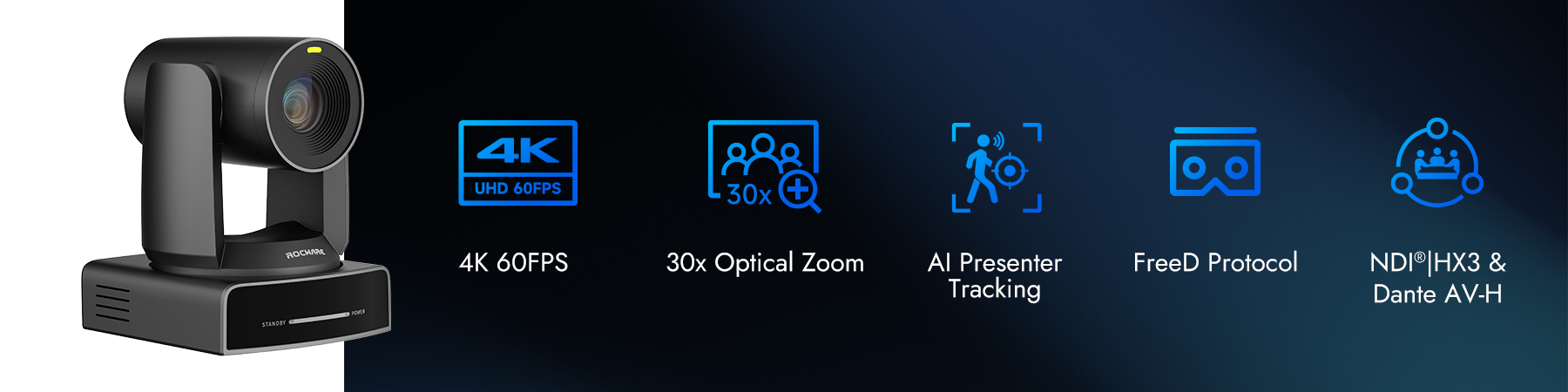

Designed for Every Professional Production
From executive presentations to university lectures and live productions, RC630 delivers broadcast-quality imaging and intelligent tracking for environments where every detail matters.

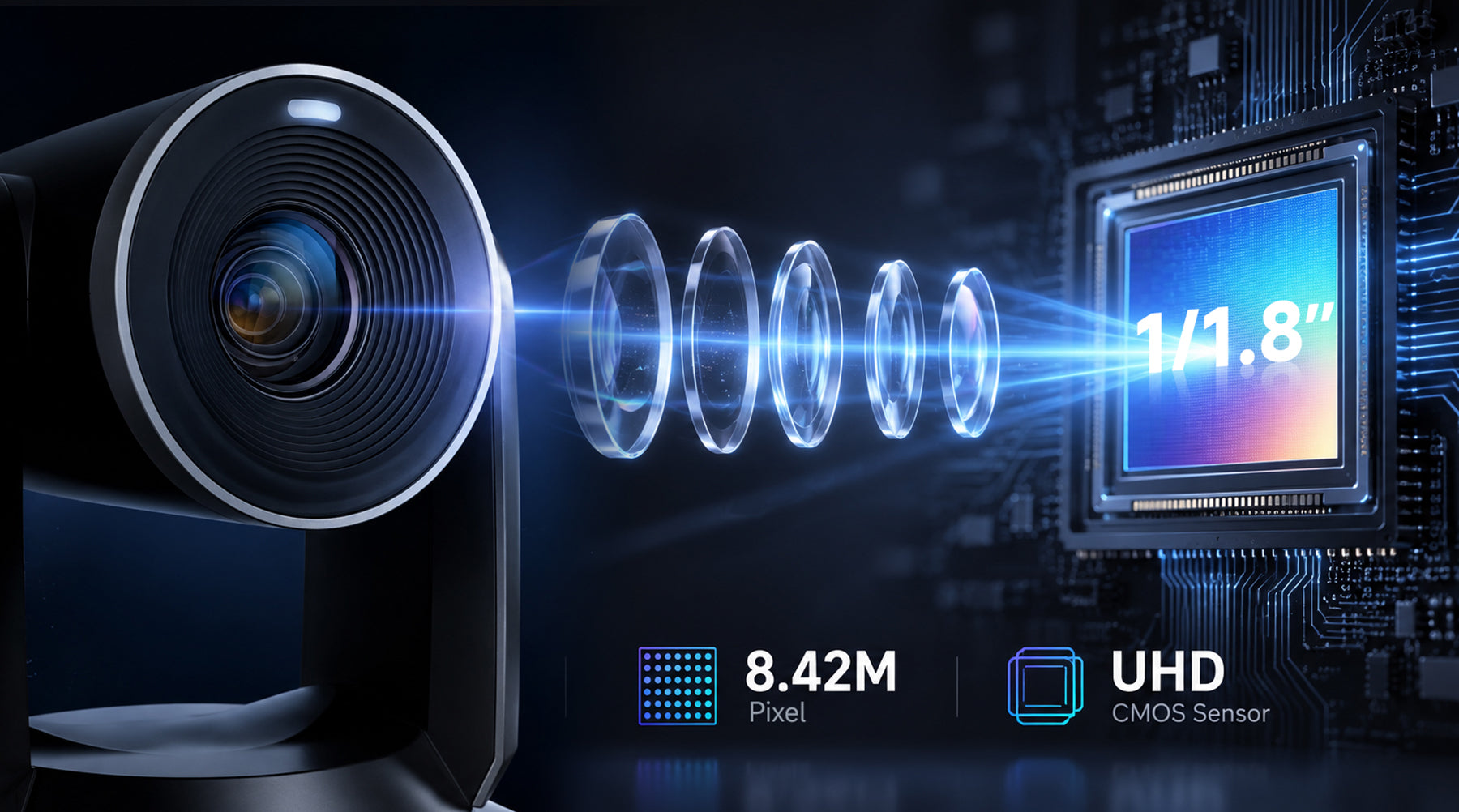

4K Ultra HD up to 60 fps
Ultra-Smooth Video. Broadcast-Level Clarity.
Powered by a 1/1.8-inch 8.42 MP CMOS sensor, RC630 captures exceptionally sharp 4K Ultra HD video at up to 60 fps. Every presentation, lecture, and production benefits from lifelike color, crisp details, and fluid motion, while full compatibility with 1080p and 720p ensures seamless integration into existing workflows.

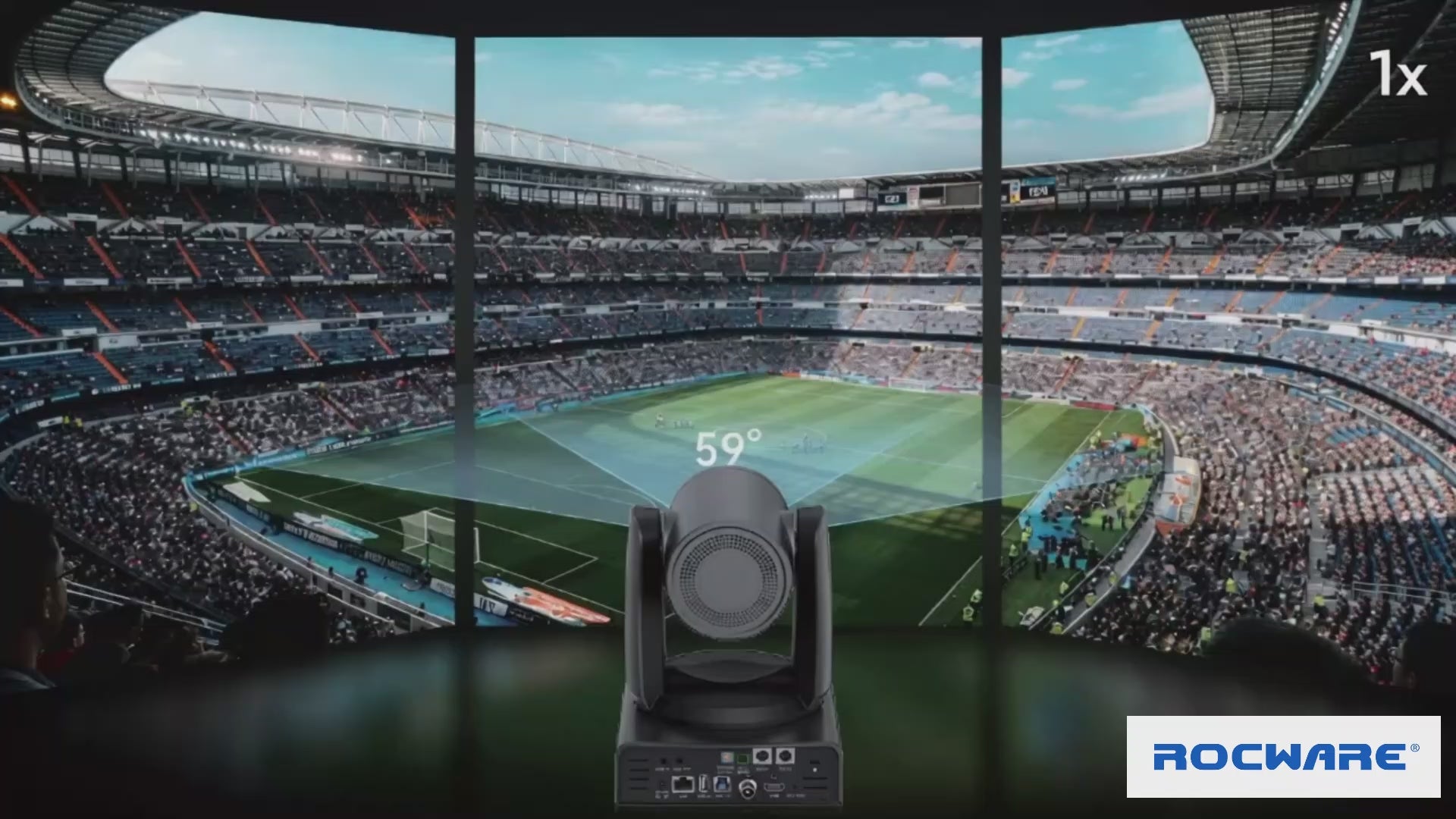

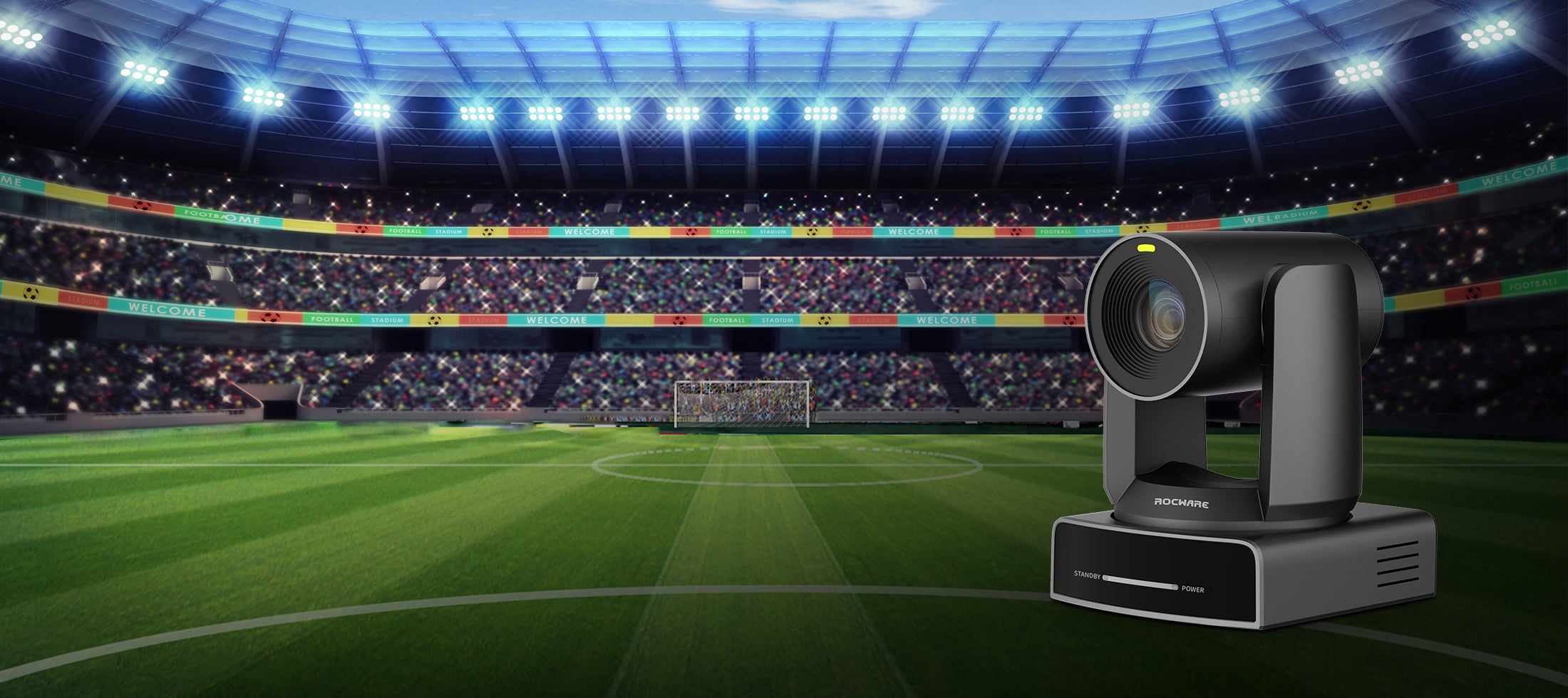

30× Optical Zoom
Every Play. Every Detail.
Capture the full game with confidence. From wide field coverage to tight action close-ups, RC630's 30× optical zoom delivers sharp, detailed 4K images across every shooting distance.

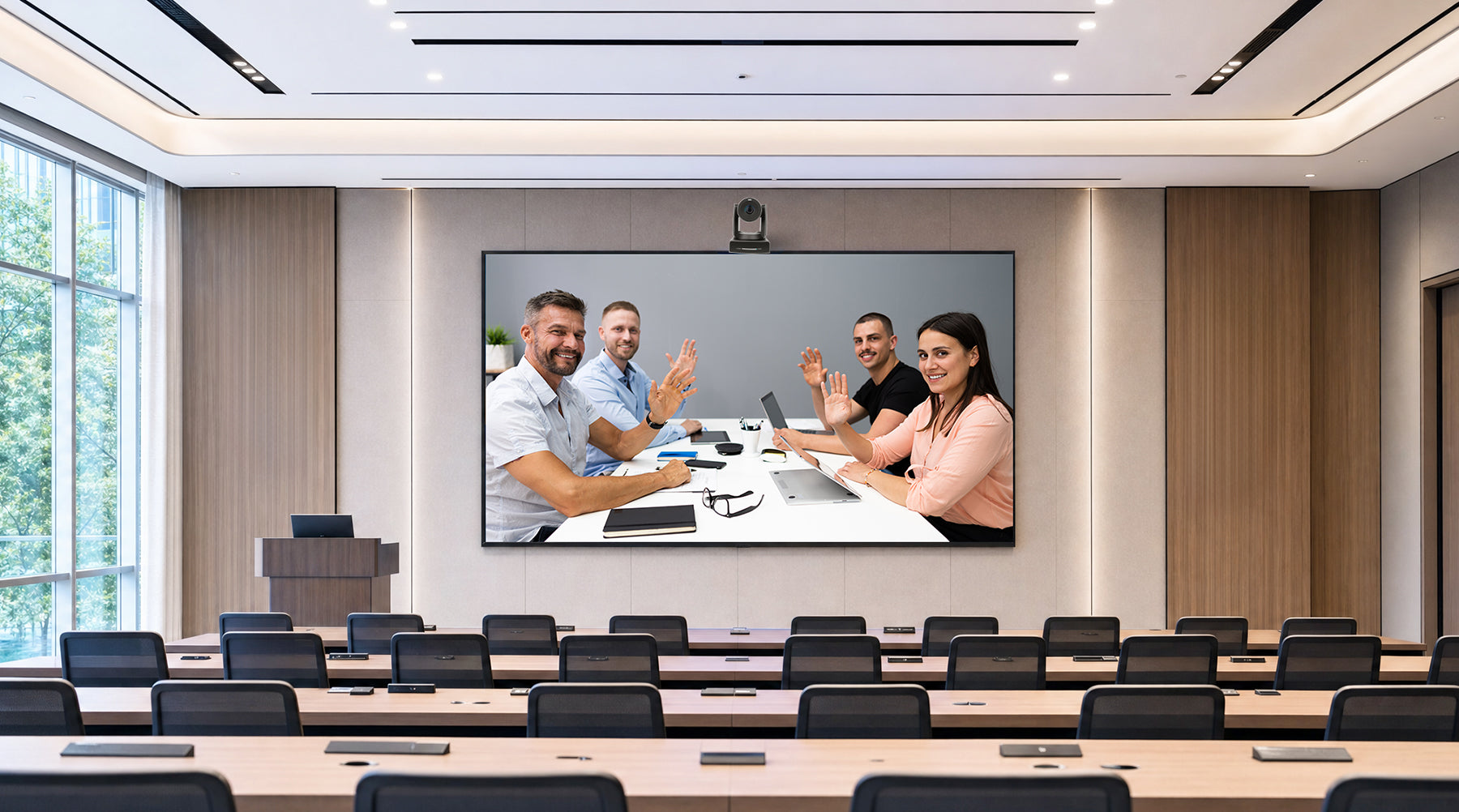

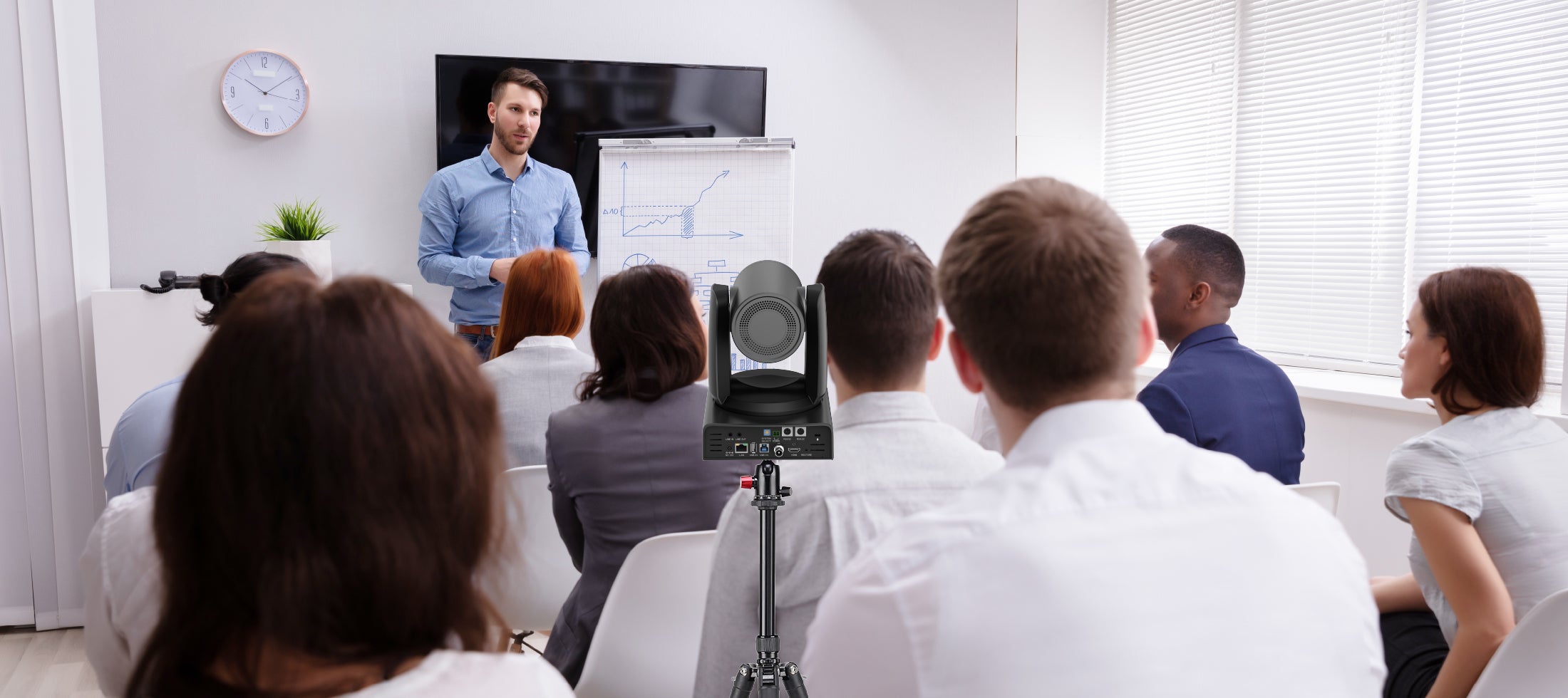

Smart ReID Target Lock
AI That Never Loses the Speaker.
RC630 uses Rocware's ReID technology to recognize presenters and keep them in frame automatically. If the subject is briefly blocked or moves out of view, tracking resumes as soon as they reappear.

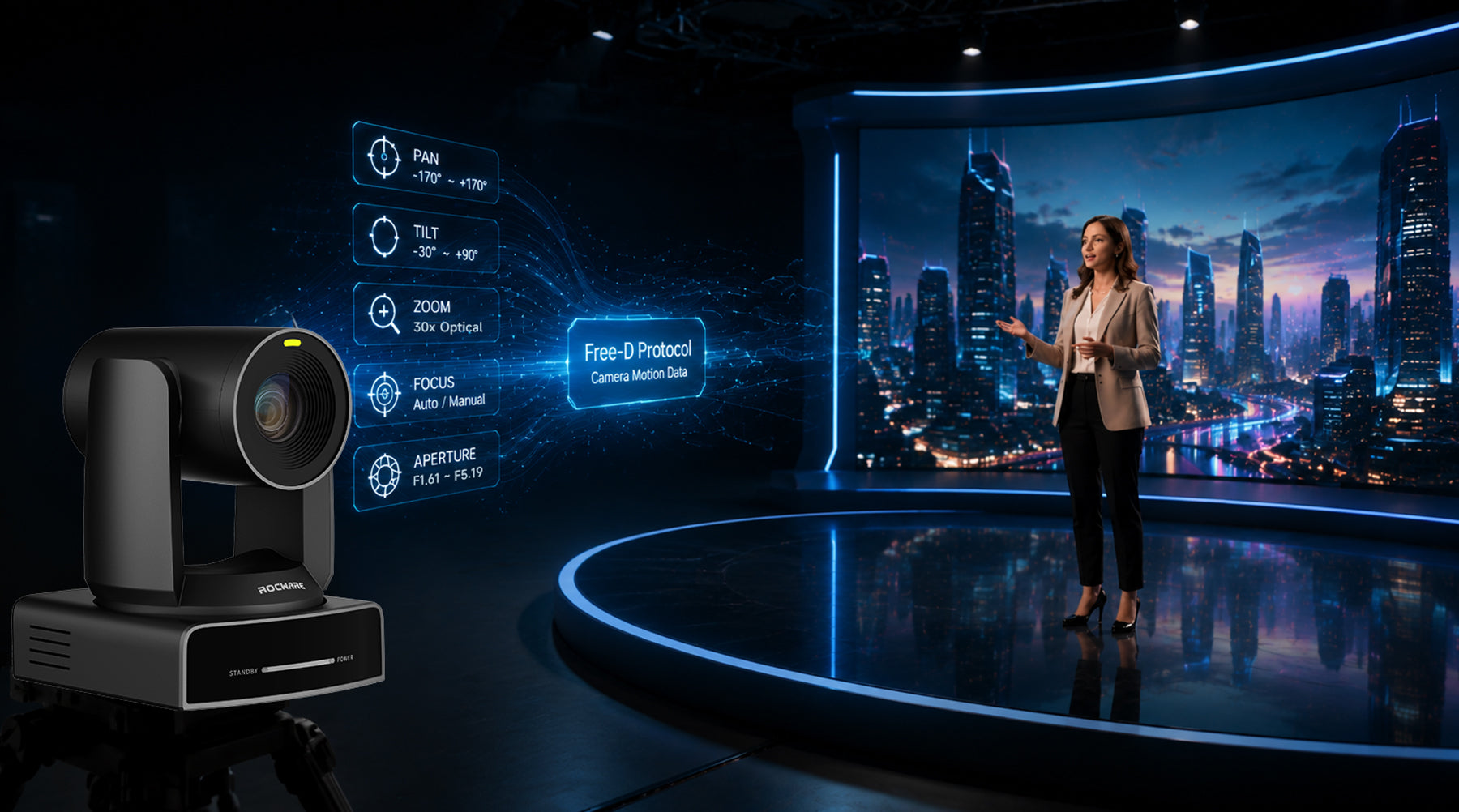

FreeD Protocol
Ready for Virtual Studios.
RC630 supports the FreeD protocol, delivering precise camera tracking data for seamless integration with virtual production workflows and 3D environments.
Professional IP Workflows
Connect Without Compromise
Dante AV-H Support
Built for Scalable AV Networks.
Support for Dante AV-H enables real-time video transmission over standard Ethernet with centralized device management and flexible routing, making large-scale AV deployments easier to manage and expand.

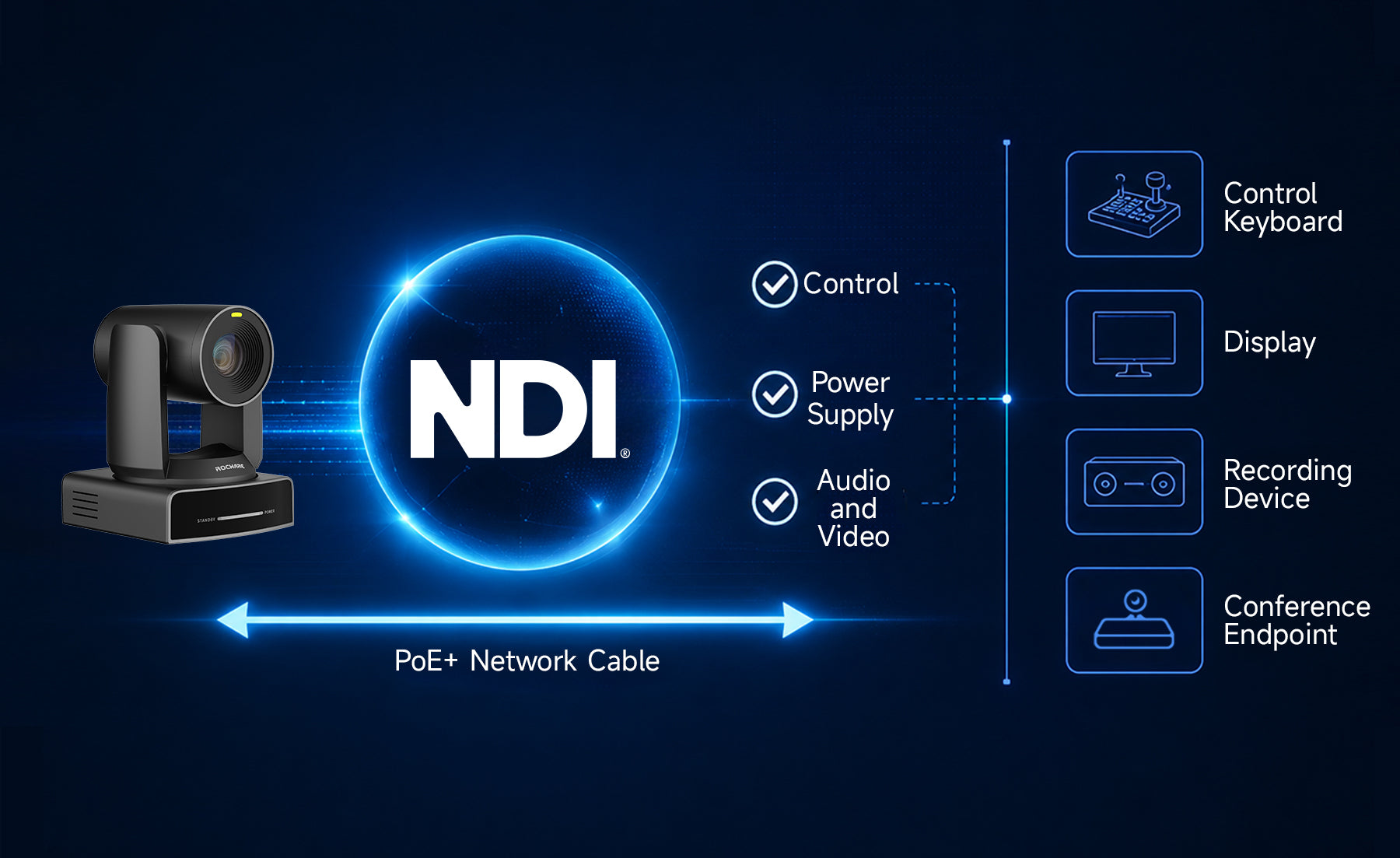

NDI®|HX3 Support (optional)
Simplify IP Video Workflows.
Transmit high-quality video, audio, and control over a single network connection with NDI®|HX3. Enjoy low-latency performance, simplified deployment, and seamless integration into IP-based production environments.

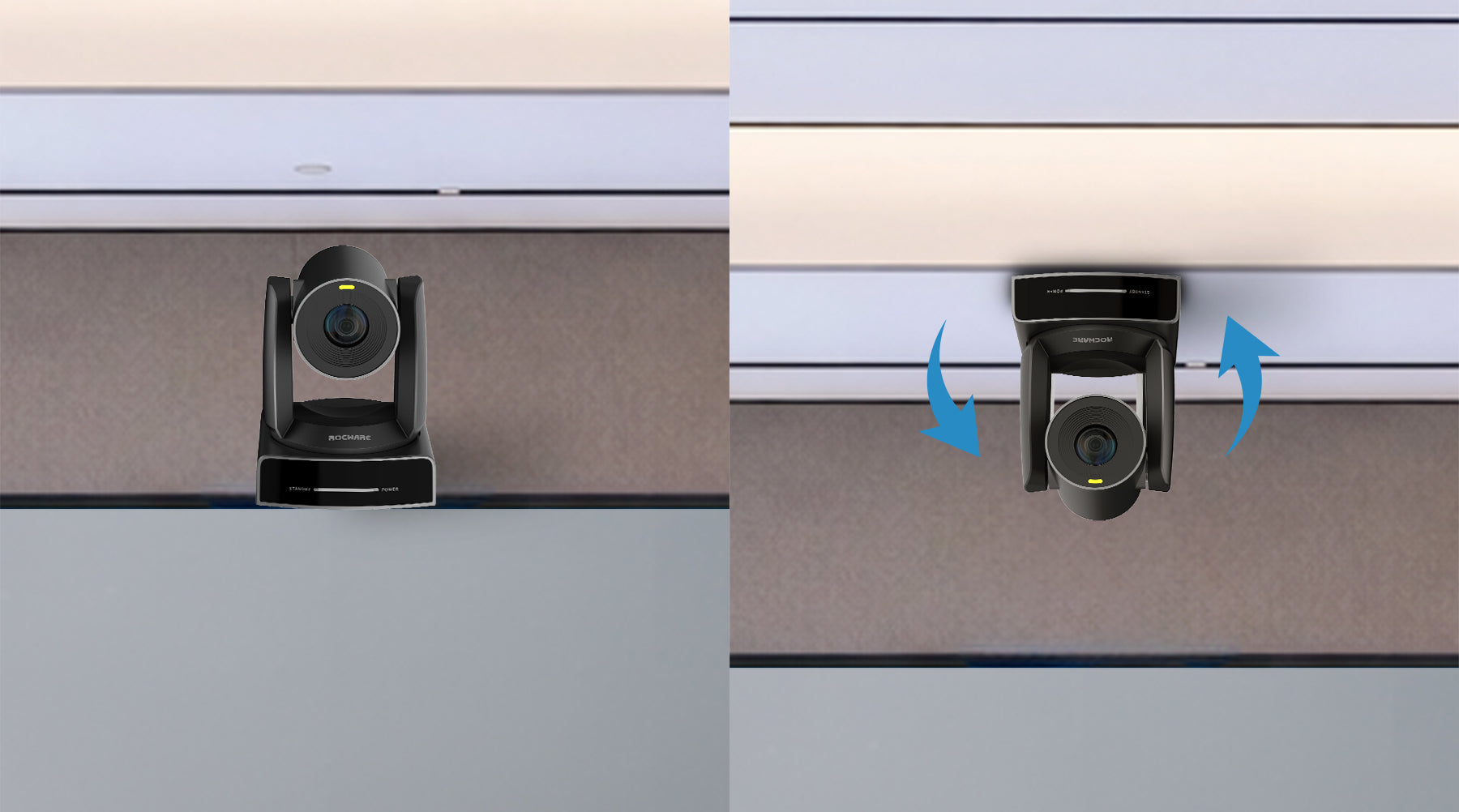

Flexible Installation & Auto Image Flip
Ready for Any Installation.
A built-in gravity sensor automatically detects the camera's orientation and adjusts the image accordingly, ensuring correctly oriented video whether installed upright or ceiling-mounted.
Flexible Camera Control
Designed for Professional Control.
Control RC630 through RS232, RS485, Ethernet, or USB, making it easy to integrate into existing AV control systems and production workflows.

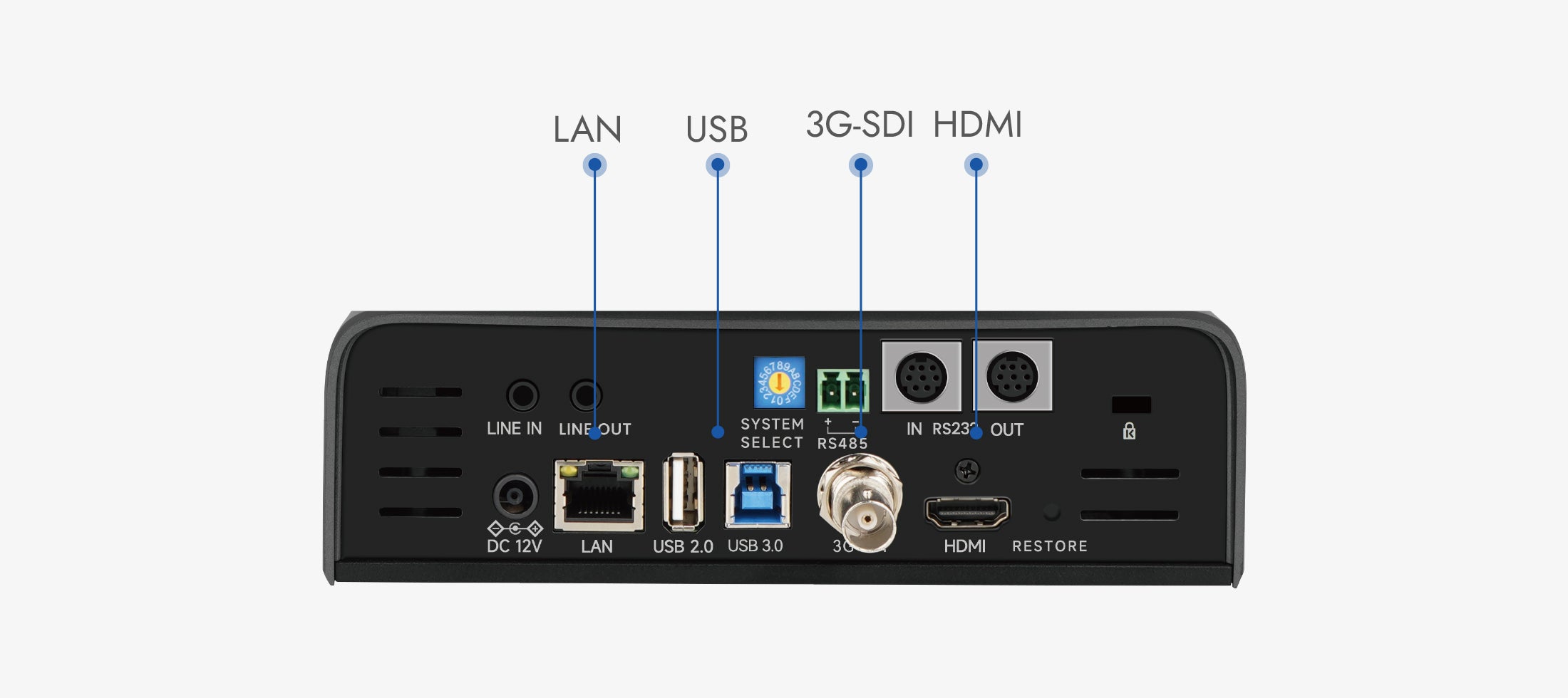

Multiple Interfaces
Connect to Every Workflow.
With HDMI 2.0, 3G-SDI, USB, Ethernet, audio, and control interfaces, RC630 integrates easily into a wide range of AV systems and production workflows.
Tech Specs
INPUT/OUTPUT INTERFACE
Video Interface
1 x HDMI: Version 2.0;
1 x 3G-SDI: BNC , 800mVp-p, 75Ω, as per SMPTE 424M
standard
Network Interface 1 x RJ45: 10/100/1000 Mbps adaptive Ethernet
Audio Interface 1 x LINE IN: 3.5mm Jack
1 x LINE OUT: 3.5mm Jack
USB Interface 1 x USB2.0, Type-A
1 x USB3.0, Type-B
Control Interface
1 x RS485: 2pin phoenix port, Max Distance: 1200m,
Protocol: VISCA / Pelco-D / Pelco-P;
1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m,
Protocol: VISCA / Pelco-D / Pelco-P;
1 x RS232 OUT: 8pin Mini DIN, Max Distance: 30m,
Protocol: VISCA only
Restore Button Supported
Power Interface JEITA type (DC IN 12V)
CAMERA SPEC
Signal Format
HDMI
4Kp60/50/59.94/30/25/29.97fps,
1080p60/50/59.94/30/29.97fps,
1080i60/50/59.94fps, 720p60/59.94fps
3G-SDI
1080p60/50/59.94/30/29.97/25fps,
1080i60/50/59.94fps, 720p60/59.94fps
Sensor 1/1.8-inch, CMOS, Effective Pixels: 8.42 MP
Scanning Mode Progressive
Lens 30x, f=7.1mm ~ 210mm, F1.61 ~ F5.19
Digital Zoom 16x
Minimum Illumination 0.5Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance Auto, Manual, Indoor, Outdoor, One-Push, VAR
Backlight Compensation Supported
Digital Noise Reduction 3D Digital Noise Reduction
SNR ≥55dB
HFOV 59.2° ~ 2.5°
VFOV 34.6° ~ 1.4°
PTZ SPEC
Pan Angle Range ±170°
Tilt Angle Range -30° ~ +90°
Pan Speed Range 1.7° ~ 100°/s
Tilt Speed Range 1.7° ~ 69.9°/s
Image Flip & Freeze Supported
Number of Preset 255
Preset Accuracy 0.1
USB SPEC
Operating System
Windows 7 (only supports UVC1.1 features), Windows 8 and above version, macOS, Linux 2.4.6 and above version, Android needs to include the version of UVC-related drivers
Video Codecs YUY2 / H.264 / MJPEG
Video Format
YUY2: Max.1080p30(USB3.0)；
H.264 AVC: Max.2160p30；
MJPEG: Max.2160p30
USB Audio Class Supported
USB Video Class UVC 1.1~1.5
USB PTZ Control Supported
NETWORK SPEC
Video Codecs H.265 / H.264 / MJPEG
Video Stream Main Stream, Sub Stream
Main Stream Resolution 3840x2160, 1920x1080, 1280x720, 1024x576 etc.
Sub Stream Resolution 720x480, 320x240 etc.
Video Bit Rate Main Stream: 32kbps~51200kbps
Sub Stream: 32kbps~20480kbps
Bit Rate Control VBR, CBR
Frame Rate 50Hz: 1fps~50fps, 60Hz:1fps~60fps
Audio Codecs AAC
Audio Bit Rate 96kbps，128kbps
Protocol Dante AV-H, NDI®
|HX3, SRT, TCP/IP, HTTP, RTSP,
RTMP(S), ONVIF, DHCP, Multicast, FreeD, etc.
* NDI® is available as an optional licensed feature and is not included by default.
