Wide-range Audio Pickup
The all-in-one machine is equipped with four digital microphones arranged in an array and uses audio automatic gain control
algorithms to achieve clear and natural audio pickup within a range of six meters. Regardless of where the meeting participants are speaking, remote participants can hear clear and consistent voices.

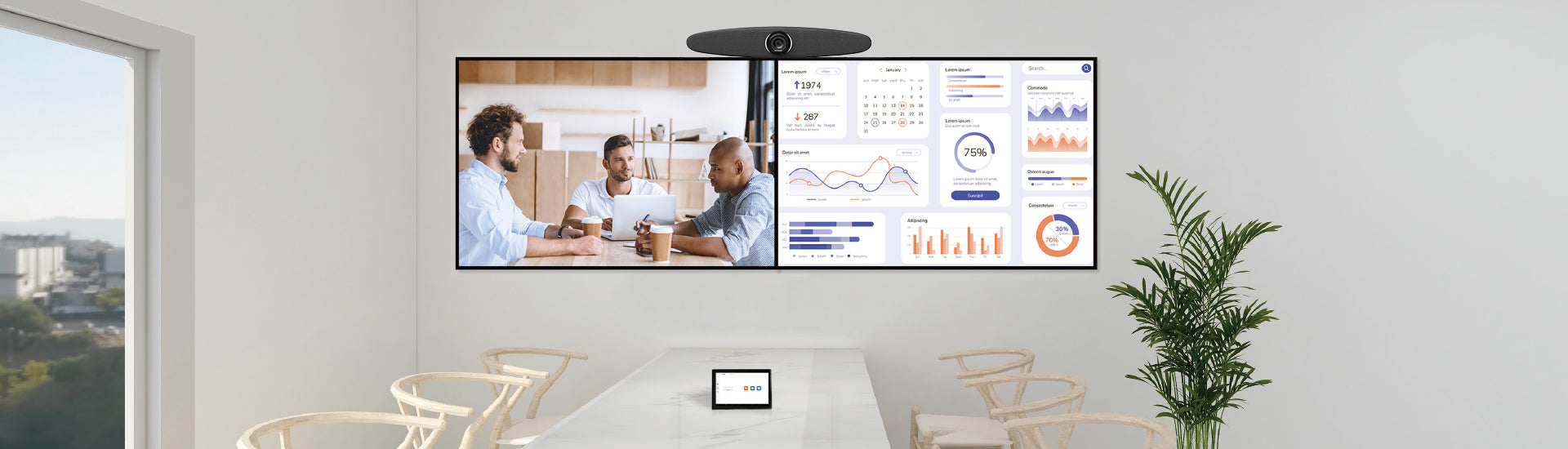

Presenting Meetings in High Definition
With a 1/2.5-inch 4K UHD CMOS sensor and a maximum of 8.51 million effective pixels, the video image is clear and free from noise, displaying colors that are true and natural. Coupled with a 121° ultra-wide-angle lens and complemented by horizontal/vertical ±15° mechanical pan-tilt angle adjustment, the camera perfectly captures the entire meeting room space, presenting an impeccable visual representation.

Time-saving and Effortless, Intelligent Conferencing at Your Fingertips

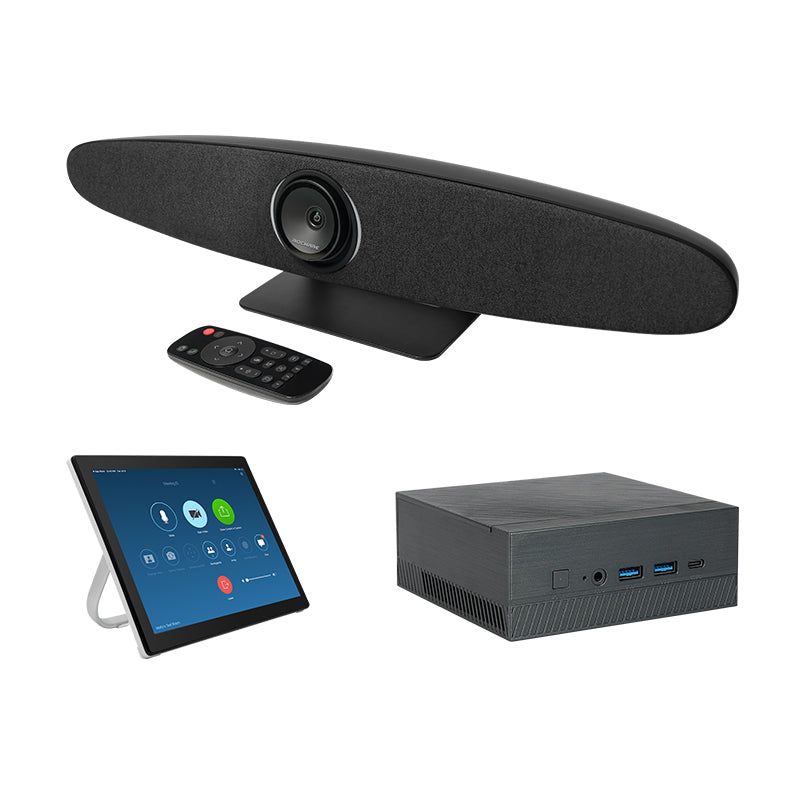

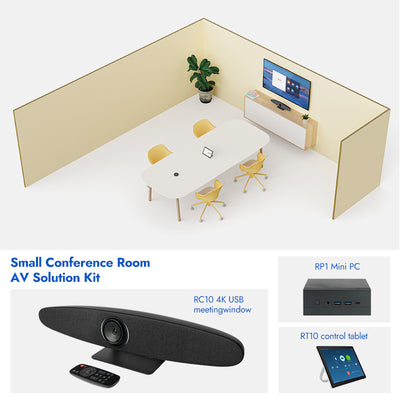

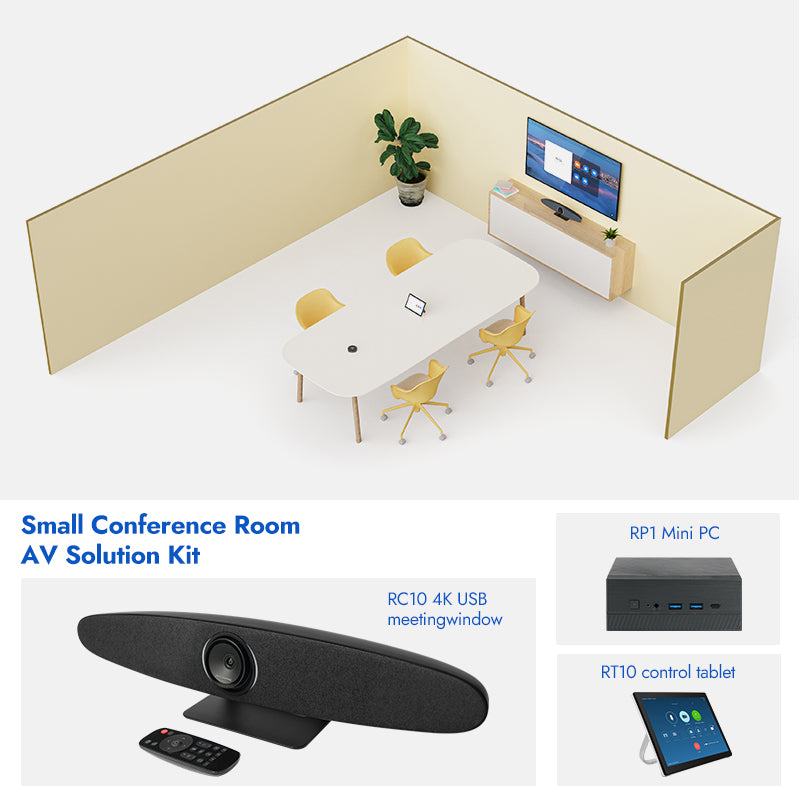

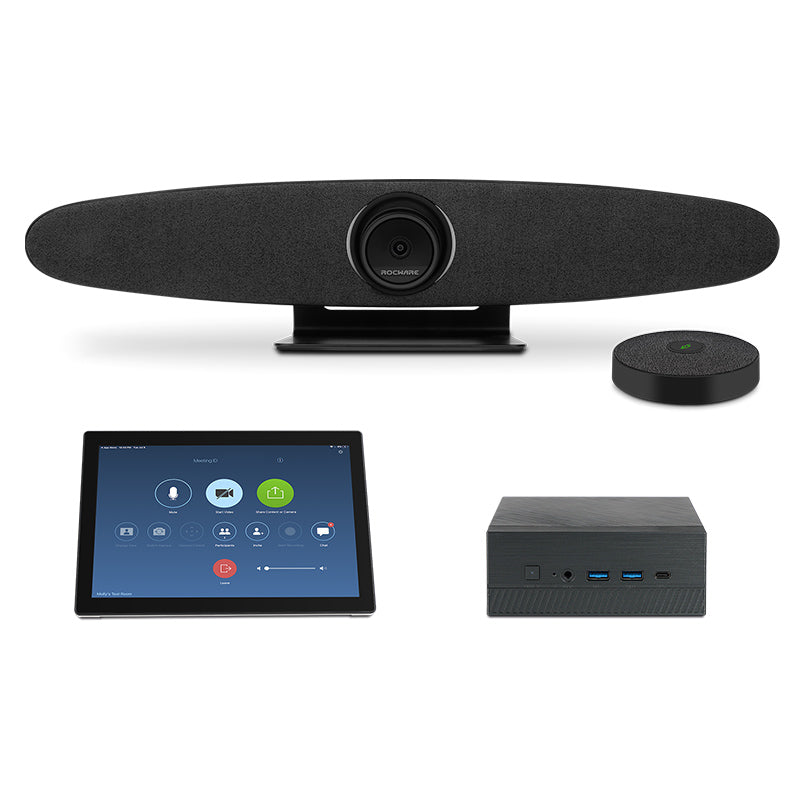

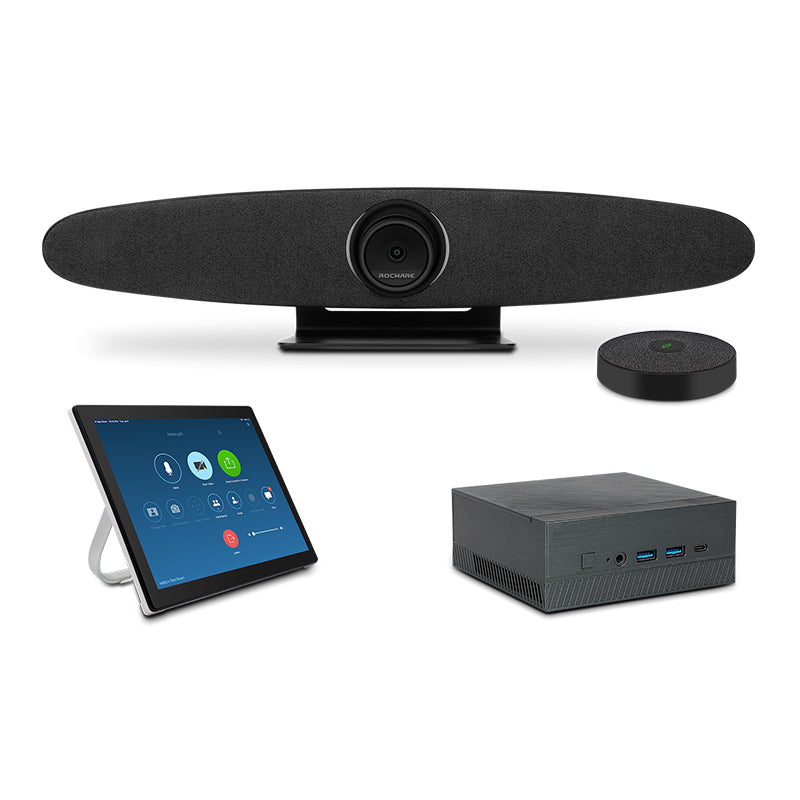

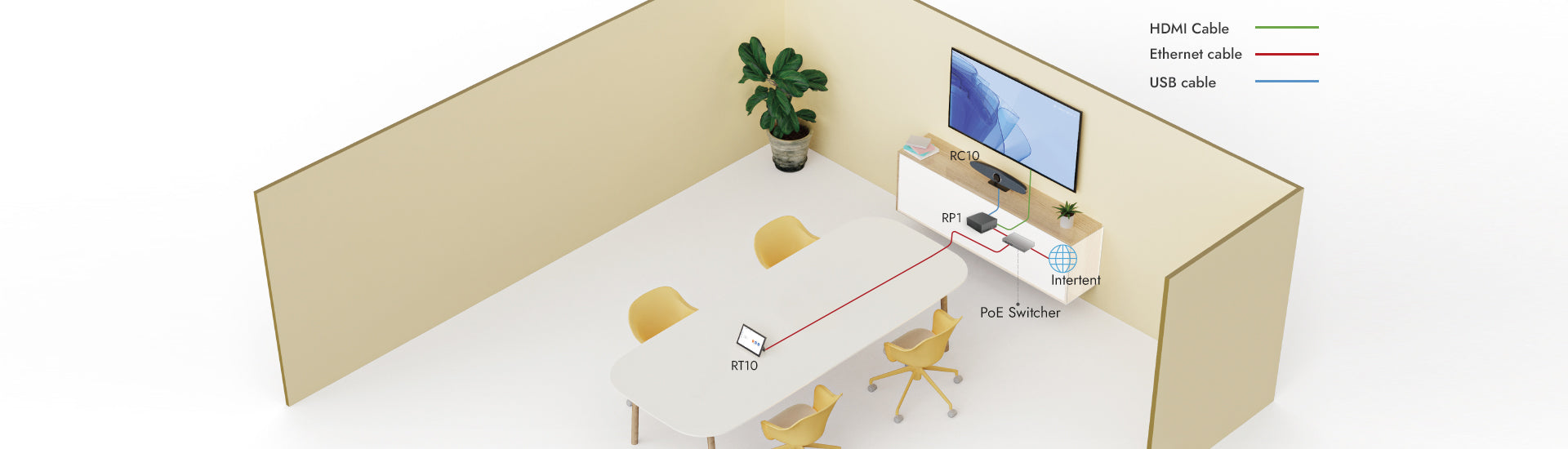

Tailored for small meeting rooms of 30 square meters or less, this cloud video conferencing Rooms solution is suitable for meetings
with up to 8 participants. The solution features an ultra-high-definition USB audio-video all-in-one device, integrating an
ultra-high-definition camera, digital microphone, and high-fidelity speaker. It effectively reduces installation wiring while delivering vivid and detailed meeting visuals and clear and natural audio sound.

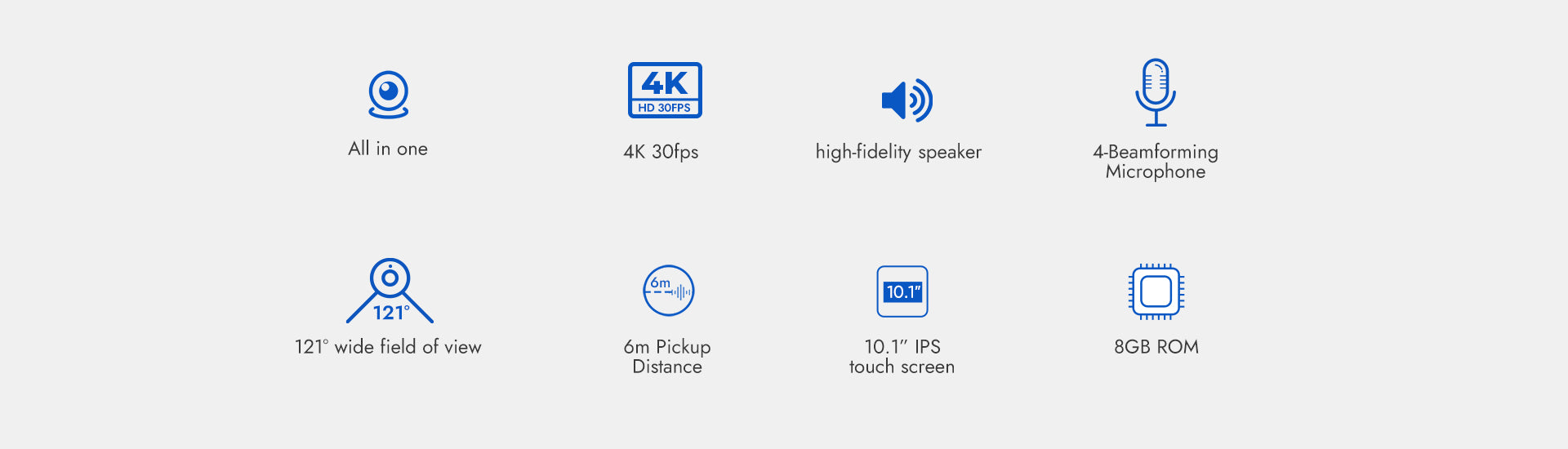

121° Wide Field
Horizontal/Vertical
±15°PTZ Rotation


4K Camera
4 Array Mic
Hi-Fi Speaker
4 Array Microphone
Built-in 3A Algorithm
Volume Equalization


Locate the position of the speaker's voice, automatically focus the camera on
their face, providing close-up shotecognize the positions of participants,
automatically adjust the camera angle to capture the best frame
Recognize the positions of
participants, automatically adjust
the camera angle to capture the
best frame



Specifications

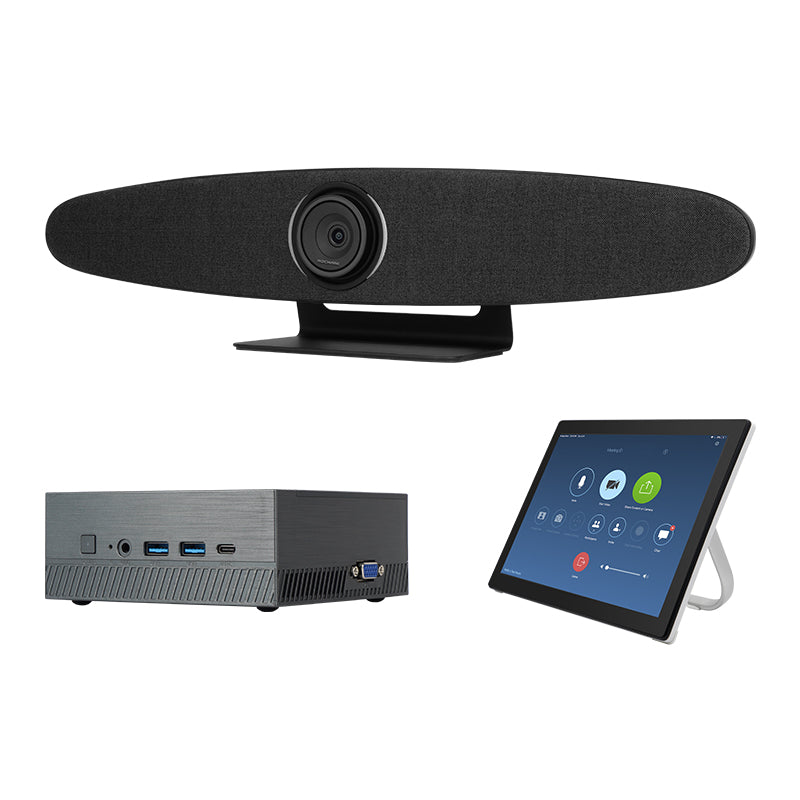

RT10 Rooms Controller
- 10.1-inch IPS touch screen
- Resolution: 1280x800
- Visual Angle: 170 degrees
- USB Interface: 1 x USB2.0 Type-C
- Network Interface: 1 x RJ45: 10/100M,1 x WiFi
- Battery: 4900mAH
RC10 4K All-in-One USB Video Bar
- Video Resolution: 4K@30fps,1080P@30fps etc.
- Sensor: 1/2.5 inches,CMOS,Effective Pixels: 8.51 Megapixels
- Optical Lens: 5x zoom, Horizontal/pitch ±15°
- Tripod Head: Mechanical PTZ (MPT) + e-PTZ (EPTZ)
- Digital Noise Reduction: 2D & 3D Digital Noise Reduction
- Microphone Array: Beamforming microphone with a pickup distance of 6m
- USB Interface: 1 x USB3.0, Type C;1 x USB2.0, Type A
- Installation Method: A variety of installation options supported, including wall mounting, installation with
wall-mounted TV, etc.
RP1 Video Conferencing PC
- Memory: 8G
- Hard disk: 128G SSD
- Operating system: window 10
- Meeting software (optional): Tencent Meeting Rooms, Feishu Meeting Room, Zoom Rooms
- Wireless: 2.4G+5G, Wi-Fi 5
- Ethernet port LAN: 1000M
- HDMI Output: 2 ports
