Independent Speaker for Clearer Audio
Equipped with high-fidelity speakers and built-in 20W+20W stereo speakers, it ensures that the voices of remote meeting participants are conveyed realistically and clearly to every corner of the conference room. Additional audio amplification devices can also be added according to the size of the venue to meet the audio playback requirements of larger venues.
Cascading Microphones for Versatile Venue Usage

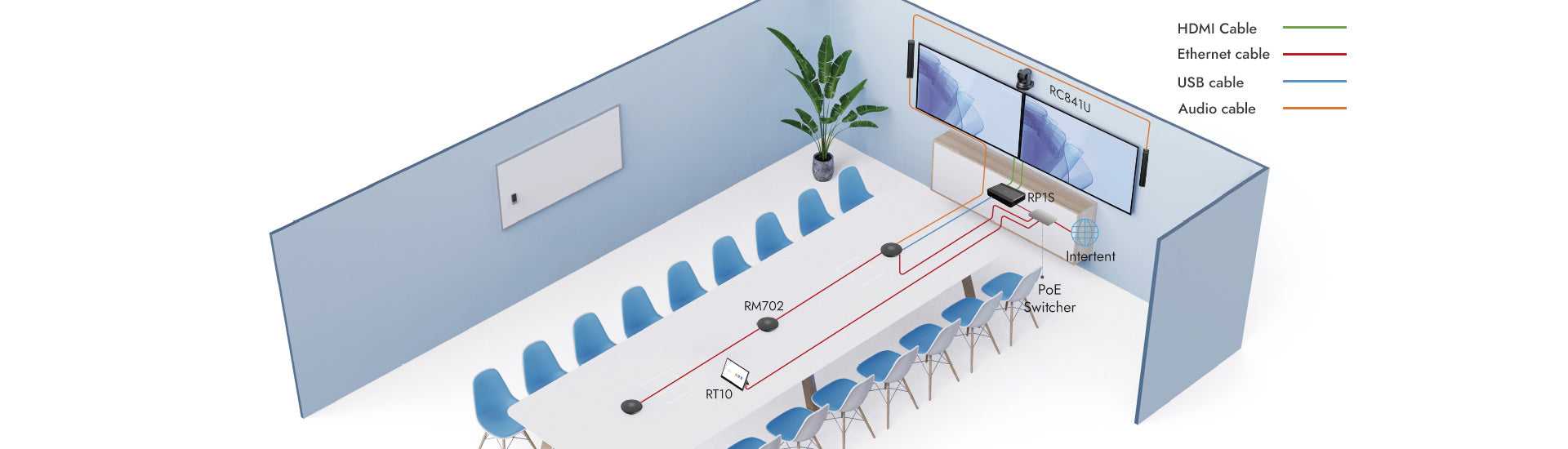

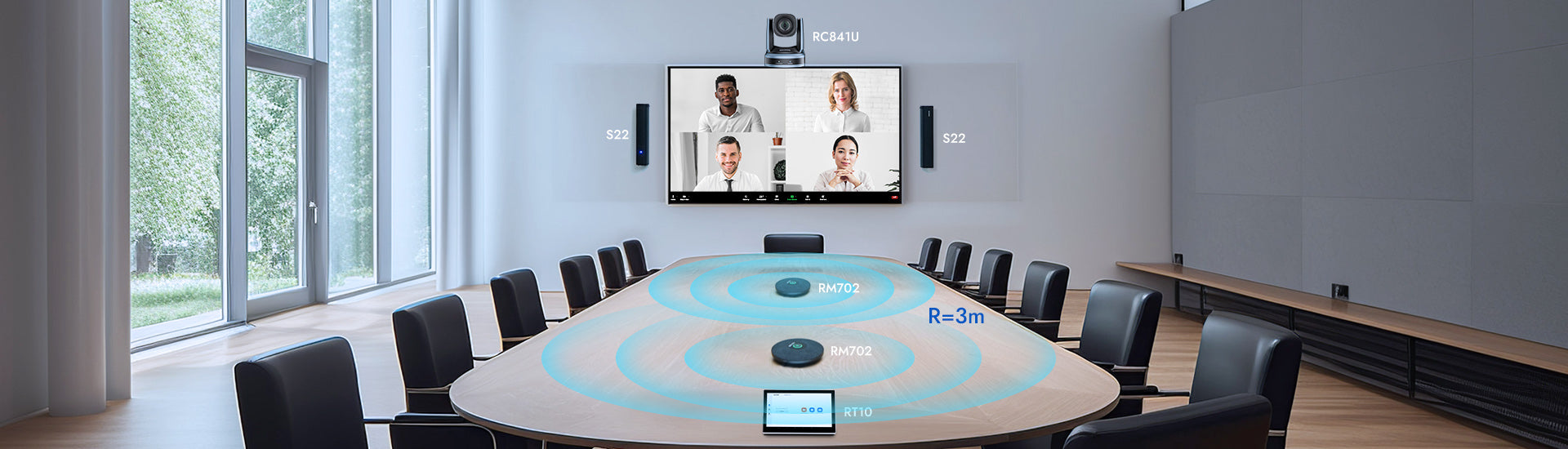

The microphones support PoE (Power over Ethernet) and cascading installation, allowing for flexible deployment based on various meeting room layouts, such as U-shaped, Y-shaped, circular, and more. With a maximum cascade capability of 6 units, the microphone system can meet the audio pickup needs of meeting spaces exceeding 150 square meters
High-quality Audio and Video at an Affordable Price

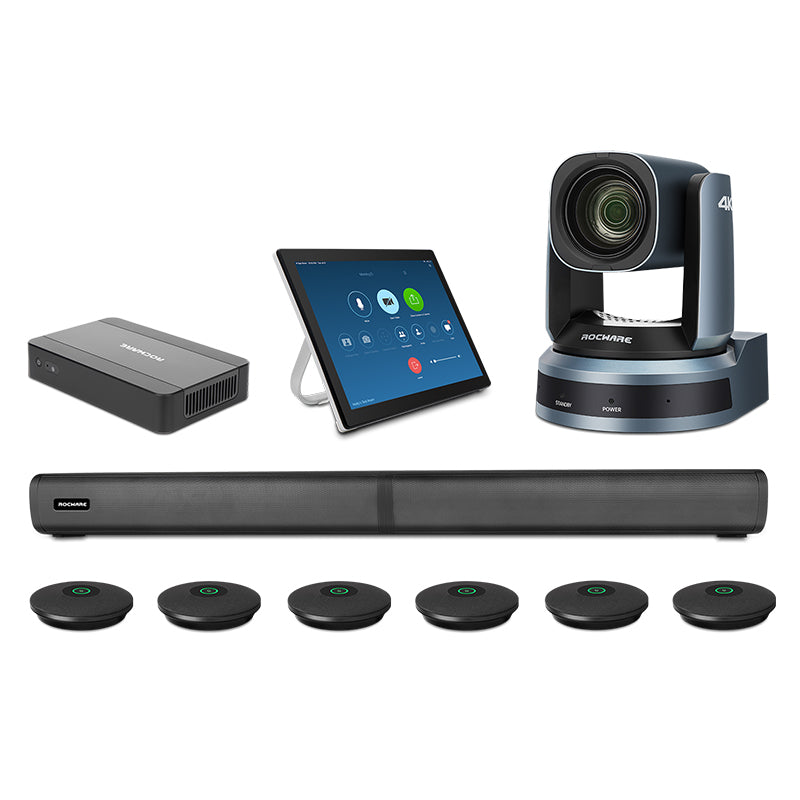

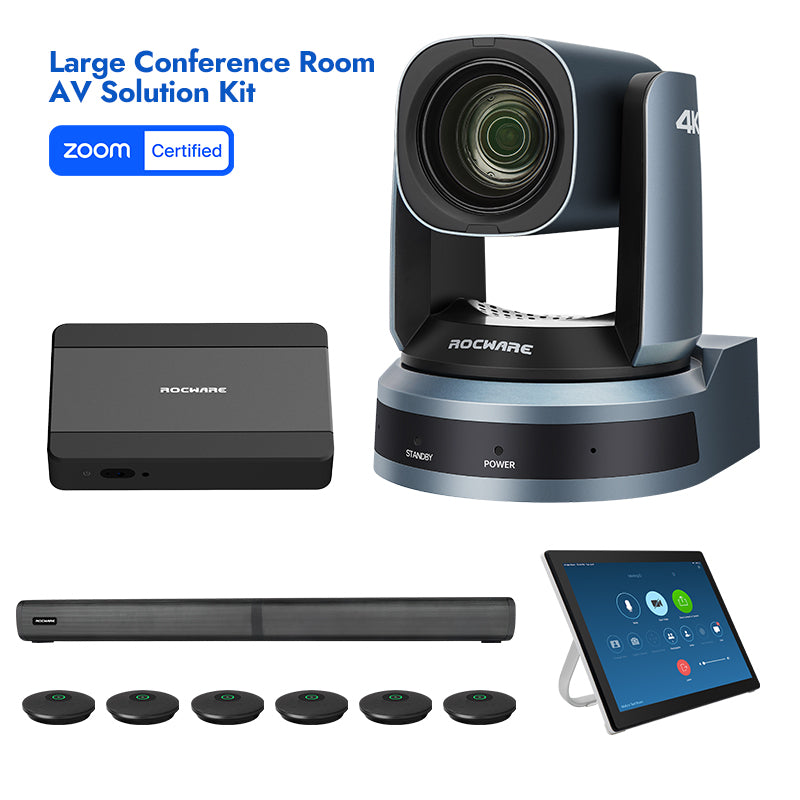

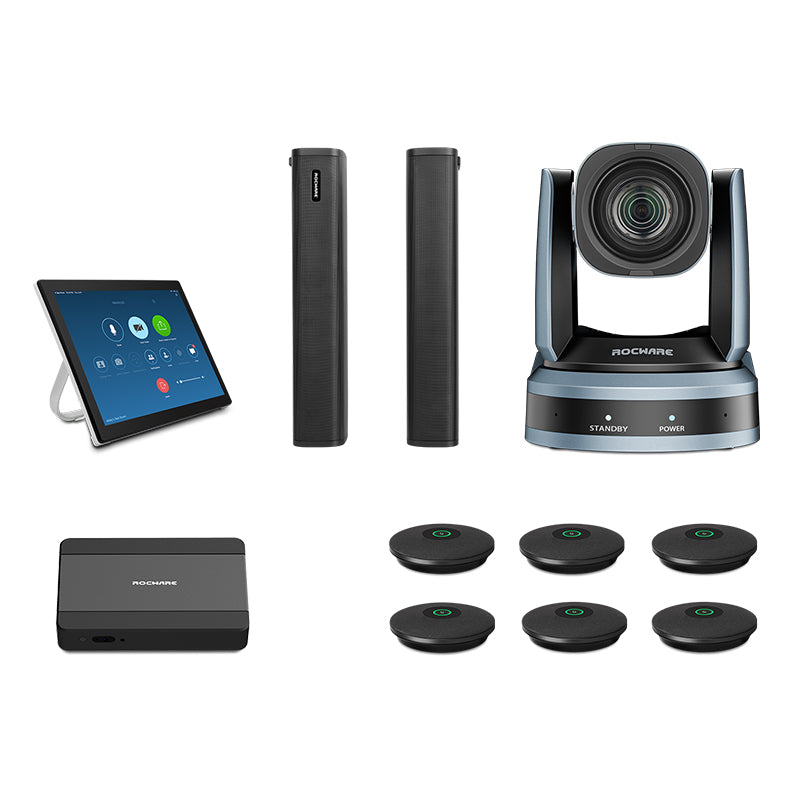

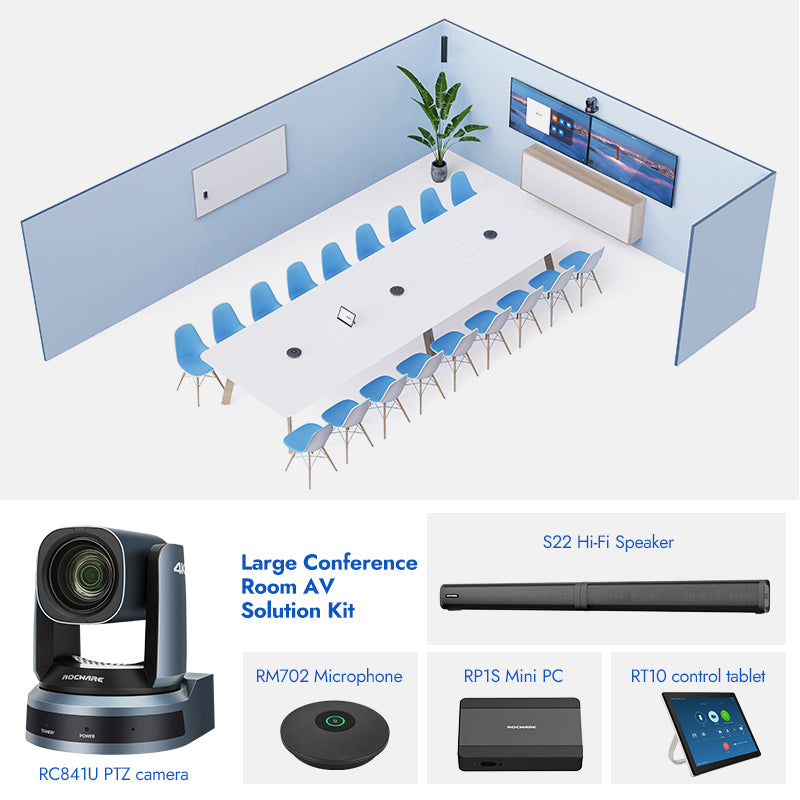

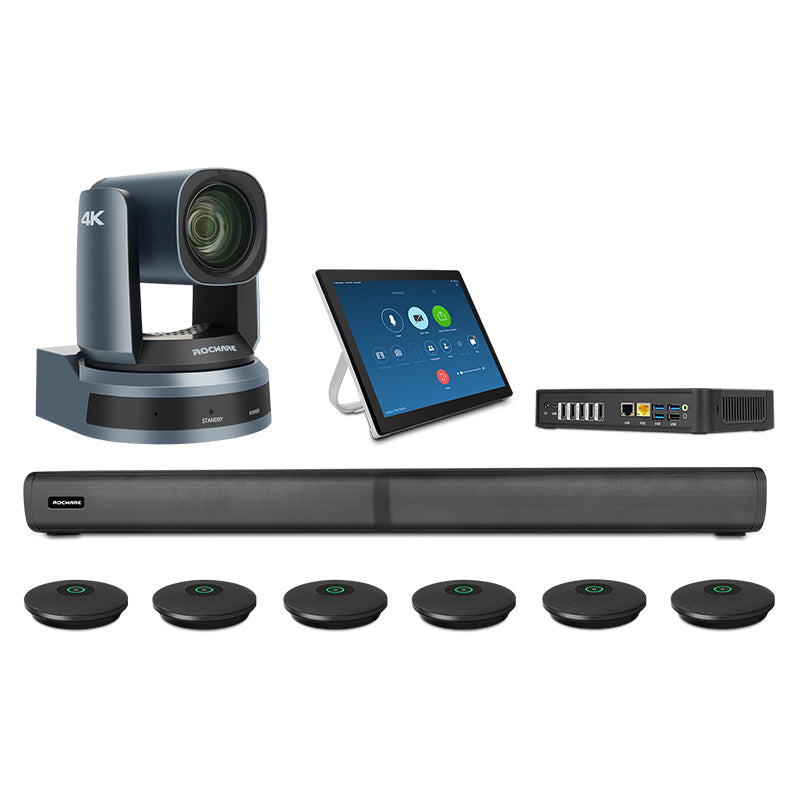

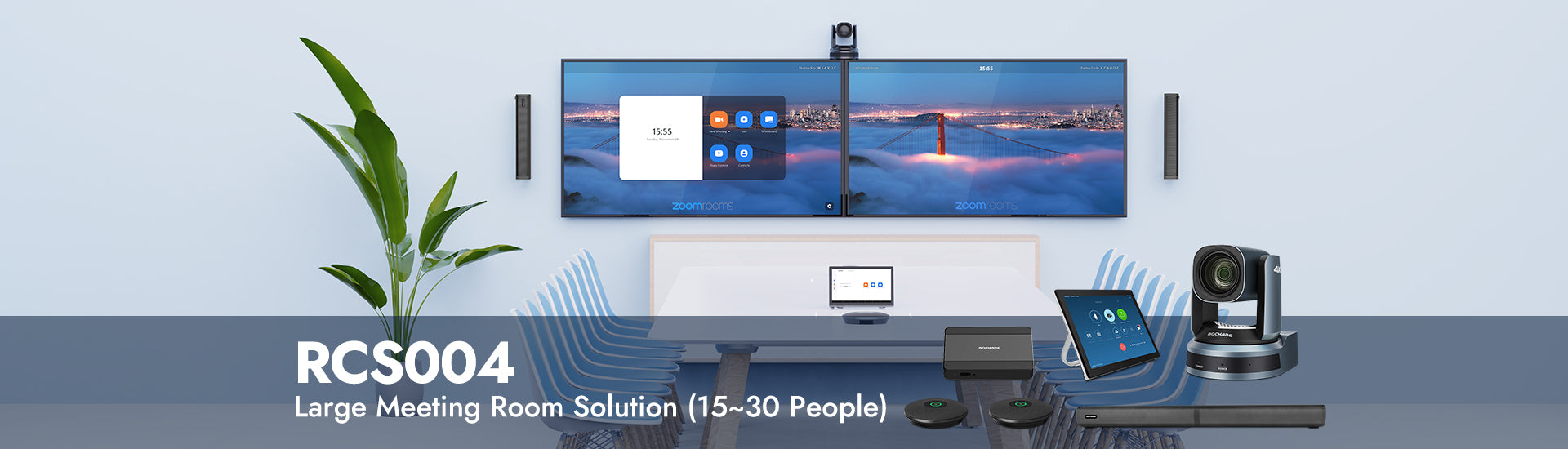

Specially designed for large meeting rooms of 120 square meters or less, this cloud video conferencing Rooms solution is ideal for meetings with up to 25 participants. The solution features a 4K ultra-high-definition camera RC841U, offering outstanding detailed image quality. It is complemented by a maximum of 6 cascaded digital array microphones with a pickup range of up to 150 square meters, incorporating audio 3A algorithms for clear and natural sound pickup. Equipped with dual independent speakers, it delivers clear and immersive sound from remote participants to the meeting room, facilitating smoother communication. Its stable performance and user-friendly operation allow you to focus on enjoying your exclusive meeting time.
12x Optical Zoom
12x Optical Zoom
80.8° Wide-angle Lens
±170° Horizontal Pan Rotation
-30°~90° Vertical Tilt Rotation
Multiple Installation
Wall Mounting
Desktop Placement
Cascading Of Six Mic
Support For PoE Cascading

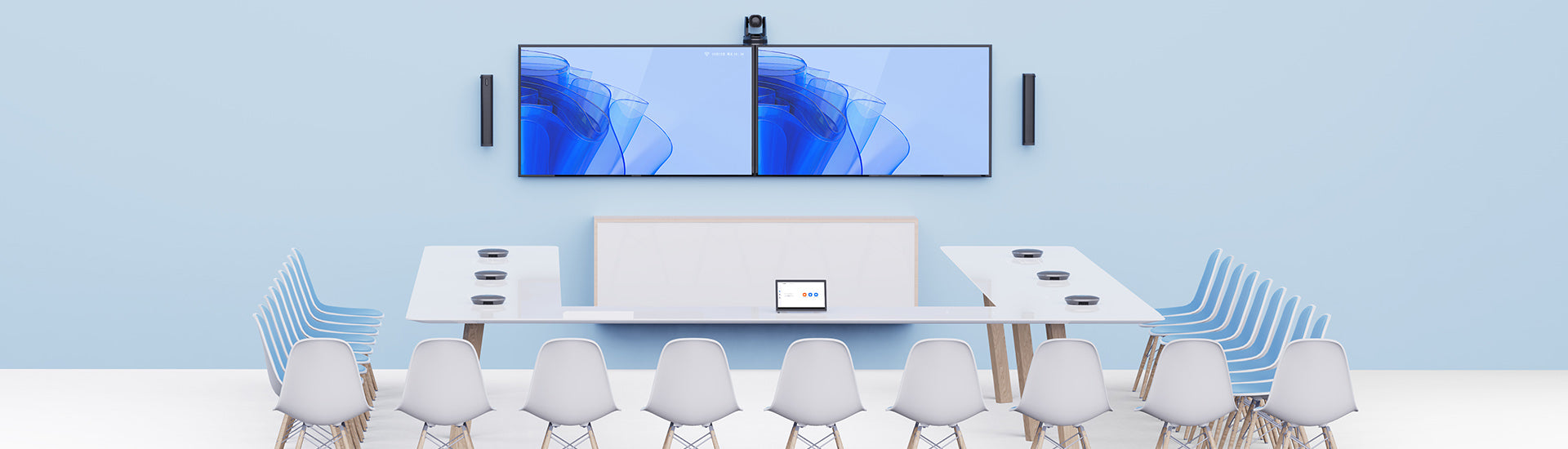

Suitable For U-shaped,Square,And
Round Conference Rooms
Humanoid Tracking
track a person automatically following its movements without requiring manual operation,
Auto Framing
Recognize the positions of
participants, automatically adjust
the camera angle to capture the
best frame
Specifications
RT10 Rooms Controller
- 10.1-inch IPS touch screen
- Resolution: 1280x800
- Visual Angle: 170 degrees
- USB Interface: 1 x USB2.0 Type-C
- Network Interface: 1 x RJ45: 10/100M,1 x WiFi
- Battery: 4900mAH
RC841U 4K Video Conferencing PTZ Camera
- Resolution: 4KP30fps，4KP29.97fps, etc.
- Sensor: 1/2.8 inch CMOS,
- Effective Pixels: 8.51 million
- Optical Zoom: 12x · Digital
- Horizontal Field of View: 80.8° ~ 7.5°
- Vertical Field of View: 49.9° ~ 4.3°
S22 Hi-Fi Speaker
- Horn impedance: 49
- Signal to noise ratio: ≥ 65dB
- Audio input: 1 channel, Line in, 3.5mm audio interface
- Power interface: DC18V
- Input voltage: DC18V
- Input current: 2A
RP1 Video Conferencing PC
- CPU: i5-8259U
- Graphics Card: Intel Iris Plus
- Memory: 8GB (2x 4GB dual-channel)
- Hard Drive: 128GB SSD
- HDMI Output: 2 ports
- HDMI Input: None
- Conference Software (Choose one): Tencent Meeting Rooms,Feishu Meeting Room, Zoom Rooms
M702 Cascading Omnidirectional Digital Array Microphone
- Microphone Type: High Signal-to-Noise Ratio Digital Silicon Microphone
- Microphone Array: Built-in six (4+2) MEMS Microphones
- Microphone Coverage: 360° Omnidirectional Sound Pickup
- Pickup Distance: Effective Pickup Distance of 6m, 10m after Cascading
- Speaker Type: High-Low Frequency Speaker, High-fidelity Acoustic Design, Professional Sound Mixing
RP1S Video Conferencing PC
- CPU: i5-1135G7
- Graphics Card: Intel Iris Xe Graphics
- Memory: 8GB (2x 4GB dual-channel)
- Hard Drive: 128GB SSD
- HDMI Output: 3 ports
- HDMI Input: 2 ports
- Conference Software (Choose one): Tencent Meeting Rooms, Feishu Meeting Room, Zoom Rooms
