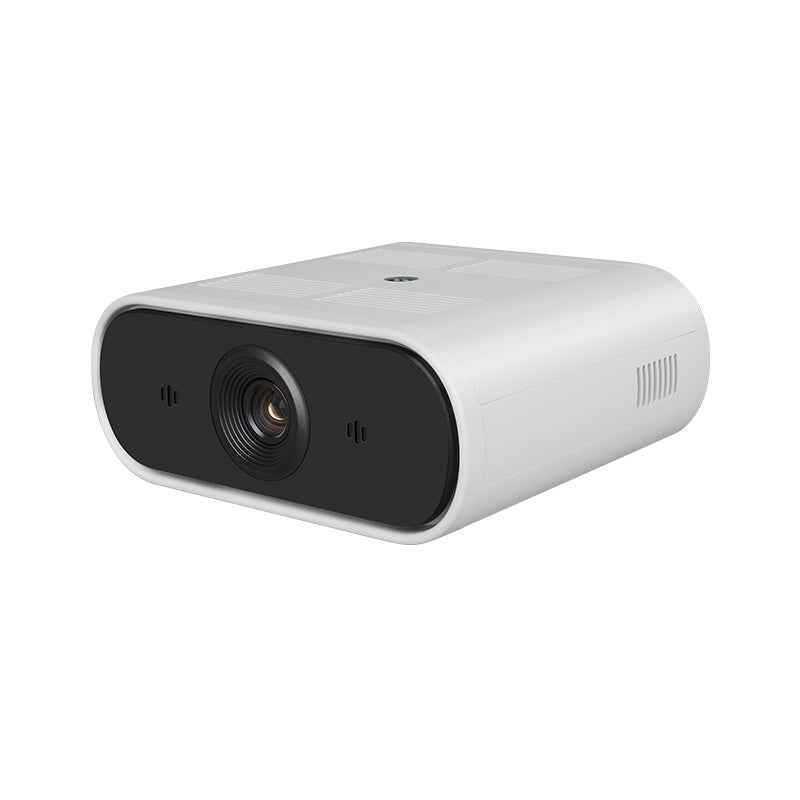

Smart HD Automated Tracking Camera
RC031 is a new -generation AI blessing 4K box camera specially built in the field of education. It has the characteristics of high configuration, high specifications, light deployment, and can quickly build a smart classroom environment for the school, and seamlessly connects the existing teaching environment. Teachers have no burden on teaching.
Auto Tracking and Roll Call for the Attendance
In the mode of classroom panorama, RC031 can auto tracking and roll call for the attendance with AI technology.
Rocware’s Patented Automatic Picture Generation of Board Writing
It allows the student to focus on the relevant content during class and allows snapshots of the content to be taken and saved for follow up.
Be Seen
The RC031 cameras are equipped with 4K lens and image processing to provide crystal clear images with intelligent zoom, tracking functionality and auto framing, exposure.
Autonomously Communicate What is Relevant
The built-in AI algorithm and behavior recognition and portrait tracking allow the broadcast to automatically switch between teacher close-up, classroom panorama, blackboard close-up, student close-up, student panorama and or any other video.
Specifications
Camera
- Sensor : 1/2.7 inches, CMOS, Effective Pixels: 8.46 Megapixels
- Scanning Mode : Progressive
- Lens Mount : M12

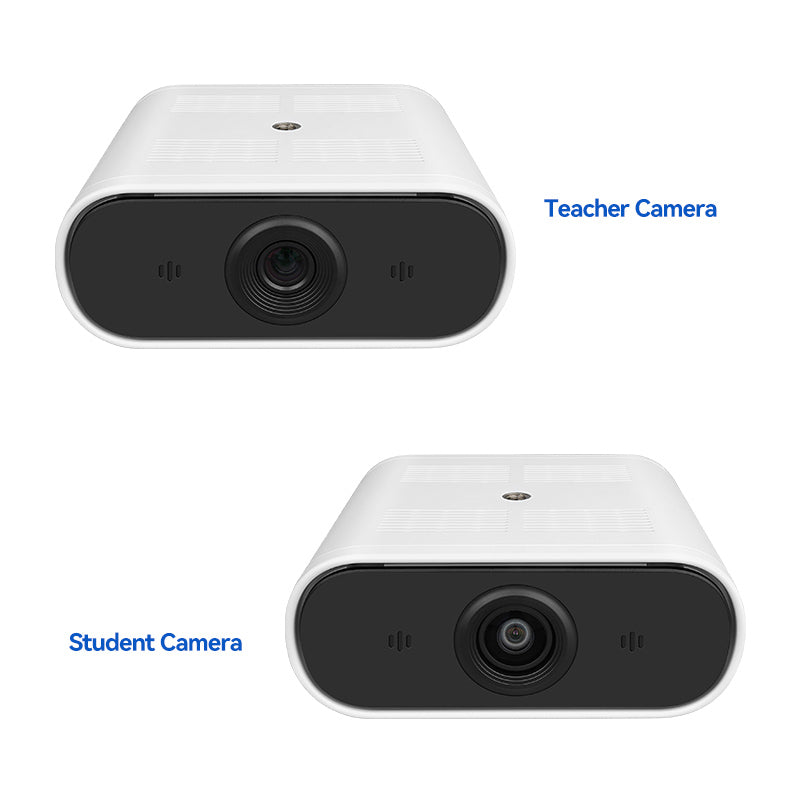

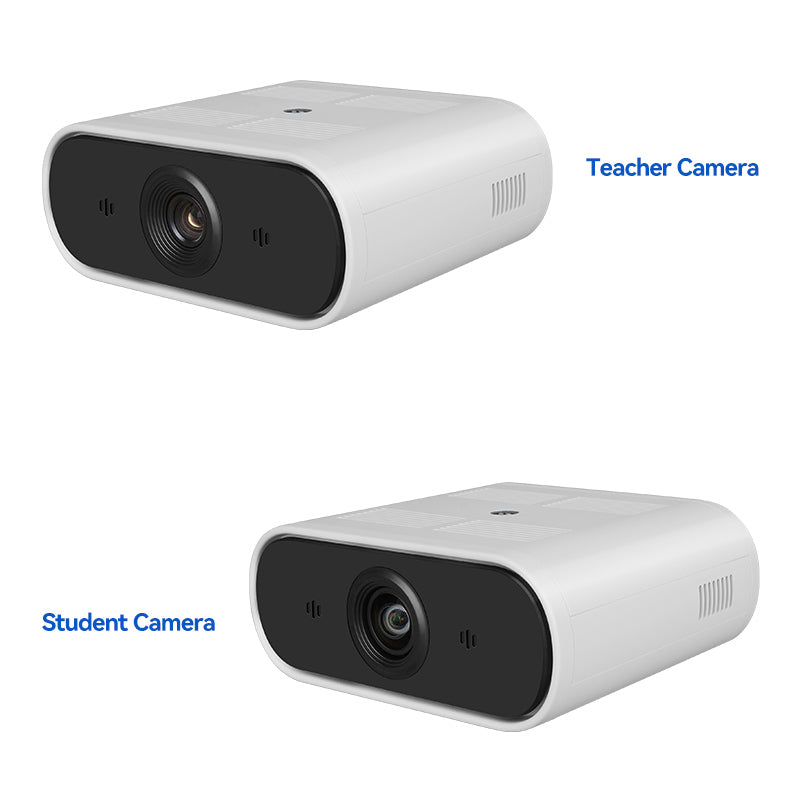

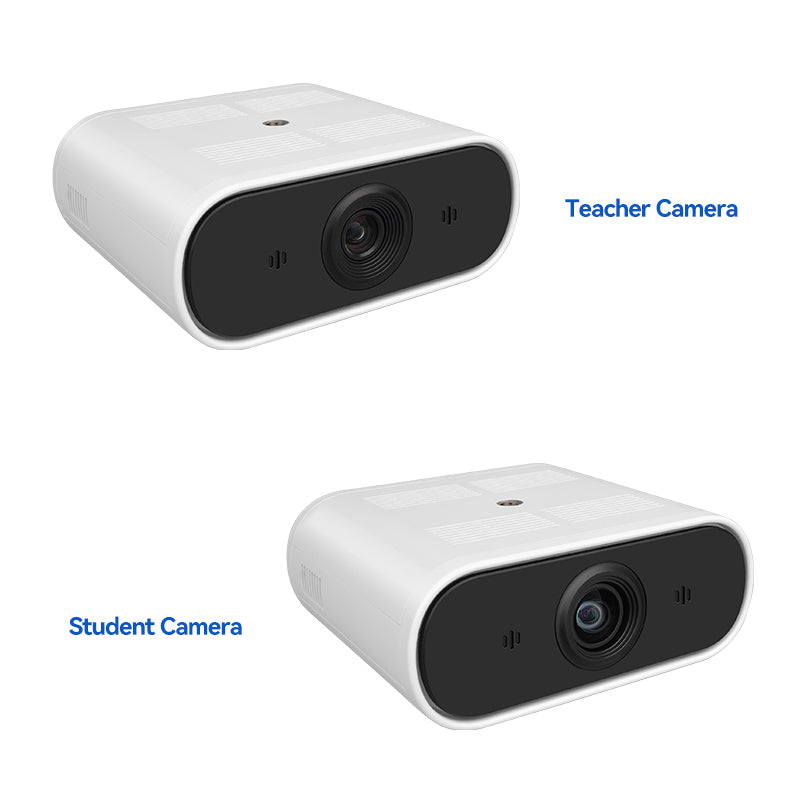

- Lens I (Teacher's Camera) : Focal length: f=7.2mm, Horizontal FOV: 44°
- Lens II (Student's Camera) : Focal length: f=2.8mm, Horizontal FOV: 95°
- Minimum Illumination : 0.5 Lux @ (F1.8, AGC ON)
- Shutter : 1/30s ~ 1/10000s
- White Balance : Auto, Indoor, Outdoor, One Push, Manual, VAR
- Digital Noise Reduction : 2D & 3D Digital Noise Reduction
- Backlight Compensation : Support
- EPTZ : Support
- Auto Focus : Teacher's machine supported
- Digital Zoom : 8X
- PoE : Support
- Select lens I/II : Corresponding to the teacher/student tracking mode,respectively

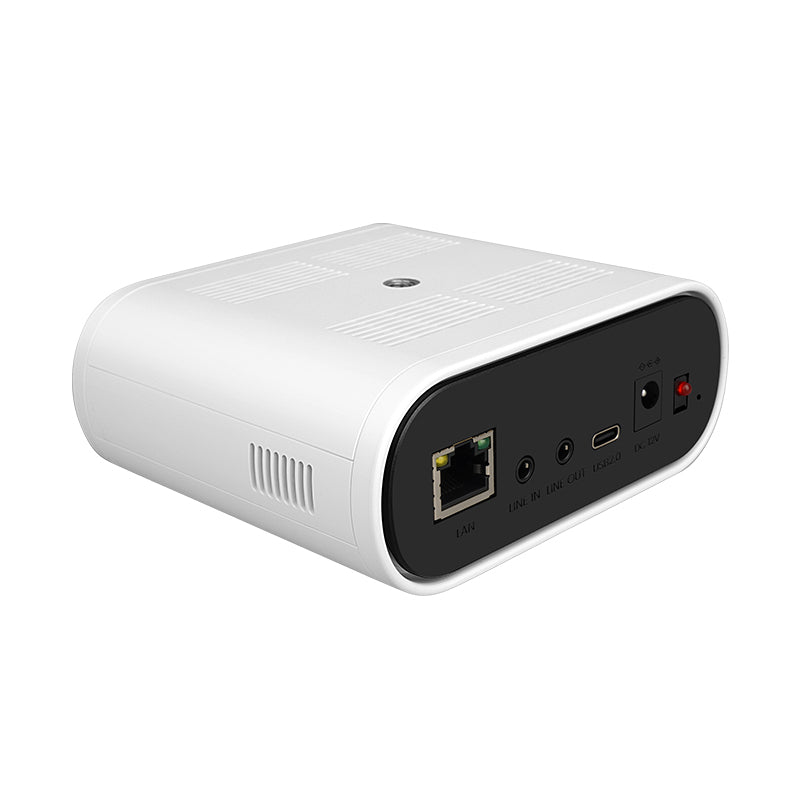

Interface
- Network Interface : 1x RJ45: 10M/100M adaptive Ethernet, PoE support
- Audio Interface : 1 x 3.5mm LINE IN；1 x 3.5mm LINE OUT
- Power Interface : DC005 type（DC12V）
- USB Interface : 1 x USB2.0: Type-C Interface
- Indicator light : Power Indicator
USB Features
- Operating System Supported : Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS X, Linux
- Color System / Compression : H.264 / MJPEG
- USB Audio : Support
- Video Format : MJPEG: Max. 2160P@30fps
- USB Video Communication Protocol : UVC 1.1 ~ UVC 1.5
Network Features
- Video Compression : H.264 / MJEPG
- Video Stream : First Stream, Second Stream,Third Stream, Fourth Stream
- First Stream Resolution : 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360,320x240,320x180
- Second Stream Resolution : 3840x2160, 1920x1080, 1280x720, 1024x576, 720x576(50Hz),
720x480(60Hz), 720x408,640x360, 480x270 - Third Stream Resolution : 1920X1080, 1280X720, 1024x576, 960x540, 720x576(50Hz),
720x480(60Hz), 720x408, 640x360, 480x270, 320x240, 320x180 - Fourth Stream Resolution : 1024x576, 960x540, 720x576(50Hz), 720x480(60Hz), 720x408, 640x360, 480x270, 320x240, 320x180
- Video Bit Rate : 32Kbps ~ 16384Kbps
- Bit Rate Control : VBR, CBR
- Maximum Frame Rate : 1~30fps
- Audio Compression : AAC, G711A
- Audio Bit Rate : 96Kbps, 128Kbps
- Protocols : TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, GB/T 28181, Multicast,etc
General specifications
- Input Voltage : DC 12V/ POE（802.3af）
- Input Current : 0.5A（Max.）
- Operating Temperature : -10°C ~ 40°C (14°F ~ 104°F)
- Storage Temperature : -40°C ~ 60°C (-40°F ~ 140°F)
- Power Consumption : 6W (Max.)
- Dimension : 110mm x96mm x 44mm
- Net Weight : About 0.2Kg ( 0.44 lb )
