Equipped with Panasonic 1/2.8-inch high-quality HD CMOS sensor with 2.07 million effective pixels to achieve high-quality 1080P high-resolution images. It delivers bright colors and detailed video in 1080P at 60fps, even in low-light environments that are too dark or too bright.

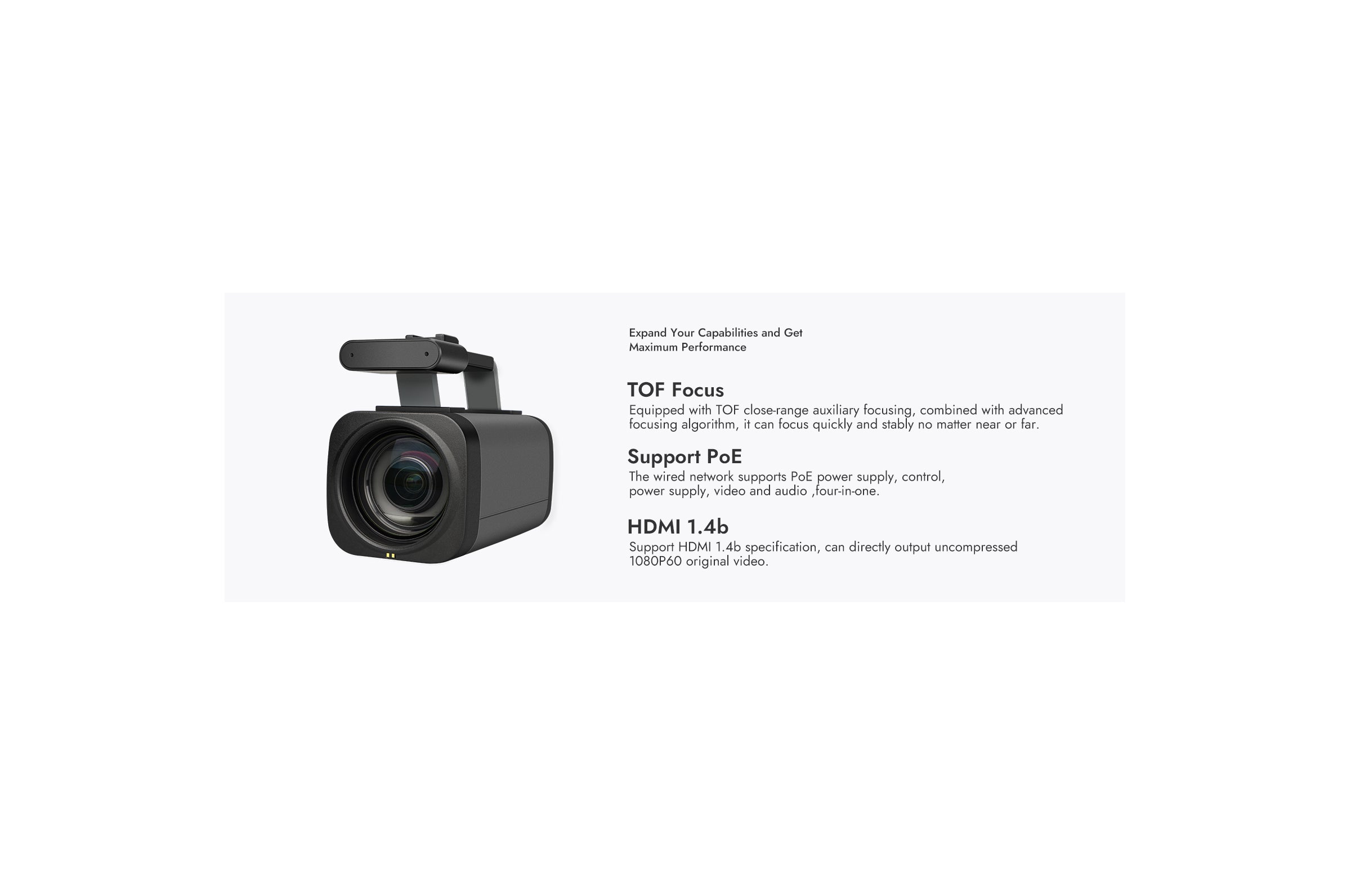

Equipped with TOF close-range auxiliary focusing, combined with advanced focusing algorithm, quickly focus on moving objects precisely regardless of distance to display important details clearly. Capture live footage in the most realistic image quality. Clearly present every detail of the live streaming without missing a moment.

Specifications
Camera
- Sensor:1080P60/50/30/25, 720P60/50
- Scanning Mode:1/2.8'', CMOS, Effective Pixel
- Lens Mount:Progressive
- Lens :12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
- Minimal Illumination:0.5Lux @ (F1.8, AGC ON)
- Shutter:1/30s ~ 1/190s
- White Balance: Auto, Indoor, Outdoor, One Push, Manual, Specified color temperature
- Backlight Compensation:Support
- Digital Noise Reduction: 2D&3D digital noise reduction
- Video S/N: ≥55dB
- Horizontal Angle of View :72.5° ~ 6.9°
- Vertical Angle of View:44.8° ~ 3.9°
- H & V Flip:Support
- Image Freeze:Support
- Number of Preset :255
IPC Features
- Video Compression: H.264/MJEPG
- Video Stream: Main Stream, Sub Stream
- Main Stream Resolution: 1920x1080,1280x720
- Sub Stream Resolution:1280x720,640x360
- Video Bit Rate:32kbps~20480kbps
- Bit Rate Type:Variable Rate, Fixed Rate
- Frame Rate:50Hz
- Audio Compression:AAC
- Audio Bit Rate:96Kbps, 128Kbps, 256Kbps
- Support protocols:TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast and so on
USB Featured
- Operate System:Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
- Color System:YUY2
- Video Format:YUY2 (isochronous mode)
- Audio on USB: Support
- USB Video Communication Protocol:UVC 1.1
- UVC PTZ: Support
Input/Output Interface
- USB :1xUSB3.0,Type-C socket,Device Model;1xUSB2.0,TypeA socket,Host Model
- HD Output:1xHDMI1.4b
- Audio Interface:1xMic In 3.5mm Audio
- Network Interface:10M/100M ,support POE power supply
- Power Jack:JEITA type(DC IN 12V)
Generic Specification
- Input Voltage:DC 12V/USB 5V/PoE(802.3af)
- Input Current:12V 1.0A(MAX)/5V 1.5A(MAX)
- Operating Temperature :-10°C ~ 40°C
- Storage Temperature:-40°C ~ 60°C
- Power Consumption:6W(MAX)
- Size:138mm*76mm*71.6mm
- Net Weight:723g
