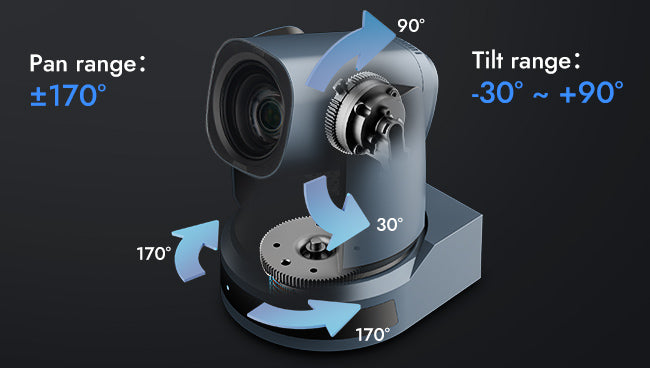

Horizontal Rotation Range: ±170°
Vertical Rotation Range: -30°~+90°
Exclusive customized high-quality true 8 million ultra-high-resolution ultra-wide-angle lens, horizontal field of view up to 80.8°,can cover the meeting scene better.
4K UHD
Utilizing Sony's next-generation UHD CMOS sensor, our system delivers ultra-high-resolution 4K (3840x2160) video with outstanding image quality and accurate, natural colors. Equipped with an 80.8° ultra-wide-angle lens and 12x optical zoom,
combined with a wide-range pan-tilt mechanism, it captures every detail in the meeting room.
RC841U can accurately obtain the number and distribution of participants through face detection, intelligently control PTZ cameras to capture all participants in the screen, and adjust to the best screen
Built-in NNE hardware unit, with deep learning technology and extracting target features, no matter where the face is facing, it can achieve smooth tracking

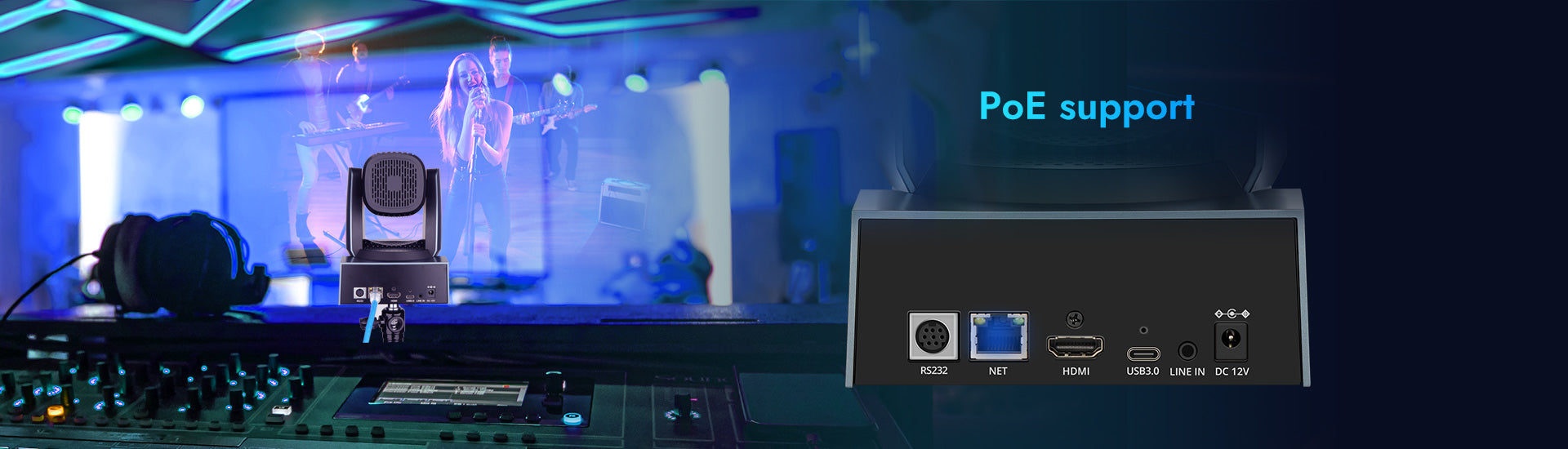

PoE

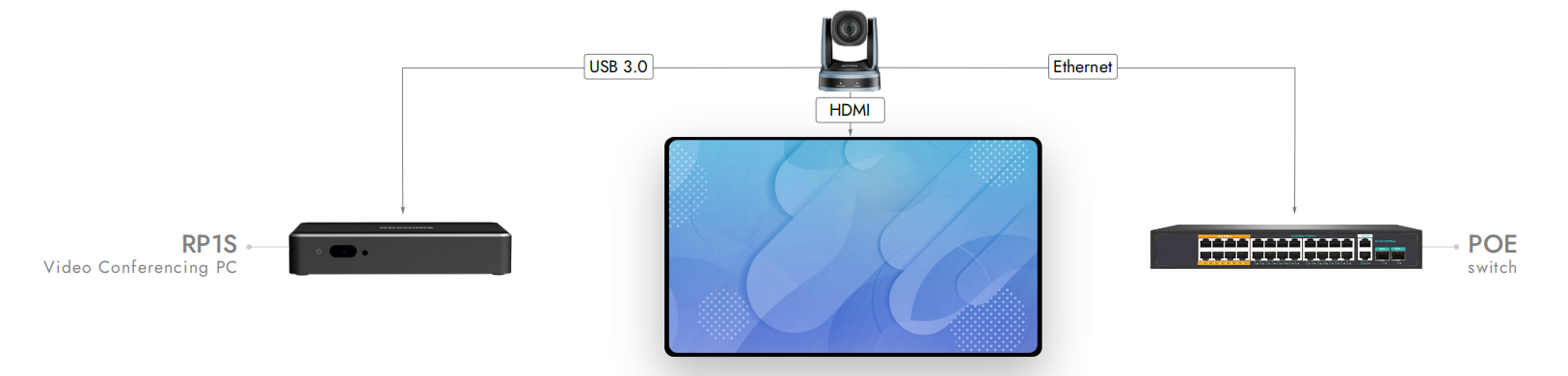

The wired network supports PoE power supply, the control, power supply, video and audio can be completed with only a network cable.

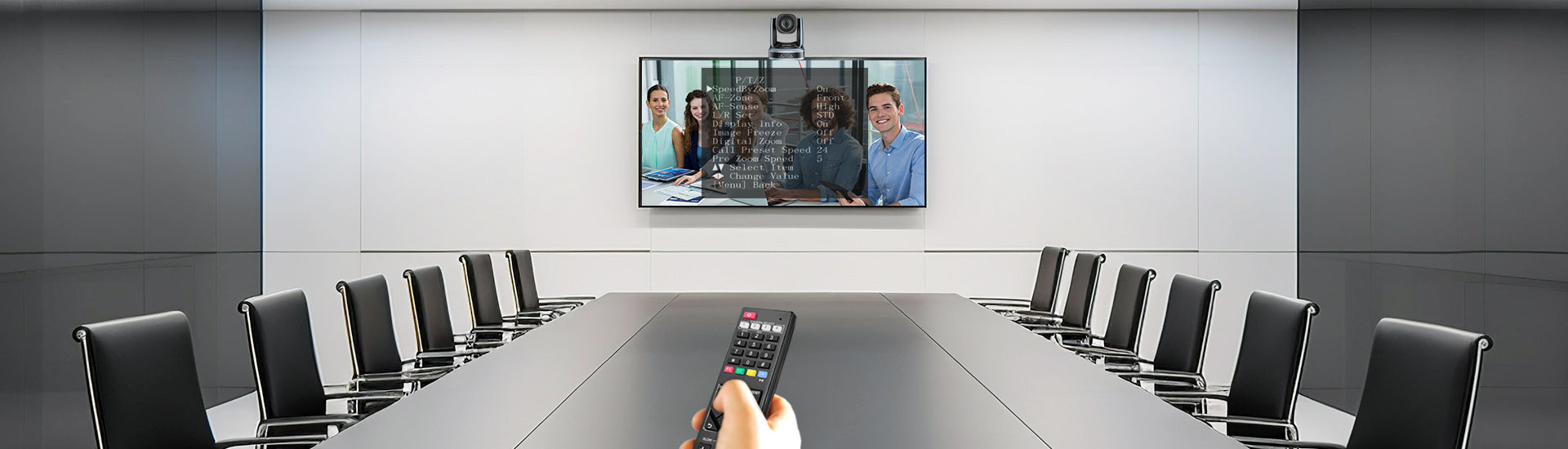

Remote Control
The camera can be controlled remotely through the RS232 serial port, network and USB.
Specification
Camera
- Signal : HDMI: 4KP30fps,4KP25,1080P30,1080P25
- Sensor: 1/2.5", CMOS,
- effective pixels: 8.51 million
- Scanning method: Line by line
- lens: 12x, f = 3.47mm ~41.65mm, F 1.84 ~ F 3.72
- Digital zoom: 16x
- Minimum illumination: 0.5Lux @ (F1.8, AGC ON)
- shutter: 1/30s ~ 1/10000s
- White balance: Automatic, indoor, outdoor, one-touch, manual, specify the color temperature
- Backlight compensation: support
- Digital noise reduction: 2D & 3D digital noise reduction
- Signal-to-noise ratio: ≥55dB
- Horizontal field of view: 80.8° ~ 7.5°
- Vertical field of view: 49.9° ~ 4.3°
- Pan range: ±170°
- Tilt range: -30° ~ +90°
- Pan speed range: 2.7° ~ 35.7°/s
- Tilt speed range: 2.7° ~ 31.5°/s
- Flip horizontally, vertically: support
- Image freezes: support
- Number of preset: 255
- Preset accuracy: 0.1°
USB features
- OS Support: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
- Color space/compression： YUY2/ MJPEG/ H.264
- Video format：YUY2 (iso model): Max: 1080P@30fps MJPEG: Max: 2160P@30fps H.264 AVC: Max: 2160P@30fps H.264 SVC: Max: 2160P@30fps
- USB audio: support
- USB video communication: UVC 1.1~1.5
- UVC PTZ control: support
IPC features
- Video encoding standards: H.264/MJEPG
- Video stream: The first stream, the second stream
- The first stream resolution: 3840x2160,1920x1080,1280x720,1024x576,960x540,640x480,640x360
- The second stream resolution: 1920x1080,1280x720,1024x576,720x576, 720x480,720x408,640x360,480x270,320x240,320x180
- Video bit rate: 32Kbps ~ 102400Kbps
- Bit rate control: Variable bit rate, fixed bit rate
- Frame rate: 50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps
- Audio compression standards: AAC
- Audio bit rate: 96Kbps, 128Kbps, 256Kbps
- Support Agreement: TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, multicast

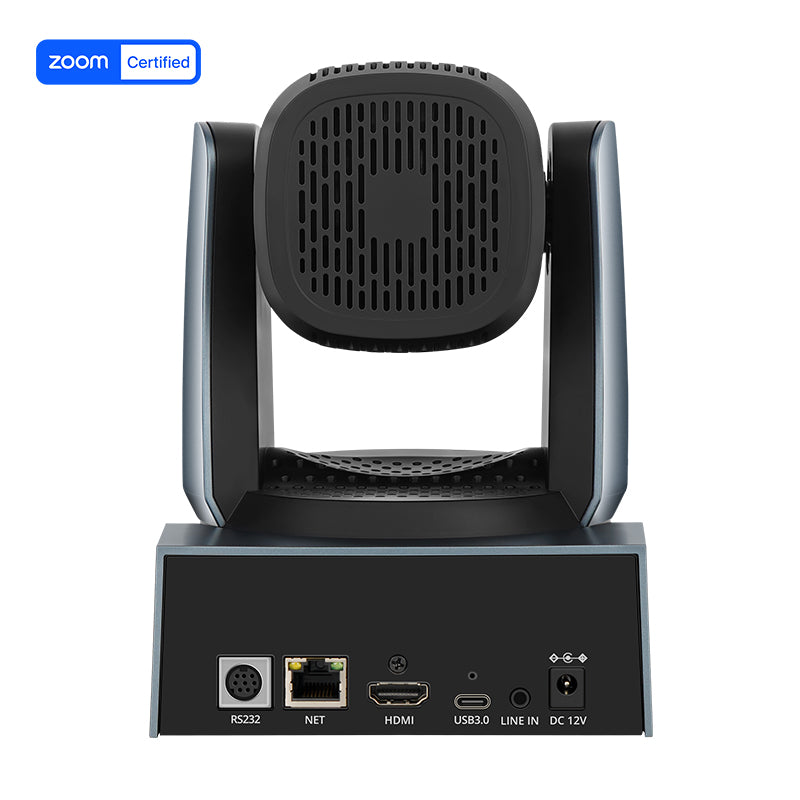

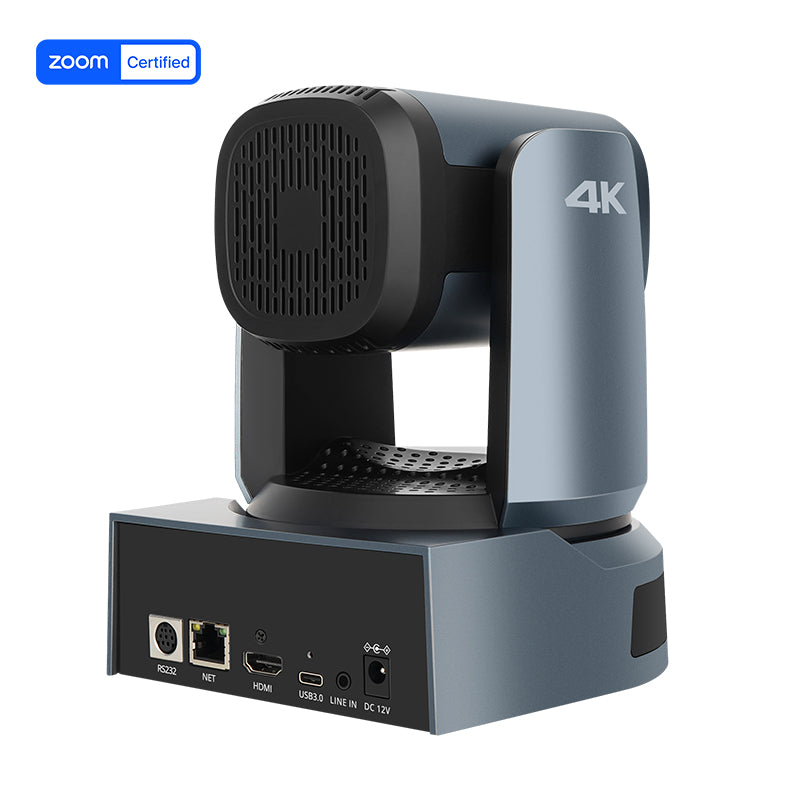

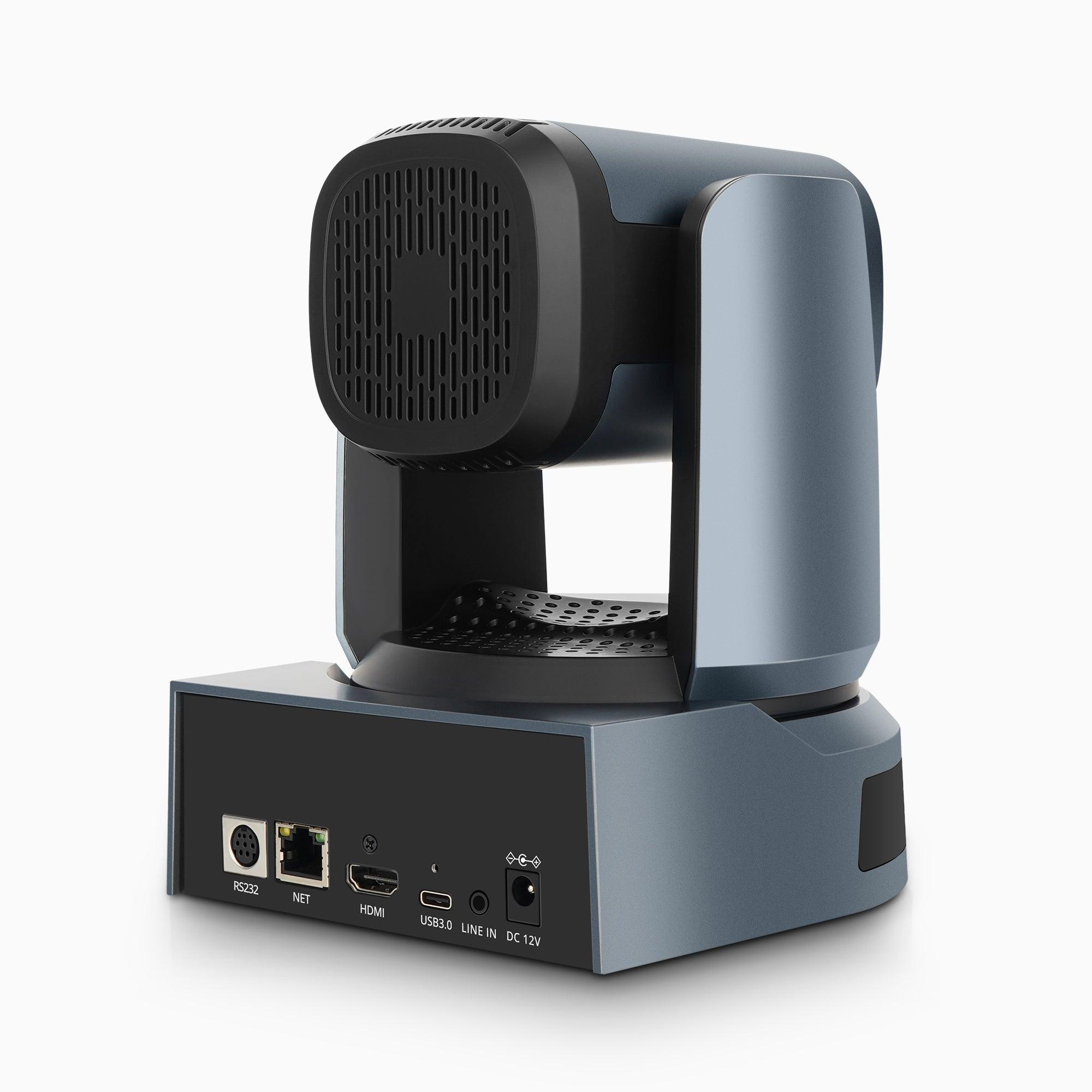

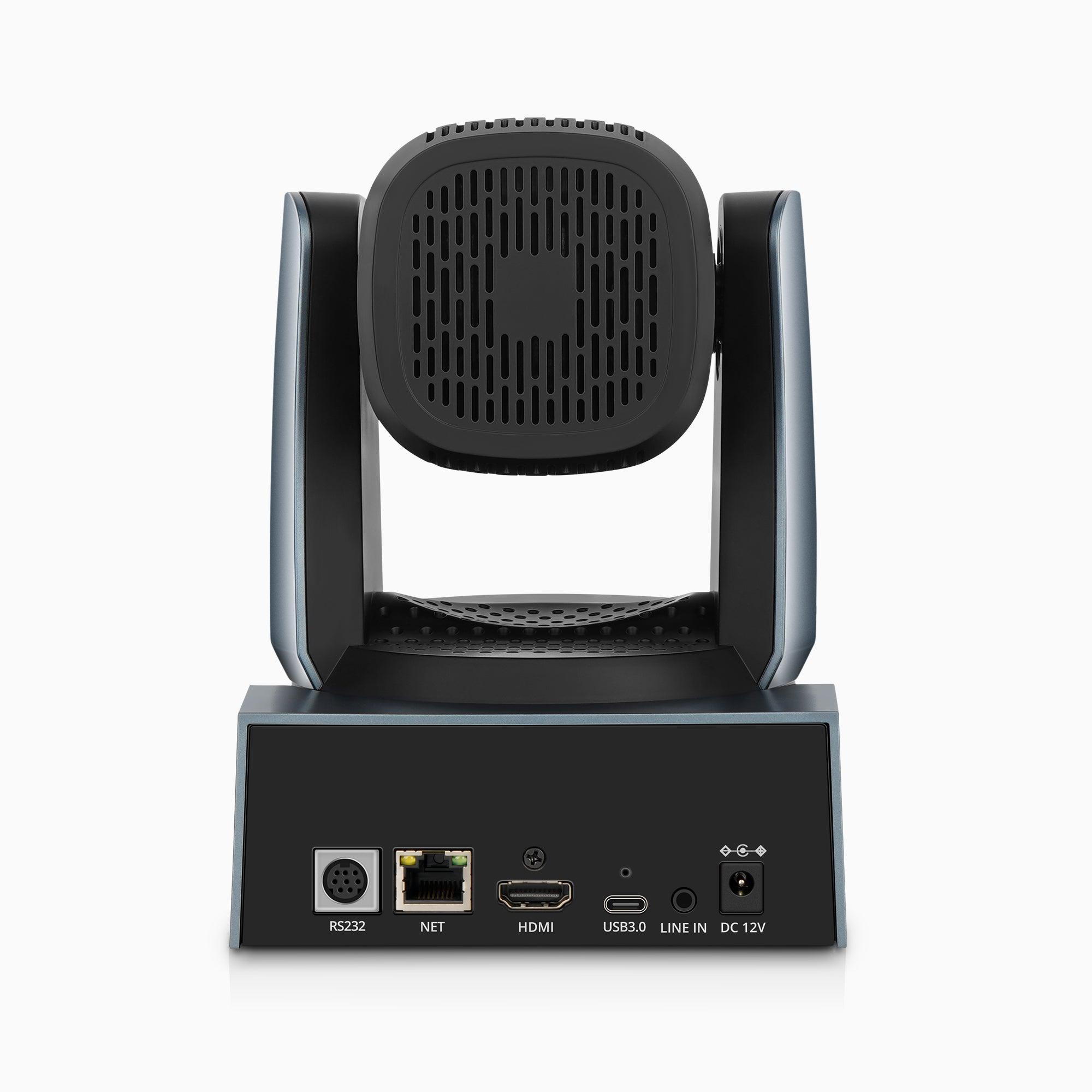

I/O
- USB: USB 3.0, TypeC* 1
- HD Output: HDMI 1.4b *1
- Network interface: RJ45：10M/100M *1
- Audio interface: Line In, 3.5mm *1
- Communication interface: RS232 In: *1
- Power connector: DC 12V / PoE(802.3af)
General specifications
- Input voltage: DC 12V / PoE(802.3af)
- Input current: 12V 1A
- Operating temperature: -10°C ~ 40°C
- Storage temperature: -40°C ~ 60°C
- power consumption: 12W
- Mean time between failures: >30000 hours
- size: 142mm*152mm*176mm
- net weight: 1.5Kg
