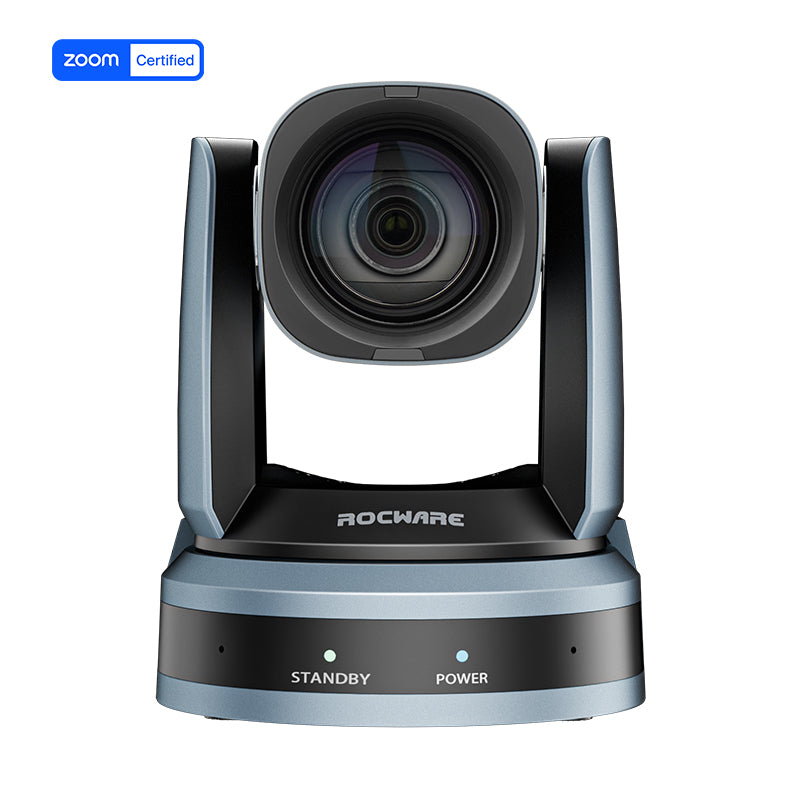

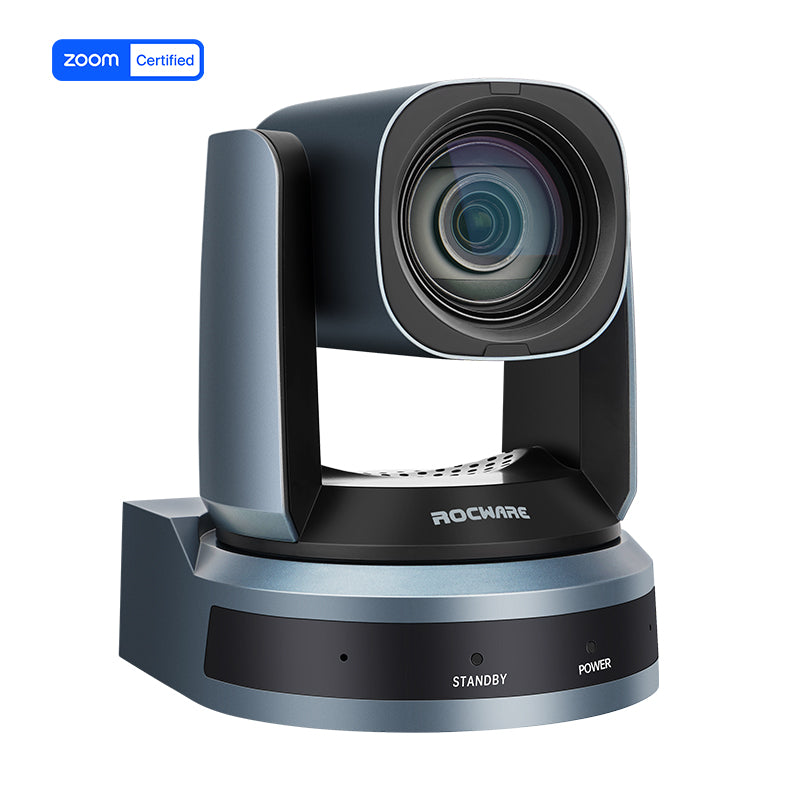

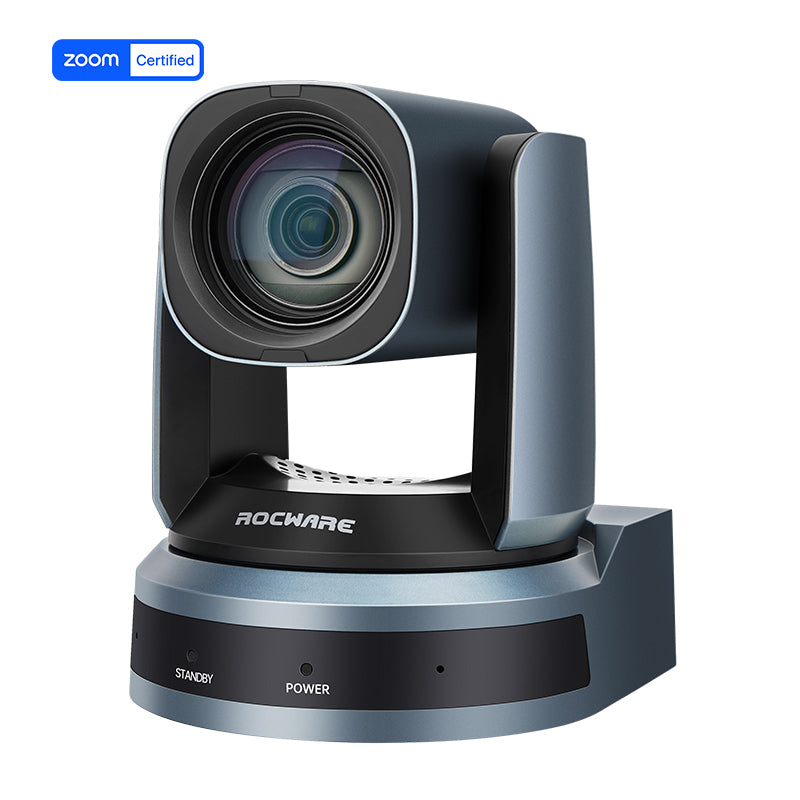

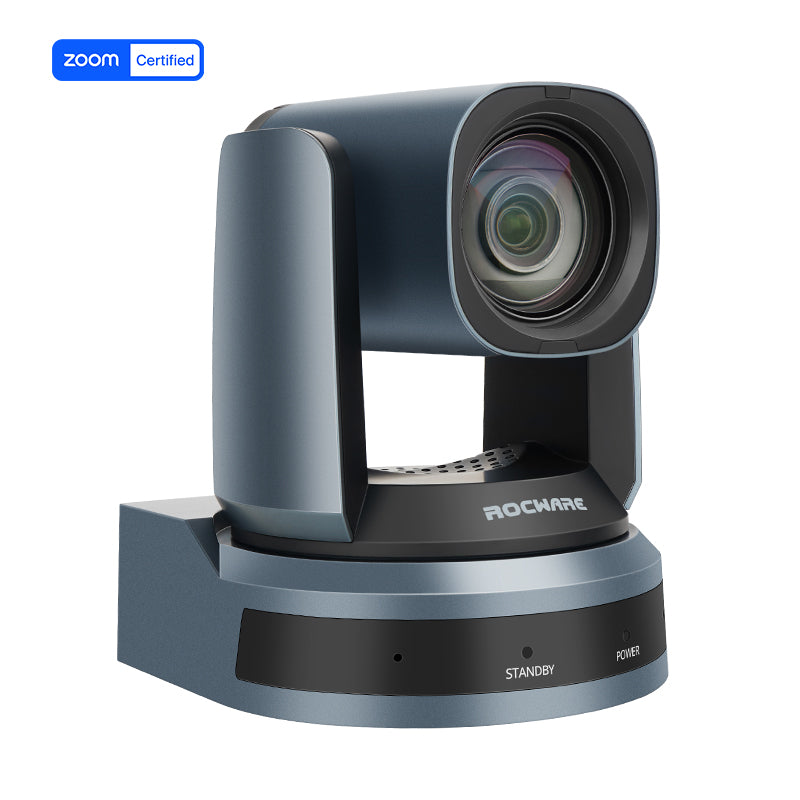

RC821U supports 12x optical zoom, the horizontal rotation range of the PTZ is close to 360°



Multiple power supply methods, support POE power supply, power adapter power supply and USB power supply.

Specifications
Camera
- Video System :1080P60, 1080P50, 1080P30, 1080P25, 720P60,720P50
- Sensor : 1/2.8'', CMOS, Effective Pixel: 2.07M
- Scanning Mode : Progressive
- Minimal Illumination : 0.5Lux @ (F1.8, AGC ON)
- Lens :12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
- Shutter : 1/30s ~ 1/10000s
- White Balance : Auto, 3000K/Indoor, 4000K,5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
- Backlight Compensation : Support
- Digital Noise Reduction : 2D&3D Digital Noise Reduction
- Video S/N : ≥55dB
- Horizontal Angle of View : 72.5° ~ 6.9°
- Vertical Angle of View : 44.8° ~ 3.9°
- Horizontal Rotation Range : ±170°
- Vertical Rotation Range : -30° ~ +90°
- Pan Speed Range : 2.7° ~ 35.7°/s
- Tilt Speed Range : 2.7° ~ 31.5°/s
- H & V Flip : Support
- Image Freeze : Support
- Number of Preset : 255
- Preset Accuracy : 0.1°

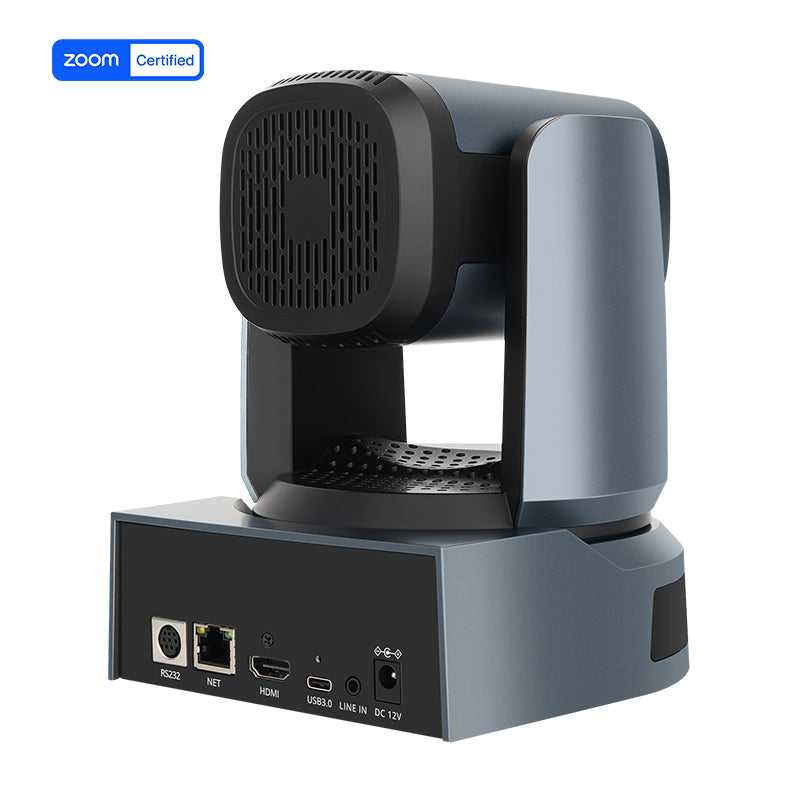

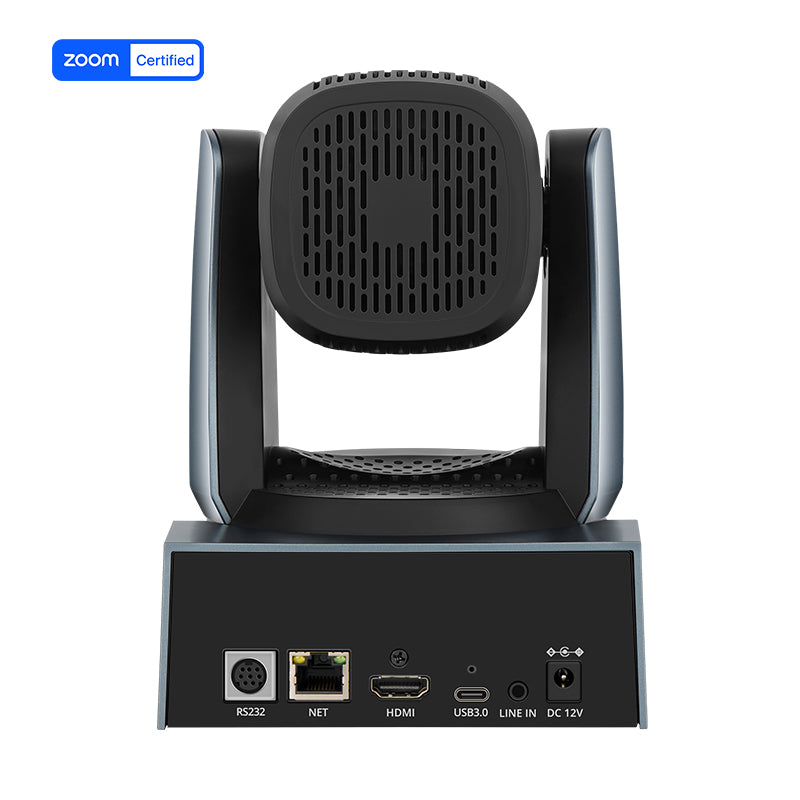

Input/Output Interface
- USB Interface : 1xUSB 3.0 , Type-C Jack
- HDMI Output interface : 1xHDMI1.4b
- Network Interface : 1xRJ45: 10M/100M Adaptive Ethernet
- Audio Interface : 1x Line In, 3.5mm Audio Interface, Line In
- Power Jack : JEITA type (DC IN 12V)/USB C type(DC IN 5V)
- Communication Interface : 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
USB Features
- Operate System : Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
- Color System /Compression : YUY2 / MJPEG / H.264
- Audio on USB : Support
- Video Format : YUY2 : Max1080P@60fps MJPEG: Max1080P@60fps H.264 : Max1080P@60fps
- USB Video Communication Protocol : UVC 1.1
- UVC PTZ Control : Support
IPC Features
- Video Compression : H.264/MJEPG
- Video Stream : Main Stream, Sub Stream
- Main Stream Resolution : 1920x1080,1280x720,1024x576,960x540,640x480,640x360
- Sub Stream Resolution : 1280x720,1024x576,
720x576(50Hz Support),
720x480(60HZ Support),720x408,
640x360,480x270,320x240,320x180 - Video Bit Rate : 32Kbps ~20480Kbps
- Bit Rate Type : Variable Rate, Fixed Rate
- Frame Rate : 50Hz: 1fps ~ 50fps,
60Hz: 1fps ~ 60fps - Audio Compression : AAC
- Audio Bit Rate : 96Kbps, 128Kbps, 256Kbps
- Support protocols : TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
General specification
- Input Voltage : DC 12V/DC 5V/PoE(802.3af)
- Input Current : 12V 1.0A(Max)/5V 1A(Max)
- Operating Temperature : -10°C ~ 40°C
- Power Consumption :12W (Max)
- Storage Temperature : -40°C ~ 60°C
- Size : 142*152*176mm
- Net Weight : 1.5kg
- MTBF : >30000H
