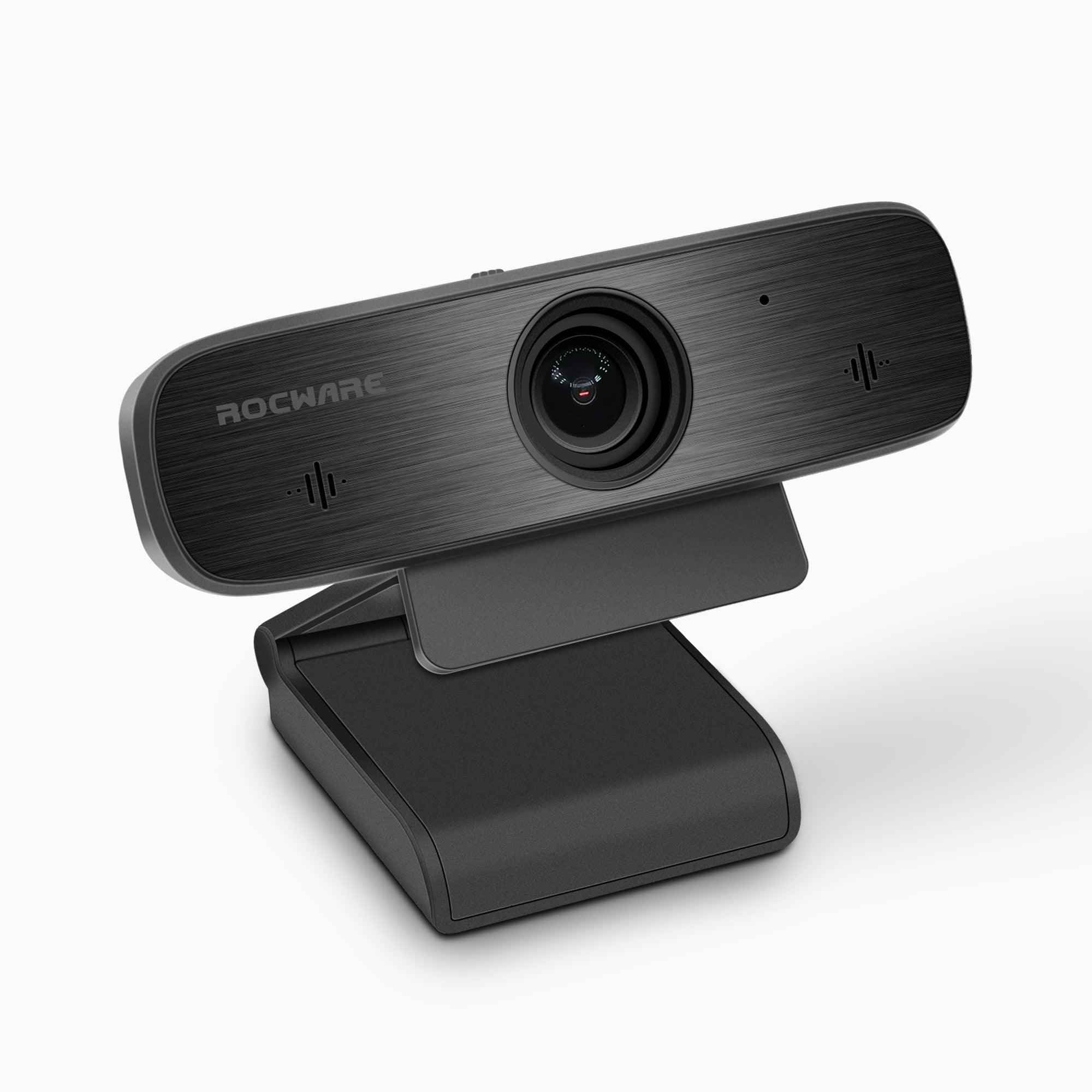

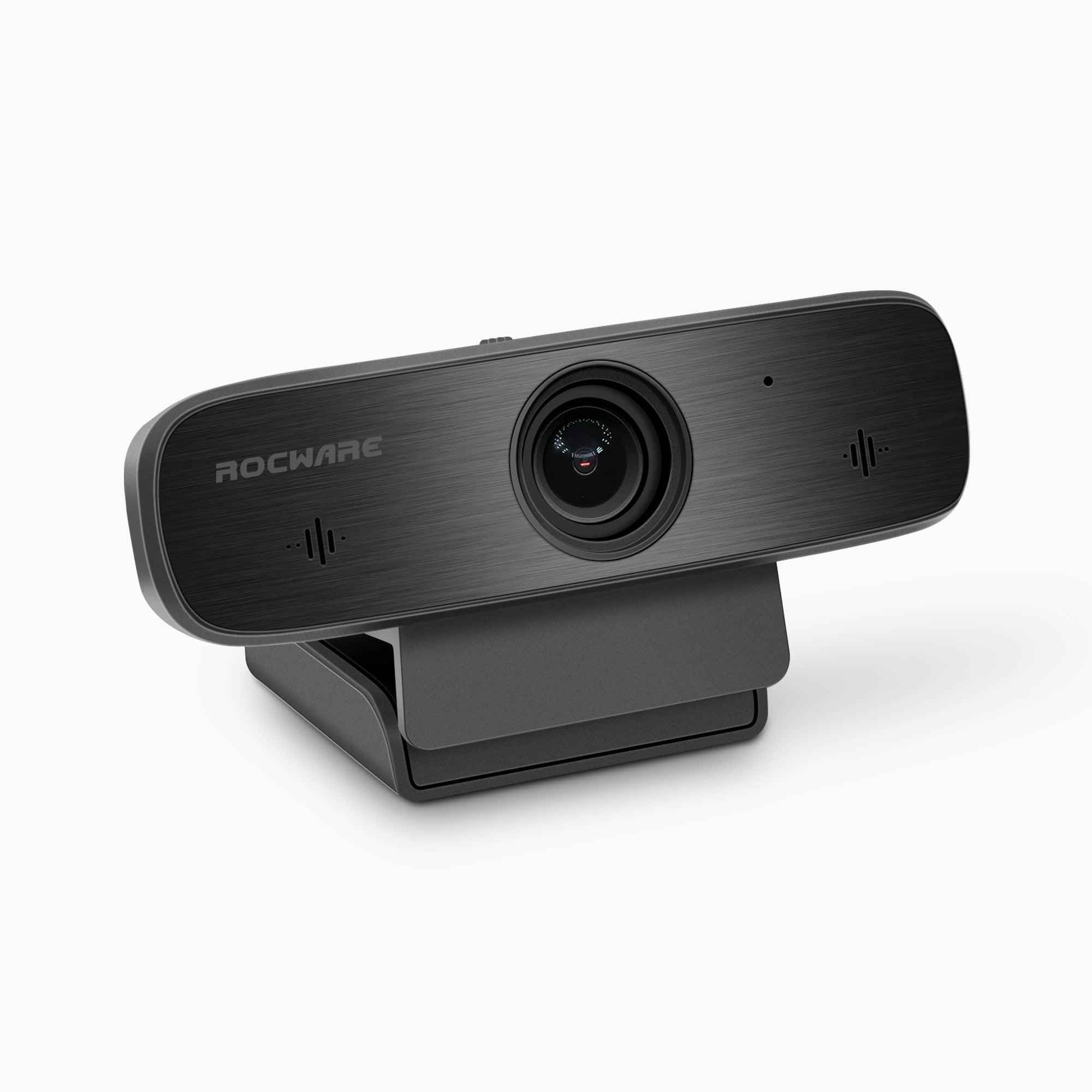

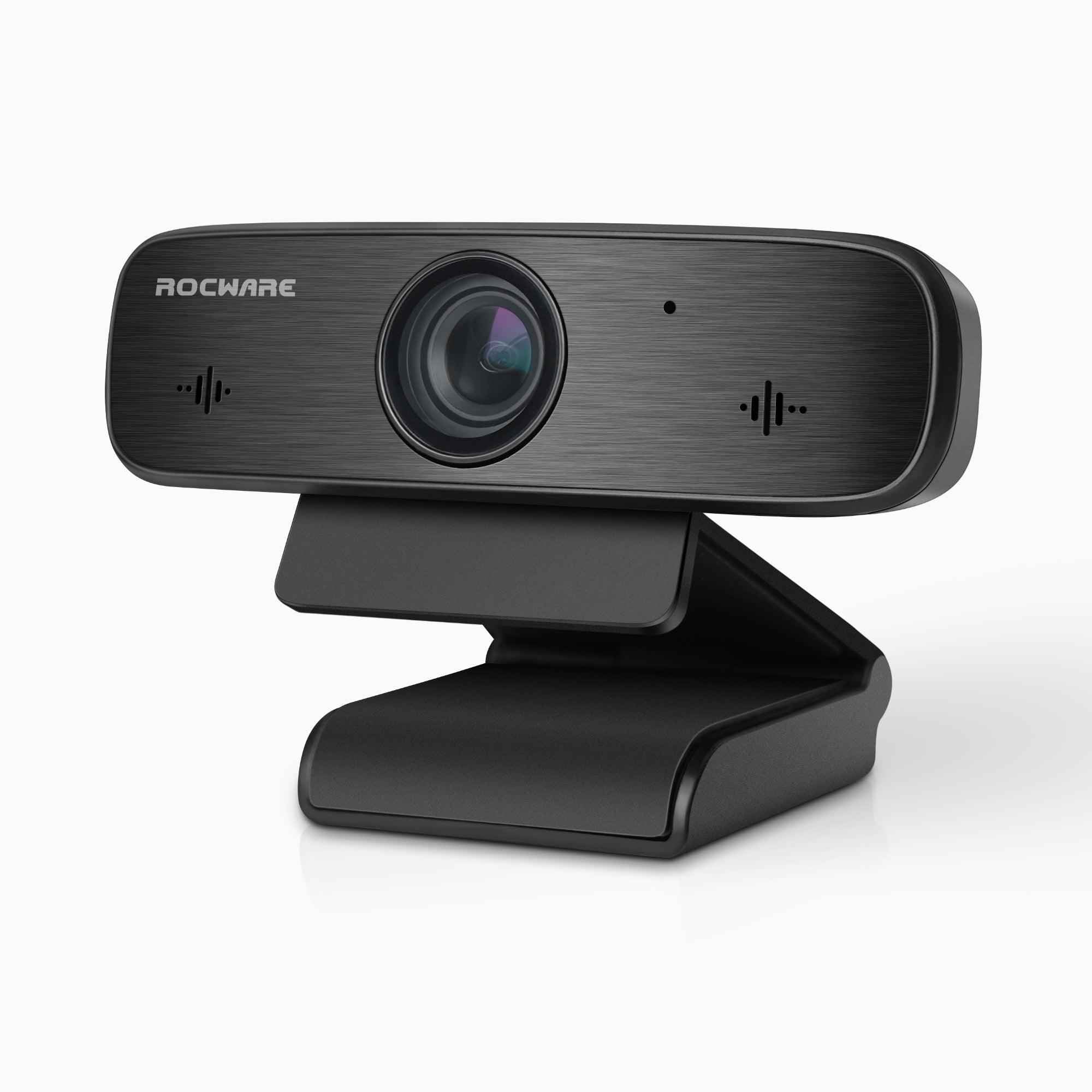

RC19 USB Camera with built-in privacy shelter and two streaming output(90°FoV)
ROCWARE RC19 is a new professional Full HD Conferences and Live Stream USB Camera.It has 90 degree FOV with large 1/2.7 inch high quality CMOS sensor,support autofocus and have a privacy cover.Built-in dual omnidirectional pickup microphones,unique noise suppression and AGC algorithm.In addition, it also supports electronic PTZ function,4x digital zoom
Pairs well with
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible.
Customer Support
support@rocware.com
Contact Us
sales@rocware.com
ROCWARE
We are a technology-focused company that makes the next-generation UC products. Our solutions are deeply rooted in our 16 years of Professional AV technologies and experience.
We can provide higher audio and video quality in our UC products for enterprises at a more competitive price to our customers thanks to your vertically integrated business model.
USB Webcam
RC19 is a high-performance USB camera specifically designed for small to medium-sized meeting rooms and personal office environments. It integrates a 1080P high-definition camera and a digital array microphone, combining audio and video experience in one device. Simply connect it to a large screen, computer, or other peripherals via USB to start a meeting. The unique sliding privacy cover allows you to close the lens at any time, ensuring participant privacy.
1080P High-definition Image
It uses a 2.07 million pixel high-quality CMOS image sensor, supporting a maximum 1080@30fps/25fps image encoding output. It is also backward compatible with resolutions such as 720p.
Distortion-free Wide Angle
With a wide field of view, the maximum horizontal field of view can reach 90°, capturing a broader range without distortion. The camera can be equipped with auto-focus (AF) functionality.
Electronic Pan-Tilt
Without the need for mechanical rotating devices, it achieves precise and noiseless pan-tilt functionality electronically, ensuring reliability and durability.
Full-Featured USB
Supporting a full-featured USB 2.0 interface, a single USB cable provides power, control, audio, and video transmission, making the wiring process simple.
Slide the privacy cover to protect your privacy
The camera is equipped with an integrated sliding privacy cover, allowing you to close the lens at any time to protect the privacy of participants.
6-meter Clear Audio Pickup
Featuring a built-in microphone array, it enables 360° omnidirectional audio pickup with a pickup range of up to 6 meters. It incorporates Rocware's unique noise suppression and Automatic Gain Control (AGC) algorithms, ensuring clear and natural voice communication.
Product Details
Camera
- Sensor:1/2.7'', CMOS, Effective Pixel
- Scanning Mode:Progressive
- Lens Mount:M12
- Lens :Focus
- Minimal Illumination:0.5 Lux @ (F2.0, AGC ON)
- Shutter:1/30s ~ 1/10000s
- White Balance: Auto, Manual,VAR
- Camera bracket: bracket with damper
- Privacy masking: Support
- Digital Noise Reduction: 2D,3D digital noise reduction
- Backlight Compensation : Support
- Digital zoom: 4X
Input/Output Interface
- USB Interface: 1xUSB 2.0
USB Features
- Operate System:Windows® 7 (1080p and under only), Windows 8.1, Windows 10 or higher macOS™ 10.10 or higherGoogle™ Chromebook™ Version 29.0.1547.70 or higher Linux
- Hardware Requirements:2.4 GHz Intel® Core 2 Duo processor or higher2 GB RAM or more USB 2.0 port
- Color System / Compression: YUY2 / H.264 / MJPEG
- Video Format: 1080p@30fps/25fps, 720p@30fps/25fps, 960x540p@30fps/25fps
- USB Video Communication Protocol: UVC 1.1
- UAC: Support
- UVC ePTZ: Support
General specification
- Input Voltage: 5V (USB power supply)
- Current Consumption: 200mA
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
- Power Consumption: 1W
- Size: 103mm*27mm*30mm
- Net Weight: 153g
- MTBF: 30000h
