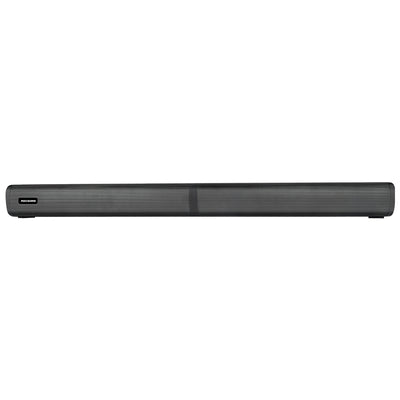

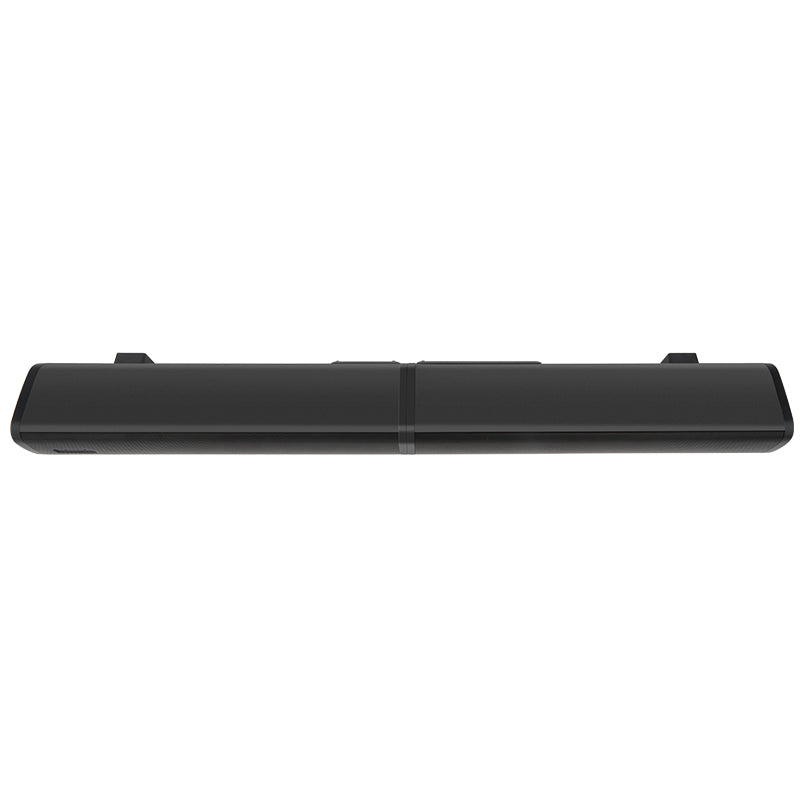

S22 Hi-Fi Speaker
S22 is a high-fidelity speaker specifically designed for large conference room settings. It utilizes digital decoding technology to achieve 5.1 channel audio playback, delivering a more immersive and realistic sound experience. With its built-in high-power speaker, it can provide ample volume to cover the entire venue.
Pairs well with
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible.
-
Customer Support
support@rocware.com
-
Contact Us
sales@rocware.com
-
ROCWARE
We are a technology-focused company that makes the next-generation UC products. Our solutions are deeply rooted in our 16 years of Professional AV technologies and experience.
We can provide higher audio and video quality in our UC products for enterprises at a more competitive price to our customers thanks to your vertically integrated business model.
The speaker's audio is professionally tuned by sound engineers, delivering deep and rich bass, full mid-range, and clear high tones, providing a comfortable listening experience.

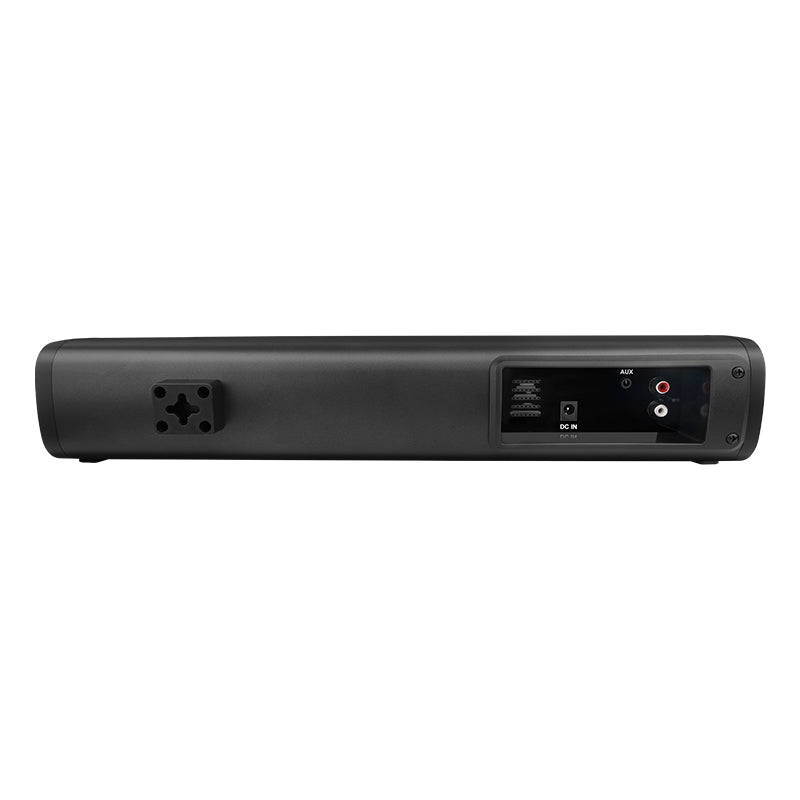

RCA Interface
Main and auxiliary audio can connect by RCA Interface.
Product Details
Speaker
- RMS Total Output Power :10W x2 + 15W x2(+/- 0.5 dB,10% THD)
- Impedance : 4Ω
- Frequency Response : 110Hz - 16kHz / ±3 dB
- Loudness : 50dB SPL @ 1W, 95dB SPL @ 7.5W
- Signal-to-noise Ratio : > 65 dB
- Total Harmonic Distortion : 200Hz–300Hz < 2.5%,
300Hz–10kHz < 1%@7.5W - Sampling Rate : 48 kHz

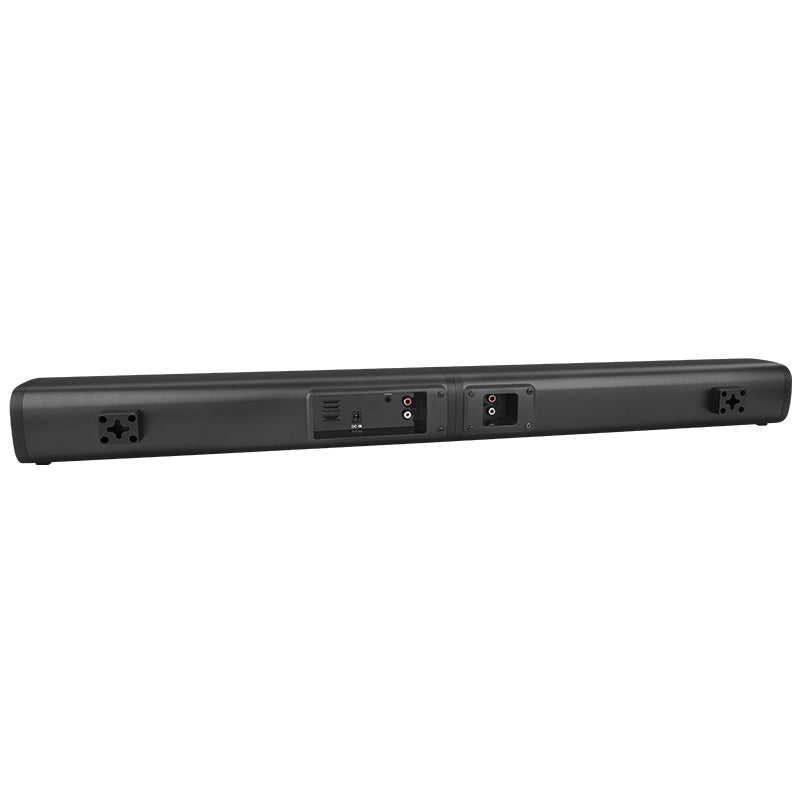

Input/Output Interface
- Audio Input : 1x Line In, 3.5mm Audio Interface
- RCA Interface : 1x RCA,Dual channel, (Connect the subspeaker)
- Power Interface : DC 18V
Installation Mode
- Stationary type : Wall mounting, Hanging mounting

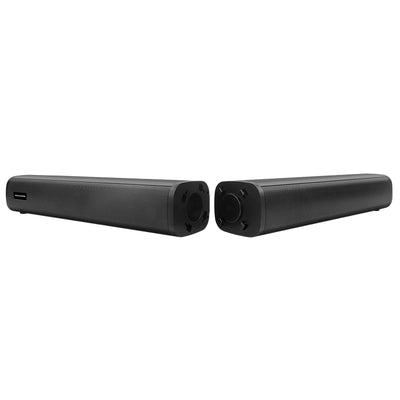

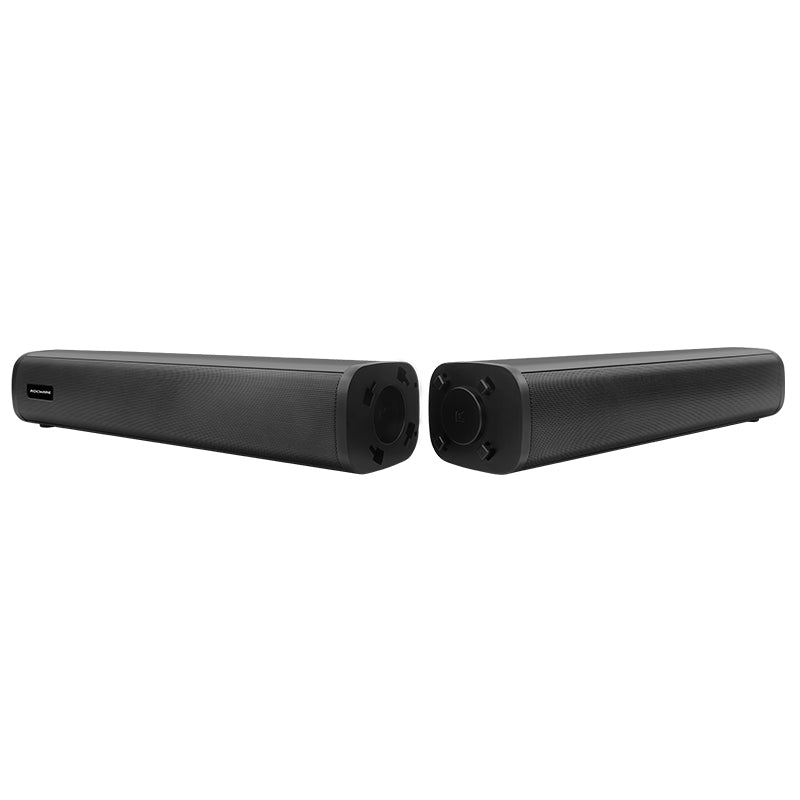

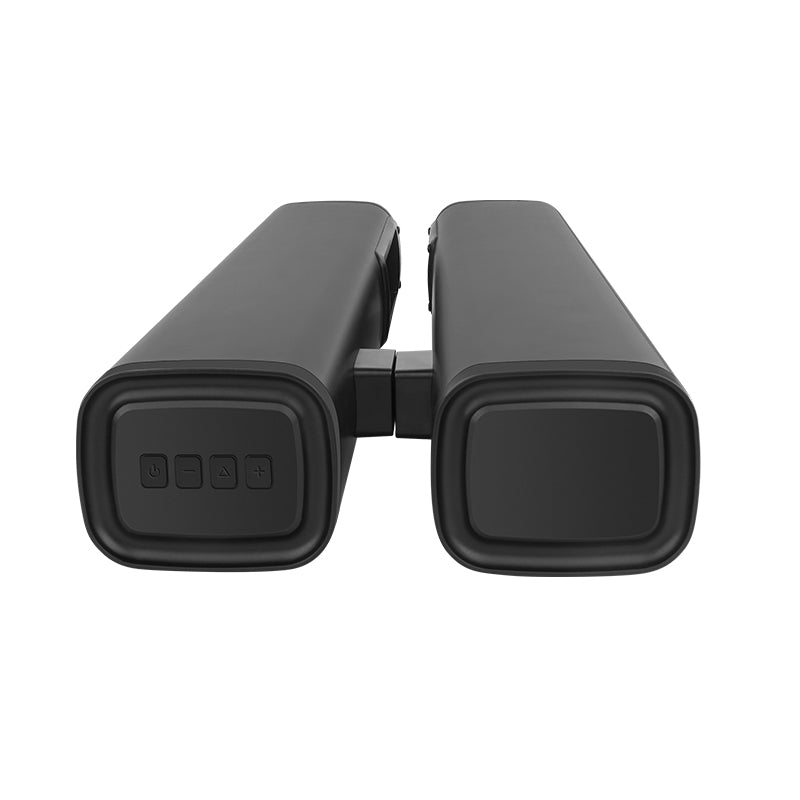

- Combined type : Split mounting, Stack mounting
General Specifications
- Input Voltage : DC 18V
- Input Current : 2A
- Operating Temperature : -10°C ~ 40°C (14°F ~ 104°F)
- Storage Temperature : -40°C ~ 60°C (-40°F ~ 140°F)
- Power Consumption : 30W
- MTBF : >30000H
- Main-speaker size : 408.5mm × 73mm × 90mm

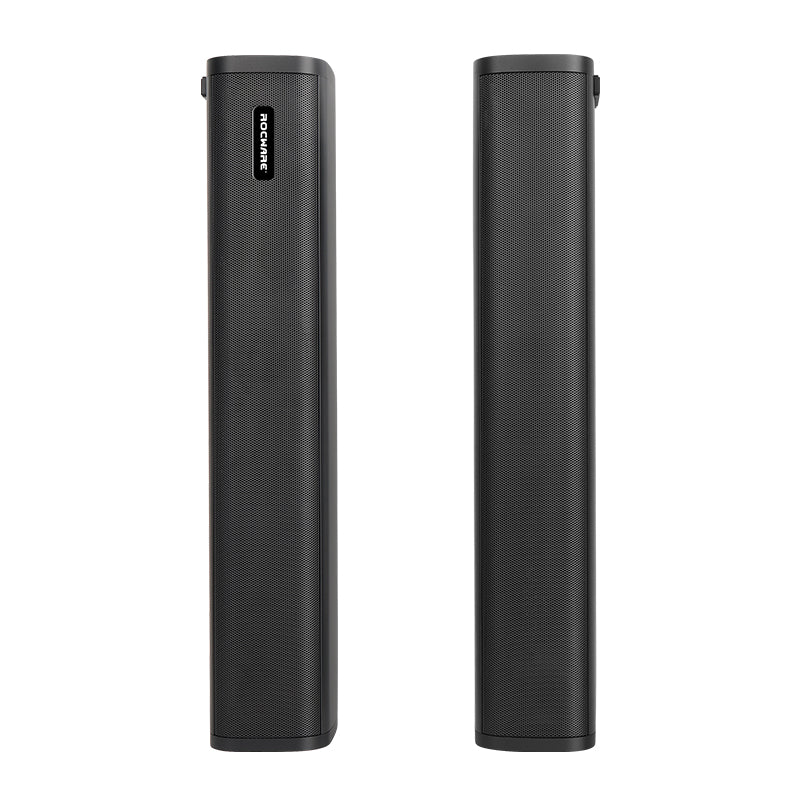

- Sub-speaker size : 402.5mm × 73mm × 90mm

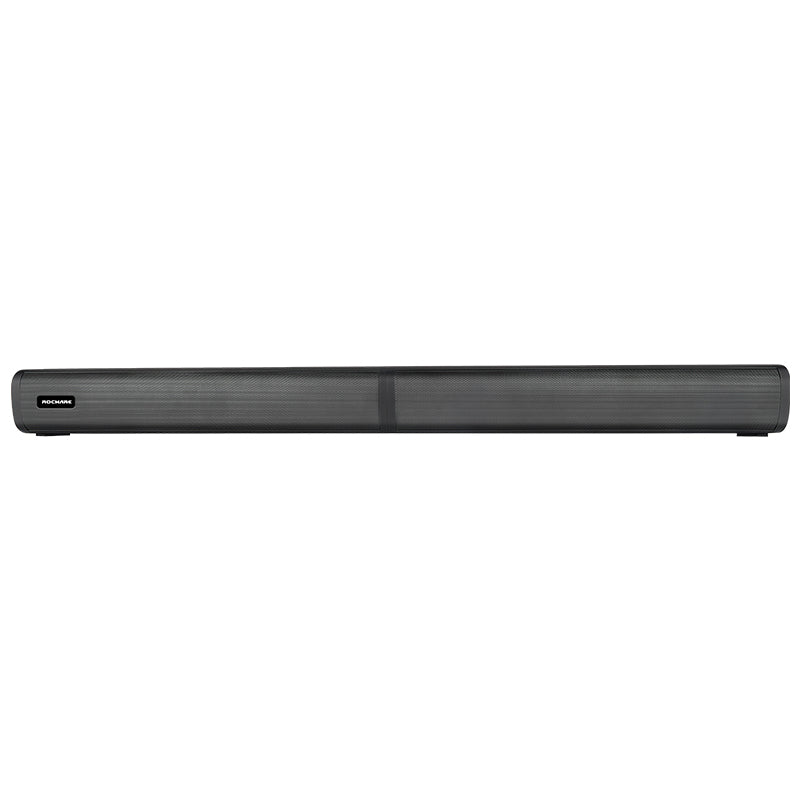

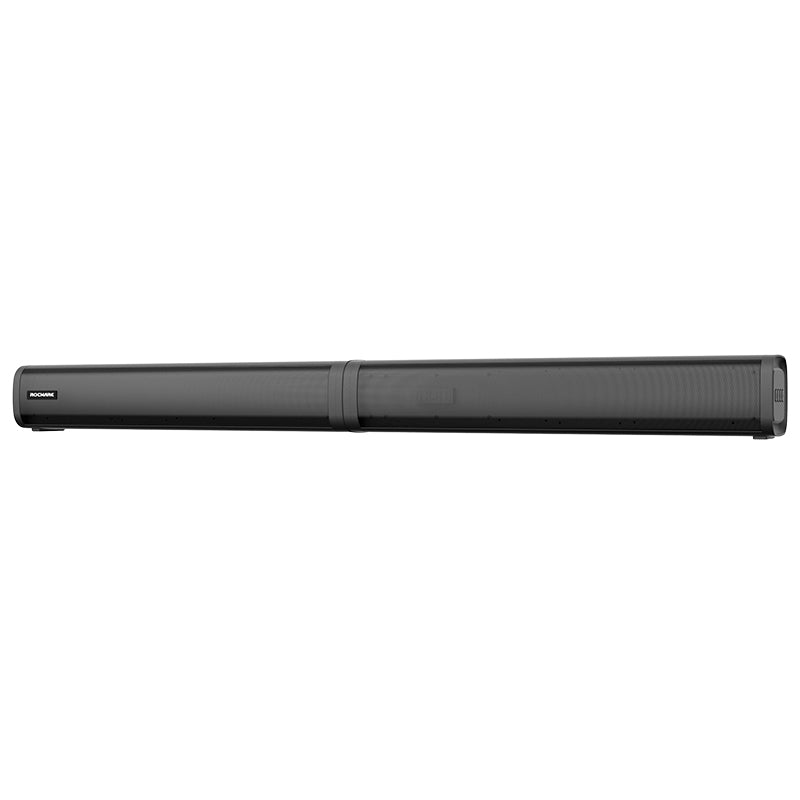

- Combined size : 805mm × 73mm × 90mm
- Net Weight : 1.5Kg ( 3.30 lb )
- Product certifcation : CE, GS, CB, FCC, ETL, SAA, RCM, PSE
